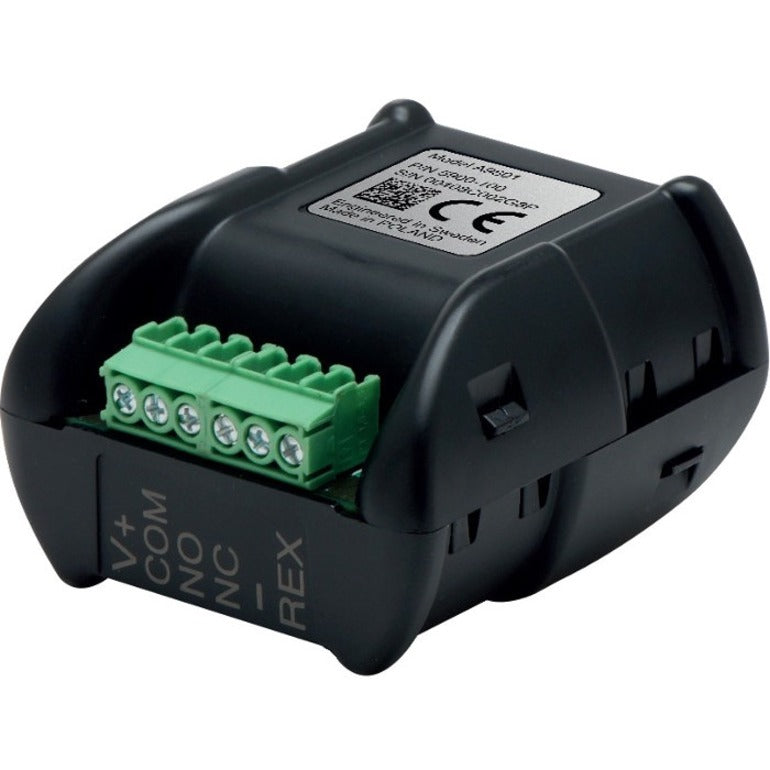

AXIS A9801 Security relay box offer an easy and cost efficient way to improve security for doors controlled by an Axis network video door station. The product bridges the connection between door station and door lock and is placed on the secure side of the door. If an intruder attempt to tamper with the door station to access the door lock wires AXIS A9801 Security relay will cut the connection and ensure that the door remains securely locked.

• Connectors: Terminal blocks

• On +/-: max. 12 V max. 750 mA
• On relay: max. 30 V DC max. 1.2 A

Max. Output Power:

• At 12 V 750 mA Input
• 12 V 730 mA
• 24 V 300 mA
