• Axis network video cameras
• Axis network video encoders

AXIS T8311 Video Surveillance Joystick:

• Height: 109 mm (4.3 in)
• Width: 182 mm (7.2 in)
• Depth: 181 mm (7.1in)

AXIS T8312 Video Surveillance Keypad:

• Height: 35 mm (1.4 in)
• Width: 182 mm (7.2 in)
• Depth: 181 mm (7.1in)

AXIS T8313 Video Surveillance Jog Dial:

• Height: 45mm (1.8 in)
• Width: 182 mm (7.2 in)
• Depth: 181 mm (7.1 in)

Modular control board for professional camera and video management

• Modular system
• Accurate control of PTZ cameras
• Professional design
• Durable quality
• Easy to install

Flexible options

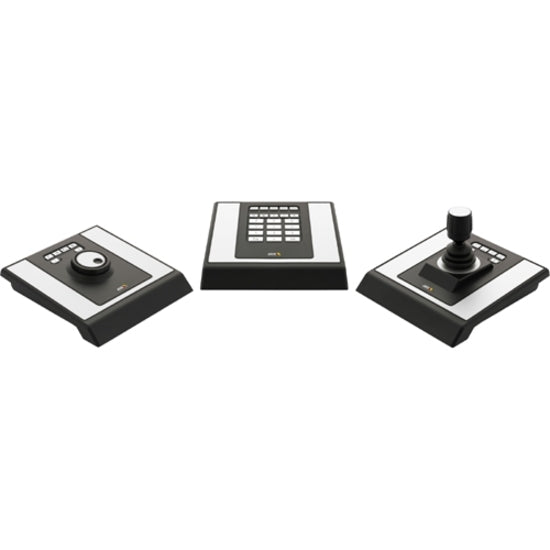

AXIS T8310 Video Surveillance Control Board is a modular system with three separate joystick keypad and jog dial units. The modular system allows the user to choose a simple solution such as only the joystick or a complete solution with all three modules for both camera and video management.

Quick navigation and accurate control

AXIS T8311 Video Surveillance Joystick gives responsive and accurate control of all Axis PTZ and PTZ dome network cameras. With AXIS T8312 Video Surveillance Keypad the user quickly navigates between workspaces cameras views and PTZ presets. AXIS T8313 Video Surveillance Jog Dial is used for navigating through recorded video.

All three units are constructed in durable materials and have a professional look and finish that adapt to a surveillance room design. The units are designed for both left hand and right hand use. AXIS T8311 Joystick is a 3-axis joystick with a turn knob and six application defined hotkeys. AXIS T8312 Keypad has ten application defined hotkeys and 12 preset keys. AXIS T8313 Jog Dial also has six application defined hotkeys as well as a navigation dial.

The units are easy to install with USB interface. When using the complete AXIS T8310 Control Board the modules are interconnected with the AXIS T8312 Keypad serving as a USB hub. AXIS T8310 Control Board is supported by AXIS Camera Station version 3.30 or higher.

• AXIS T8311 Video Surveillance Joystick
• 1 x USB cable 200 cm
• User's Guide
• AXIS T8312 Video Surveillance Keypad
• 1 x USB cable 40 cm
• 1 x USB cable 200 cm
• User's Guide
• AXIS T8313 Video Surveillance Jog Dial
• 1 x USB cable 40 cm
• 1 x USB cable 80 cm
• User's Guide

• Weight 730 g (1.6 lb)

• Weight 630 g (1.4 lb)

• Weight 630 g (1.4 lb)
