Axis Fixed cameras:

• M1025
• M1065-L
• M1124
• M1124-E
• M1125
• M1125-E
• M1145
• M1145-L
• M2025-LE
• M2026-LE Mk II
• P1214
• P1214-E
• P1224-E
• P1244
• P1245
• P1254
• P1264
• P1265
• P1275
• P1280-E
• P1364
• P1364-E
• P1365 Mk II
• P1365-E Mk II
• P1367
• P1367-E
• P1368-E
• P1435-LE
• P1447-LE
• P1448-LE
• P8535
• P8804
• Q1615 Mk II
• Q1615-E Mk II
• Q1635
• Q1635-E
• Q1645
• Q1647
• Q1659
• Q1765-LE
• Q1765-LE PT Mount

Axis Fixed dome cameras:

• M3014
• M3015
• M3016
• M3024-LVE
• M3025-VE
• M3026-VE
• M3027-PVE
• M3037-PVE
• M3044-V
• M3045-V
• M3046-V
• M3047-P
• M3048-P
• M3057-PLVE
• M3058-PLVE
• M3104-L
• M3104-LVE
• M3105-L
• M3105-LVE
• M3106-L Mk II
• M3106-LVE Mk II
• P3224-LV Mk II
• P3224-V Mk II
• P3225-LV Mk II
• P3225-LVE Mk II
• P3225-V Mk II
• P3225-VE Mk II
• P3227-LV
• P3227-LVE
• P3228-LV
• P3228-LVE
• P3367-V
• P3367-VE
• P3374-LV
• P3374-V
• P3375-LV
• P3375-LVE
• P3375-V
• P3375-VE
• P3707-PE
• Q3504-V
• Q3504-VE
• Q3505-SVE Mk II
• Q3505-V Mk II
• Q3505-VE Mk II
• Q3515-LV
• Q3515-LVE
• Q3517-LV
• Q3517-LVE
• Q3615-VE
• Q3617-VE
• Q3708-PVE
• Q3709-PVE
• Q8414-LVS

Axis Modular cameras:

• F34 Main Unit
• F34 Surveillance system
• F41 Main Unit
• F44 Dual Audio Input
• FA54 Main Unit

Axis PTZ cameras:

• M5054
• M5055
• M5065
• M5525-E
• P5414-E
• P5415-E
• P5624-E Mk II
• P5635-E Mk II
• Q6052
• Q6054 Mk II
• Q6055
• Q6115-E
• Q6124-E
• Q6128-E
• Q6155-E
• Q8641-E
• Q8642-E
• Q8685-E
• Q8685-LE
• Q8741-E
• Q8741-LE
• Q8742-E
• Q8742-LE

Axis Positioning units:

• T99A10 Positioning Unit 24 V AC/DC
• T99A11 Positioning Unit 24 V AC/DC

Axis Radar detectors:

• D2050-VE

Axis Thermal cameras:

• Q1941-E
• Q1941-E PT Mount
• Q1942-E
• Q1942-E PT Mount
• Q2901-E
• Q2901-E PT Mount

• Reuse Coax cables and benefit from PoE+
• Extra compact and easy to integrate
• Fits Axis encoder chassis for low installation costs
• Compact adapter fits easily into back boxes and housings
• Cost-effective power supply - two options available
• High-density solution

If you are using Axis video encoder blades with any Axis video encoder chassis in your current surveillance system AXIS T8648 PoE+ Over Coax Blade Compact Kits are the most efficient way to migrate to a network video solution - and keep your Coax cabling.

Compact and flexible

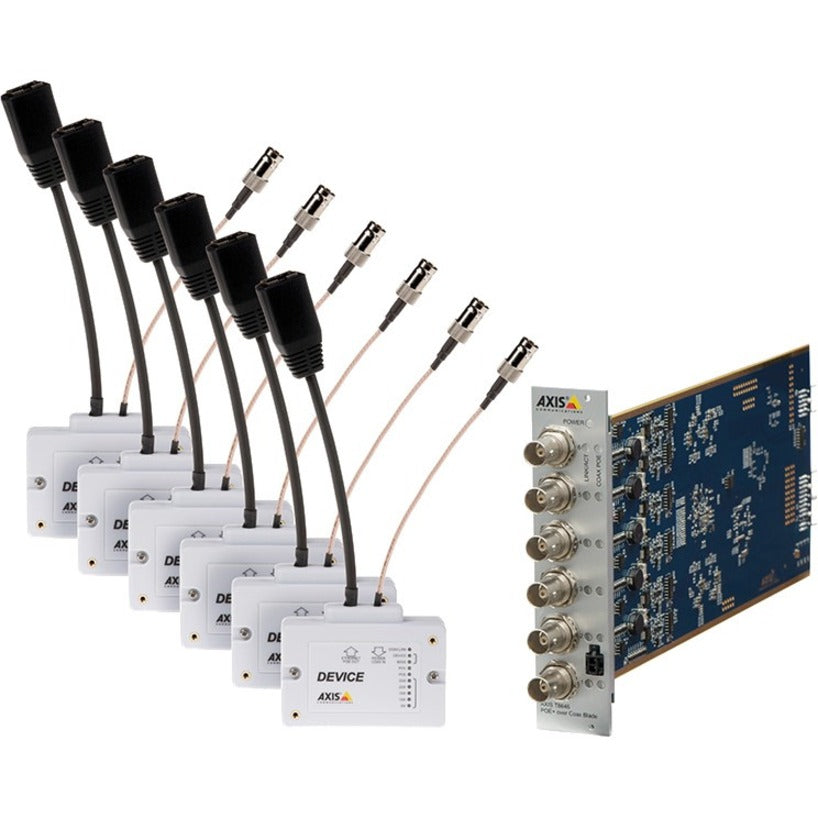

Each AXIS T8648 PoE+ Over Coax Blade Compact Kit comes with one AXIS T8646 PoE+ over Coax Blade and six extra-compact AXIS T8643 PoE+ over Coax Compact devices for six cameras. Because AXIS T8643 devices are extra compact it's especially easy to integrate them into your installations.

You already own the chassis

The six-channel blade kit can be used with any Axis video encoder chassis or an AXIS 291 1U Video Server Rack. You can simply pull out encoder blades that are no longer needed and replace them with AXIS T8646 PoE+ over Coax Blades. Installation costs are low because there's no need to purchase new chassis. And you can use any combination of encoder blades and PoE+ over Coax blades so you can migrate to IP at your own pace.

Let your Coax cables do double-duty

AXIS T8648 PoE+ Over Coax Blade Compact Kit lets you reuse hard-to-replace or long-range Coax cabling when you replace your analog cameras with Axis network cameras. And you can integrate Power over Ethernet over Coax for efficient power management. Range distances depend on the power required and the type of cable quality.

A compact - and powerful - solution

The Axis chassis acts as a network switch so you won't have to purchase and install separate switches. Simply connect AXIS T8646 PoE+ over Coax Blades to your choice of two Axis rack-mounted power supply solutions AXIS T8085 or AXIS T8082 for a compact and cost-effective modular installation. You can for example run up to 36 cameras using one 500-watt AXIS T8085 PS57 500W 1U power source. And you can connect to a backup power source for extra reliability. Or use AXIS T8082 PS57 Chassis 2KW 1U for even bigger installations. It consists of a power supply chassis that comes with two 1 KW power supply modules and has extra slots for two more 1K power supply modules. So the total possible effect is 4K with built-in redundancy.

• AXIS T8646: 270 g (0.6 lb)
• AXIS T8643: 110 g (0.24 lb)
