B&B 485 HIGH ENERGY SURGE PRO W/TB
B&B 485 HIGH ENERGY SURGE PRO W/TB
SKU: 1021102826 MFR: Advantech Co. Ltd
GTIN: 012303122419
Product Description
B&B 485 HIGH ENERGY SURGE PRO W/TB - Terminal Block
Manufacturer : Advantech Co. Ltd
Manufacturer Part No : 485HESP
Features
- Helps you reduce the repair cost for equipment
- Terminal Block receptacles protects your devices from electric power surges and spikes
Product Details
The Model 485HESP is designed to help protect against lightning strikes power surges and other types of voltage disturbances. Three RS-422/485 signals on terminal blocks are supported with a clamping voltage of approximately 6.8 volts. The 485HESP offers three stages of protection starting with a gas discharge tube followed by a series resistor and finally a Transient Voltage Suppresser (TVS). In order for a surge protector to work properly it is important to have a good connection to earth ground. The 485HESP offers two terminal posts and two metal mounting brackets which provide a good ground connection for the user. The 485HESP has been tested to two specifications at 6 kilovolts IEC 1000-4-5: 1995 "Surge Immunity Test" and IEEE C62.41-1991 "IEEE Recommended Practice on Surge Voltages in Low-Voltage AC Power Circuits". To ensure the best protection of your equipment some simple connection guidelines should be followed.
Out Of Stock
Update
Couldn't load pickup availability

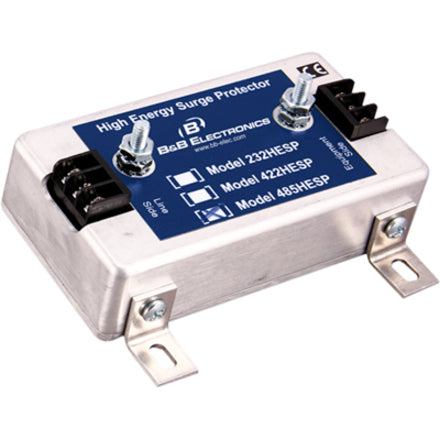

![B&B 485 HIGH ENERGY SURGE PRO W/TB](http://tekmentum.com/cdn/shop/files/1021102826.jpg?v=1695159417&width=1445)
B&B 485 HIGH ENERGY SURGE PRO W/TB - Terminal Block
Manufacturer : Advantech Co. Ltd
Manufacturer Part No : 485HESP
Features
- Helps you reduce the repair cost for equipment
- Terminal Block receptacles protects your devices from electric power surges and spikes
Product Details
The Model 485HESP is designed to help protect against lightning strikes power surges and other types of voltage disturbances. Three RS-422/485 signals on terminal blocks are supported with a clamping voltage of approximately 6.8 volts. The 485HESP offers three stages of protection starting with a gas discharge tube followed by a series resistor and finally a Transient Voltage Suppresser (TVS). In order for a surge protector to work properly it is important to have a good connection to earth ground. The 485HESP offers two terminal posts and two metal mounting brackets which provide a good ground connection for the user. The 485HESP has been tested to two specifications at 6 kilovolts IEC 1000-4-5: 1995 "Surge Immunity Test" and IEEE C62.41-1991 "IEEE Recommended Practice on Surge Voltages in Low-Voltage AC Power Circuits". To ensure the best protection of your equipment some simple connection guidelines should be followed.
