• IE-GIGA-MINIMC TX/LX- SM1310
    IE-GIGA-MINIMC TX/LX- SM1310
1 1

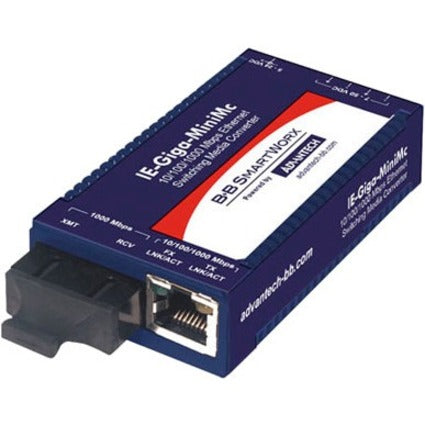

B+B SmartWorx 10/100/1000Mbps Miniature Media Converter

B+B SmartWorx 10/100/1000Mbps Miniature Media Converter

SKU: 1063829611      MFR: Advantech Co. Ltd

Product Description

B+B SmartWorx 10/100/1000Mbps Miniature Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Gigabit Ethernet - 10/100/1000Base-TX - Rail-mountable Wall Mountable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : IMC-370I-SE-PS

Features

  • Metal enclosure with compact size
  • Industrial grade design that supports an extended operating temperature range (IMC-370I series)
  • Provides status LED
  • Supports multiple power options: AC or DC adapter and dual USB cable
  • Supports Link Fault Pass Through (LFPT) (IMC-370I-SFP)
  • Centralized powered IMC-318I chassis

Product Details

Product TypeTransceiver/Media Converter
Ethernet TechnologyGigabit Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Product FamilyIMC-370I
Number of SC Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedSingle-mode
Total Number of Ports2
SC Port TypeDuplex
Brand NameB+B SmartWorx
Form FactorRail-mountable
Network Technology10/100/1000Base-TX
Maximum Distance Supported18.64 Mile
Power SourceAC/DC
Environmentally FriendlyYes
Environmental CertificationRoHS
Fiber Optic Wavelength1310 nm
Country of OriginTaiwan
Height0.8"
Width1.8"
Depth3.4"
Product SeriesIMC-370I
ManufacturerAdvantech Co. Ltd
Product ModelIMC-370I-SE-PS
Product Name10/100/1000Mbps Miniature Media Converter
Manufacturer Part NumberIMC-370I-SE-PS
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationThe IMC-370 series offers the most compact media converters. They can extend the 10 100 and 1000Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100/1000Mbps auto negotiation on the copper port and 1000Mbps full-duplex on the fiber port the IMC-370 series serves as a media and data rate converter.

The IMC-370I-SFP supports Link Fault Pass Through (LFPT) functionality which can be enabled/disabled by a DIP switch on the unit. This useful diagnostic feature assists the network administrator in indicating a fault condition on a given segment between the interfaces.

The IMC-370I supports plug-n-play functionality auto negotiation and AutoCross operation. It can be powered by AC/DC power dual USB cable or via installation in a centrally-powered media converter chassis.
Package Contents
  • 10/100/1000Mbps Miniature Media Converter
  • Power Adapter
Weight (Approximate)11.18 oz
View full details
$562.99 USD
$562.99
Sale Sold out

Back Order

Get it by Mon, Jul 27 - Sat, Aug 01


Update


Shipping calculated at checkout.

B+B SmartWorx 10/100/1000Mbps Miniature Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Gigabit Ethernet - 10/100/1000Base-TX - Rail-mountable Wall Mountable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : IMC-370I-SE-PS

Features

  • Metal enclosure with compact size
  • Industrial grade design that supports an extended operating temperature range (IMC-370I series)
  • Provides status LED
  • Supports multiple power options: AC or DC adapter and dual USB cable
  • Supports Link Fault Pass Through (LFPT) (IMC-370I-SFP)
  • Centralized powered IMC-318I chassis

Product Details

Product TypeTransceiver/Media Converter
Ethernet TechnologyGigabit Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Product FamilyIMC-370I
Number of SC Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedSingle-mode
Total Number of Ports2
SC Port TypeDuplex
Brand NameB+B SmartWorx
Form FactorRail-mountable
Network Technology10/100/1000Base-TX
Maximum Distance Supported18.64 Mile
Power SourceAC/DC
Environmentally FriendlyYes
Environmental CertificationRoHS
Fiber Optic Wavelength1310 nm
Country of OriginTaiwan
Height0.8"
Width1.8"
Depth3.4"
Product SeriesIMC-370I
ManufacturerAdvantech Co. Ltd
Product ModelIMC-370I-SE-PS
Product Name10/100/1000Mbps Miniature Media Converter
Manufacturer Part NumberIMC-370I-SE-PS
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationThe IMC-370 series offers the most compact media converters. They can extend the 10 100 and 1000Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100/1000Mbps auto negotiation on the copper port and 1000Mbps full-duplex on the fiber port the IMC-370 series serves as a media and data rate converter.

The IMC-370I-SFP supports Link Fault Pass Through (LFPT) functionality which can be enabled/disabled by a DIP switch on the unit. This useful diagnostic feature assists the network administrator in indicating a fault condition on a given segment between the interfaces.

The IMC-370I supports plug-n-play functionality auto negotiation and AutoCross operation. It can be powered by AC/DC power dual USB cable or via installation in a centrally-powered media converter chassis.
Package Contents
  • 10/100/1000Mbps Miniature Media Converter
  • Power Adapter
Weight (Approximate)11.18 oz
