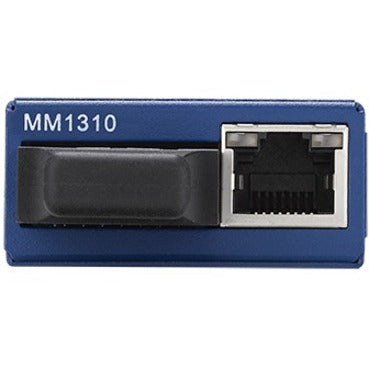

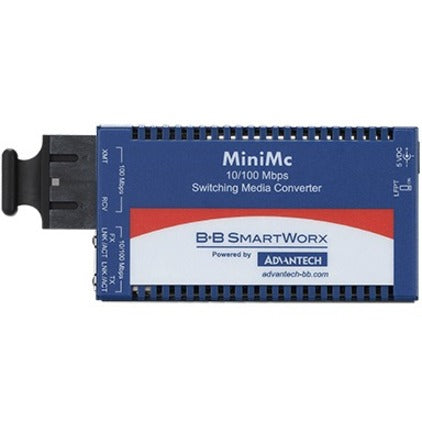

B+B SmartWorx 10/100Mbps Miniature Media Converter with LFPT

B+B SmartWorx 10/100Mbps Miniature Media Converter with LFPT

SKU: 1060182603      MFR: Advantech Co. Ltd

Product Description

B+B SmartWorx 10/100Mbps Miniature Media Converter with LFPT - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Fast Ethernet - 100Base-TX 100Base-FX - Rail-mountable Wall Mountable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : IMC-350-SST-PS-A

Features

  • Metal enclosure with compact size
  • Industrial grade design that supports an extended operating temperature (IMC-350I series)
  • IEEE802.3af compliant (IMC-350I series as PoE-PD)
  • Supports Link Fault Pass Through (LFPT)
  • Centralized powered IMC-318I chassis

Product Details

Weight (Approximate)11.18 oz
Package Contents
  • 10/100Mbps Miniature Media Converter with LFPT
  • Power Adapter
Power SourceAC Adapter
Packaged Quantity1
Maximum Distance Supported12.43 Mile
Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Media Type SupportedTwisted Pair
Total Number of Ports2
SC Port TypeDuplex
Fiber Optic Wavelength1310 nm
PoE Port TypePD
Country of OriginTaiwan
Height0.8"
Width1.8"
Depth3.4"
Product SeriesIMC-350
Brand NameB+B SmartWorx
Form FactorRail-mountable
ManufacturerAdvantech Co. Ltd
Product Name10/100Mbps Miniature Media Converter with LFPT
Network Technology100Base-TX
Manufacturer Part NumberIMC-350-SST-PS-A
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationThe IMC-350 series offers the most compact media converters. They can extend the 10 and 100Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100 auto negotiation on the copper port and 100Mbps full-duplex on the fiber port the IMC-350 series serves as media and data rate converter.

Plug-and-play operation with a variety of model types and power options make the IMC-350 series easy and convenient to use. The IMC-350I series is of industrial grade and can operate in a wide temperature range. Multiple power options including the IEEE802.3af Power-over-Ethernet standard allow the IMC-350I series to function as a power device. Its AC adapter and USB connectivity offer unsurpassed flexibility for a variety of installation needs.

The IMC-350 series supports Link Fault Pass Through (LFPT) functionality. LFPT is a troubleshooting feature that combines TX LinkLoss (Twisted Pair copper interface) and FX LinkLoss (Fiber fiber interface) from both local and remote IMC Networks media converters when used in pairs. This feature when enabled will pass a link fault through the device at each segment. If a link fails on one interface of the media converter the media converter will force the link down on its link partner and then forward it to the next interface.
Product FamilyIMC-350
View full details
$276.99 USD
$276.99
Sale Sold out

Back Order

Get it by Mon, Jul 27 - Sat, Aug 01


Update


Shipping calculated at checkout.

B+B SmartWorx 10/100Mbps Miniature Media Converter with LFPT - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Fast Ethernet - 100Base-TX 100Base-FX - Rail-mountable Wall Mountable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : IMC-350-SST-PS-A

Features

  • Metal enclosure with compact size
  • Industrial grade design that supports an extended operating temperature (IMC-350I series)
  • IEEE802.3af compliant (IMC-350I series as PoE-PD)
  • Supports Link Fault Pass Through (LFPT)
  • Centralized powered IMC-318I chassis

Product Details

Weight (Approximate)11.18 oz
Package Contents
  • 10/100Mbps Miniature Media Converter with LFPT
  • Power Adapter
Power SourceAC Adapter
Packaged Quantity1
Maximum Distance Supported12.43 Mile
Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Media Type SupportedTwisted Pair
Total Number of Ports2
SC Port TypeDuplex
Fiber Optic Wavelength1310 nm
PoE Port TypePD
Country of OriginTaiwan
Height0.8"
Width1.8"
Depth3.4"
Product SeriesIMC-350
Brand NameB+B SmartWorx
Form FactorRail-mountable
ManufacturerAdvantech Co. Ltd
Product Name10/100Mbps Miniature Media Converter with LFPT
Network Technology100Base-TX
Manufacturer Part NumberIMC-350-SST-PS-A
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationThe IMC-350 series offers the most compact media converters. They can extend the 10 and 100Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100 auto negotiation on the copper port and 100Mbps full-duplex on the fiber port the IMC-350 series serves as media and data rate converter.

Plug-and-play operation with a variety of model types and power options make the IMC-350 series easy and convenient to use. The IMC-350I series is of industrial grade and can operate in a wide temperature range. Multiple power options including the IEEE802.3af Power-over-Ethernet standard allow the IMC-350I series to function as a power device. Its AC adapter and USB connectivity offer unsurpassed flexibility for a variety of installation needs.

The IMC-350 series supports Link Fault Pass Through (LFPT) functionality. LFPT is a troubleshooting feature that combines TX LinkLoss (Twisted Pair copper interface) and FX LinkLoss (Fiber fiber interface) from both local and remote IMC Networks media converters when used in pairs. This feature when enabled will pass a link fault through the device at each segment. If a link fails on one interface of the media converter the media converter will force the link down on its link partner and then forward it to the next interface.
Product FamilyIMC-350
