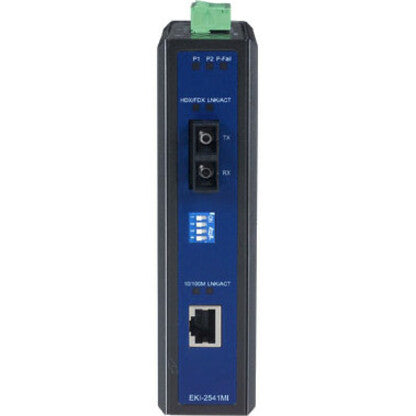

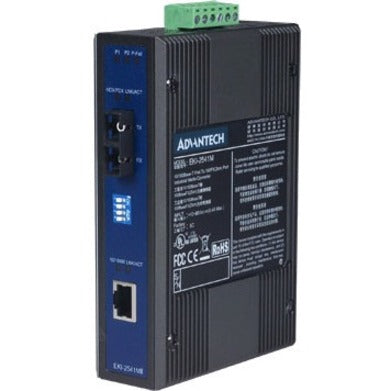

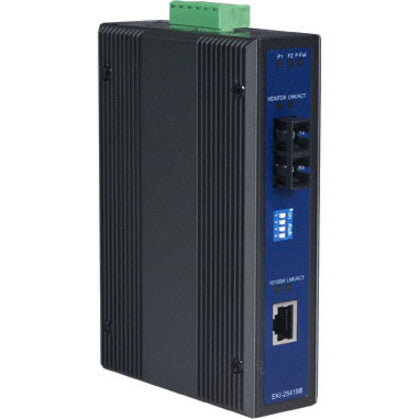

B+B SmartWorx 10/100T (X) to Multi-Mode SC Type Fiber Optic Industrial Media Converter

B+B SmartWorx 10/100T (X) to Multi-Mode SC Type Fiber Optic Industrial Media Converter

SKU: 1046480060      MFR: Advantech Co. Ltd

Product Description

B+B SmartWorx 10/100T (X) to Multi-Mode SC Type Fiber Optic Industrial Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - Fast Ethernet - 10/100Base-TX 100Base-FX - Rail-mountable Panel-mountable Wall Mountable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : EKI-2541MI-AE

Features

  • Provides 1 x 10/100 Mbps Ethernet port with RJ45 connector
  • Provides 1 x 100 Mbps Multi-mode/Single-mode SC type fiber port
  • Provides internal jumper for Link Fault Pass-through (LFP) setting
  • Supports full/half duplex flow control
  • Supports store and forward transmission
  • Supports Auto-negotiation
  • Supports MDI/MDI-X auto-crossover
  • Supports redundant 12-48 VDC power input
  • Provides flexible mounting: DIN-rail and Panel mount
  • Supports wide operating temperatures from -40 to 75°C (EKI-2541MI/SI)

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Fiber Optic Cable Standard50/125 µm
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedMulti-mode
Total Number of Ports2
SC Port TypeDuplex
Fiber Optic Wavelength1310 nm
Country of OriginTaiwan
Height5.5"
Width1.5"
Depth3.7"
Brand NameB+B SmartWorx
Form FactorRail-mountable
ManufacturerAdvantech Co. Ltd
Product ModelEKI-2541MI
Product Name10/100T (X) to Multi-Mode SC Type Fiber Optic Industrial Media Converter
Network Technology10/100Base-TX
Manufacturer Part NumberEKI-2541MI-AE
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationThe EKI-2541M/2541S is designed to convert Ethernet networks to fiber networks by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide bandwidth EMI immunity and long-distance transmissions.Therefore the EKI-2541M/2541S is an ideal solution for "fiber to building" applications at central offices or local sites. EKI-2541M/2541S supports MDI/MDIX auto detection so you don't need to use crossover wires. Furthermore the EKI-2541M/2541S can work normally from -10 to 60°C and accepts a wide voltage range from 12 ~ 48 V DC . Besides it also provides 3000 V DC surge (EFT) protection against over-voltage so it is suitable for harsh operating environments.

Link Fault Pass-Through (LFP)

The EKI-2541M/2541S is an enhanced Ethernet to fiber-optic converter. Aside from its standard features the versatile the EKI-2541M/2541S also has the LFP (Link Fault Pass-through) feature. When one side of the link fails the other side continues transmitting packets and waiting for a response that never arrives from the disconnected side. Use the internal jumper to enable the LFP function then the EKI-2541M/2541S will force the link to shut down as soon as noticed that the other link has failed giving the application software a chance to react to the situation.
Maximum Distance Supported1.24 Mile
Power SourceDC
Limited Warranty5 Year
Fiber Optic Cable Standard62.5/125 µm
Environmental CertificationWEEE
