• B+B SmartWorx 240W Single Output Industrial DIN RAIL With PFC Function
    B+B SmartWorx 240W Single Output Industrial DIN RAIL With PFC Function
1 1

B+B SmartWorx 240W Single Output Industrial DIN RAIL With PFC Function

B+B SmartWorx 240W Single Output Industrial DIN RAIL With PFC Function

SKU: 1069839165      MFR: Advantech Co. Ltd

Product Description

B+B SmartWorx 240W Single Output Industrial DIN RAIL With PFC Function - DIN Rail - 120 V AC 230 V AC 370 V DC Input - 48 V DC Output - 240 W - 94% Efficiency

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : BB-SDR-240-48

Features

  • High efficiency 94% low power dissipation
  • 150% peak load capability
  • Built-in active PFC function PF>0.93
  • Protections: Short-circuit Overload Over-voltage Over-temperature
  • Free air convection cooling
  • DIN rail mountable TS-35/7.5 or 15
  • UL508 approved (industrial control equipment)
  • EN61000-6-2 (EN50082-2) industrial immunity level
  • Built-in DC OK relay contact
  • 100% full-load burn-in test

Product Details

Product TypePower Supply
Product FamilyMeanWell SDR-240
Brand NameB+B SmartWorx
Form FactorDIN Rail
Efficiency94%
Input Voltage120 V AC
Input Voltage230 V AC
Input Voltage370 V DC
Output Power240 W
Output Voltage48 V DC
Environmentally FriendlyYes
Environmental CertificationRoHS
Country of OriginTaiwan
Height4.9"
Width2.5"
Depth4.5"
Product SeriesSDR-240
Output Current5 A
ManufacturerAdvantech Co. Ltd
Product ModelSDR-240-48
Product Name240W Single Output Industrial DIN RAIL With PFC Function
Product LineMeanWell
Manufacturer Part NumberBB-SDR-240-48
Manufacturer Website Addresshttp://www.advantech.com
Marketing Information

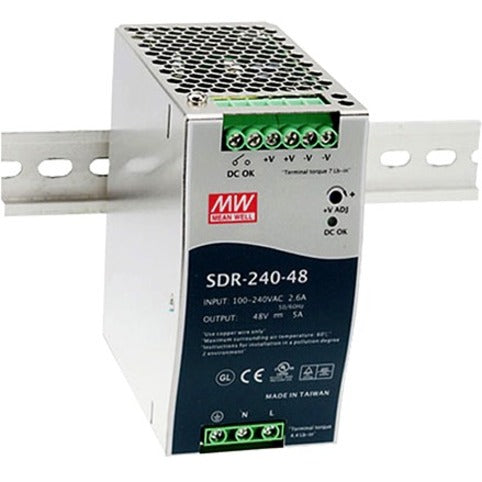

Model SDR-240-48 power supply is enclose in a DIN rail mountable case with touch-guard screw terminals and features universal input single output power-on LED display built-in active PFC function DC OK relay contact and peak load capability. The power supply protects against short circuit overvoltage and overload by current limiting (hiccup after 3s).
Packaged Quantity12
Package Contents
  • 240W Single Output Industrial DIN RAIL With PFC Function
  • Touch-guard Screw Terminals
Limited Warranty3 Year
View full details
$270.99 USD
$270.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

B+B SmartWorx 240W Single Output Industrial DIN RAIL With PFC Function - DIN Rail - 120 V AC 230 V AC 370 V DC Input - 48 V DC Output - 240 W - 94% Efficiency

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : BB-SDR-240-48

Features

  • High efficiency 94% low power dissipation
  • 150% peak load capability
  • Built-in active PFC function PF>0.93
  • Protections: Short-circuit Overload Over-voltage Over-temperature
  • Free air convection cooling
  • DIN rail mountable TS-35/7.5 or 15
  • UL508 approved (industrial control equipment)
  • EN61000-6-2 (EN50082-2) industrial immunity level
  • Built-in DC OK relay contact
  • 100% full-load burn-in test

Product Details

Product TypePower Supply
Product FamilyMeanWell SDR-240
Brand NameB+B SmartWorx
Form FactorDIN Rail
Efficiency94%
Input Voltage120 V AC
Input Voltage230 V AC
Input Voltage370 V DC
Output Power240 W
Output Voltage48 V DC
Environmentally FriendlyYes
Environmental CertificationRoHS
Country of OriginTaiwan
Height4.9"
Width2.5"
Depth4.5"
Product SeriesSDR-240
Output Current5 A
ManufacturerAdvantech Co. Ltd
Product ModelSDR-240-48
Product Name240W Single Output Industrial DIN RAIL With PFC Function
Product LineMeanWell
Manufacturer Part NumberBB-SDR-240-48
Manufacturer Website Addresshttp://www.advantech.com
Marketing Information

Model SDR-240-48 power supply is enclose in a DIN rail mountable case with touch-guard screw terminals and features universal input single output power-on LED display built-in active PFC function DC OK relay contact and peak load capability. The power supply protects against short circuit overvoltage and overload by current limiting (hiccup after 3s).
Packaged Quantity12
Package Contents
  • 240W Single Output Industrial DIN RAIL With PFC Function
  • Touch-guard Screw Terminals
Limited Warranty3 Year
