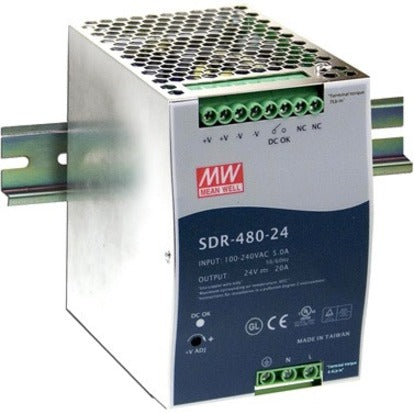

• B+B SmartWorx 480W Single Output Industrial DIN RAIL With PFC Function
    B+B SmartWorx 480W Single Output Industrial DIN RAIL With PFC Function
1 1

B+B SmartWorx 480W Single Output Industrial DIN RAIL With PFC Function

B+B SmartWorx 480W Single Output Industrial DIN RAIL With PFC Function

SKU: 1069839166      MFR: Advantech Co. Ltd

Product Description

B+B SmartWorx 480W Single Output Industrial DIN RAIL With PFC Function - DIN Rail - 120 V AC 230 V AC 370 V DC Input - 24 V DC @ 20 A Output - 480 W - 94% Efficiency

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : BB-SDR-480-24

Features

  • High efficiency 94% low power dissipation
  • 150% peak load capability
  • Built-in active PFC function PF>0.93
  • Protections: Short-circuit Overload Over-voltage Over-temperature
  • Free air convection cooling
  • DIN rail mountable TS-35/7.5 or 15
  • UL508 approved (industrial control equipment)
  • EN61000-6-2 (EN50082-2) industrial immunity level
  • Built-in DC OK relay contact
  • 100% full-load burn-in test

Product Details

Product TypePower Supply
Environmentally FriendlyYes
Environmental CertificationTaiwan RoHS
Country of OriginTaiwan
Height4.9"
Width3.4"
Depth5.1"
Product SeriesSDR-480
Brand NameB+B SmartWorx
Form FactorDIN Rail
ManufacturerAdvantech Co. Ltd
Product ModelSDR-480-24
Product Name480W Single Output Industrial DIN RAIL With PFC Function
Product LineMeanWell
Efficiency94%
Input Voltage120 V AC
Input Voltage230 V AC
Input Voltage370 V DC
Manufacturer Part NumberBB-SDR-480-24
Manufacturer Website Addresshttp://www.advantech.com
Marketing Information

Model SDR-480-24 power supply is enclose in a DIN rail mountable case with touch-guard screw terminals and features universal input single output power-on LED display built-in active PFC function DC OK relay contact and peak load capability. The power supply protects against short circuit overvoltage and overload by current limiting (hiccup after 3s).
Output Power480 W
Packaged Quantity8
Package Contents
  • 480W Single Output Industrial DIN RAIL With PFC Function
  • Touch-guard Screw Terminals
Limited Warranty3 Year
Output Voltage24 V DC @ 20 A
Product FamilyMeanWell SDR-480
View full details
$441.99 USD
$441.99
Sale Sold out

Dropship


Update


Shipping calculated at checkout.

B+B SmartWorx 480W Single Output Industrial DIN RAIL With PFC Function - DIN Rail - 120 V AC 230 V AC 370 V DC Input - 24 V DC @ 20 A Output - 480 W - 94% Efficiency

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : BB-SDR-480-24

Features

  • High efficiency 94% low power dissipation
  • 150% peak load capability
  • Built-in active PFC function PF>0.93
  • Protections: Short-circuit Overload Over-voltage Over-temperature
  • Free air convection cooling
  • DIN rail mountable TS-35/7.5 or 15
  • UL508 approved (industrial control equipment)
  • EN61000-6-2 (EN50082-2) industrial immunity level
  • Built-in DC OK relay contact
  • 100% full-load burn-in test

Product Details

Product TypePower Supply
Environmentally FriendlyYes
Environmental CertificationTaiwan RoHS
Country of OriginTaiwan
Height4.9"
Width3.4"
Depth5.1"
Product SeriesSDR-480
Brand NameB+B SmartWorx
Form FactorDIN Rail
ManufacturerAdvantech Co. Ltd
Product ModelSDR-480-24
Product Name480W Single Output Industrial DIN RAIL With PFC Function
Product LineMeanWell
Efficiency94%
Input Voltage120 V AC
Input Voltage230 V AC
Input Voltage370 V DC
Manufacturer Part NumberBB-SDR-480-24
Manufacturer Website Addresshttp://www.advantech.com
Marketing Information

Model SDR-480-24 power supply is enclose in a DIN rail mountable case with touch-guard screw terminals and features universal input single output power-on LED display built-in active PFC function DC OK relay contact and peak load capability. The power supply protects against short circuit overvoltage and overload by current limiting (hiccup after 3s).
Output Power480 W
Packaged Quantity8
Package Contents
  • 480W Single Output Industrial DIN RAIL With PFC Function
  • Touch-guard Screw Terminals
Limited Warranty3 Year
Output Voltage24 V DC @ 20 A
Product FamilyMeanWell SDR-480
