• B+B SmartWorx 802.11a/b/g/n SPI Interface Advanced Enterprise Security
    B+B SmartWorx 802.11a/b/g/n SPI Interface Advanced Enterprise Security
1 1

B+B SmartWorx 802.11a/b/g/n SPI Interface Advanced Enterprise Security

B+B SmartWorx 802.11a/b/g/n SPI Interface Advanced Enterprise Security

SKU: 1035475772      MFR: Advantech Co. Ltd

Product Description

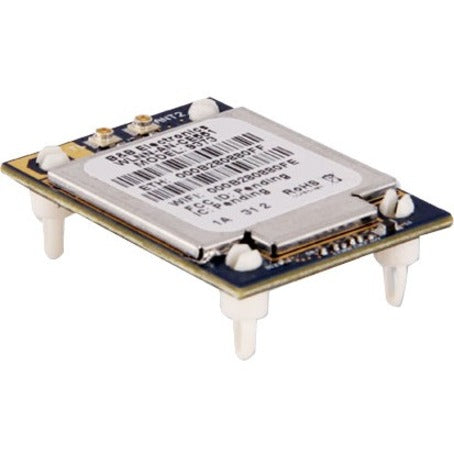

B+B SmartWorx 802.11a/b/g/n SPI Interface Advanced Enterprise Security - Wireless LAN - IEEE 802.11n - 65 Mbit/s

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : WLNN-SP-DP551

Features

  • Quick time to market and reduced integration costs
  • 802.11a/b/g/n Wi-Fi (2.4 GHz 5 GHz)
  • Airborne Power Save firmware reduces power consumption and extends battery life in mobile devices
  • Extended Operating Temperature Range (-40°C to +85°C) and environmental specifications
  • AirborneM2M SpeedLink roaming provides enhanced connection reliability
  • Advanced Enterprise Class wireless security
  • AirborneM2M PortFlex capability enables any combination of comm ports (UART SPI GPIO Ethernet and 802.11 interfaces)
  • FCC Part 15 Class B Sub C Modular Approval minimizes regulatory requirements
  • Backwards compatible with previous generations of AirborneM2M embedded modules
  • Supported by Airborne Management Center (AMC) device discovery management and control application software

Product Details

Product TypeWireless Module
Environmentally FriendlyYes
Environmental CertificationRoHS
BluetoothNo
Wireless LANYes
Wireless LAN StandardIEEE 802.11n
ISM BandYes
UNII BandYes
Antenna Gain5.5 dBi
Country of OriginUnited States
Wireless Transmission Speed65 Mbit/s
Brand NameB+B SmartWorx
ManufacturerAdvantech Co. Ltd
Product ModelWLNN-SP-DP551
Product Name802.11a/b/g/n SPI Interface Advanced Enterprise Security
Product LineAirborneM2M
Manufacturer Part NumberWLNN-SP-DP551
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationAIRBORNEM2MTM EMBEDDED DUAL BAND WIRELESS DEVICE SERVER AND ETHERNET SOLUTION MODULES SERIAL & ETHERNET TO 802.11A/B/G/N (2.4 GHZ 5 GHZ)

The AirborneM2M line of highly-integrated 802.11 wireless modules allow OEMs to Wi-Fi enable devices used in an array of machine-to-machine (M2M) applications. B&B delivers all of the necessary RF technology networking stacks and advanced security features in a compact single-board package reducing integration costs for OEMs and providing for a quick time to market.

Big Performance in Small and Ruggedized Package
The AirborneM2M series delivers the industry's most rugged highly- integrated embedded Wi-Fi module solution. AirborneM2M modules meet extended operating temperature and shock/vibration specifications of the most demanding M2M applications.

Utilizing a 32bit ARM9 processor and the high-performance Atheros AR6203 802.11 radio the new AirborneM2M modules deliver increased transmit power and receive sensitivity contributing to superior range performance.

SpeedLink™ Roaming
The new AirborneM2M SpeedLink roaming feature provides enhanced connection reliability enabling OEM devices to roam freely within a wireless network without loss of data or connection.

Flexible & Easy to Integrate
AirborneM2M incorporates support for both serial and Ethernet to Wi-Fi 802.11 2.4 or 5 GHz communications. Utilizing AirborneM2M PortFlex capability OEMs may configure via software any combination of UART SPI Ethernet GPIO and 802.11 interfaces. Each individual port can be independently configured.
Packaged Quantity1
ISM Minimum Frequency2.40 GHz
ISM Maximum Frequency2.48 GHz
UNII Minimum Frequency5.15 GHz
UNII Maximum Frequency5.83 GHz
Antenna ConnectorU.FL
Security FeaturesAES
Wireless SecurityWEP
ProtocolsTCP/IP
Product FamilyAirborneM2M
View full details
$112.99 USD
$112.99
Sale Sold out

Dropship

Get it by Sat, Dec 14 - Thu, Dec 19


Update


Shipping calculated at checkout.
