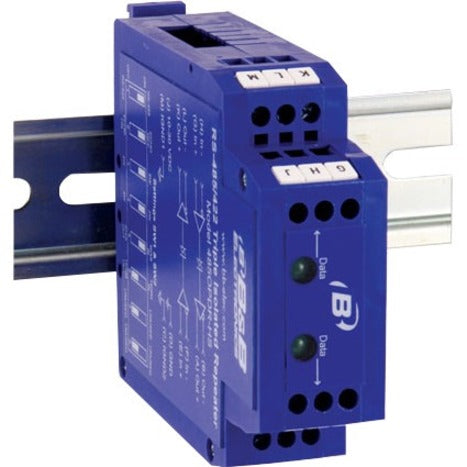

B+B SmartWorx High Speed Isolated RS-422/485 Repeater

B+B SmartWorx High Speed Isolated RS-422/485 Repeater

SKU: 1031438084      MFR: Advantech Co. Ltd

GTIN: 835788110739

Product Description

B+B SmartWorx High Speed Isolated RS-422/485 Repeater - Rail-mountable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : 485OPDR-HS

Product Details

Product TypeNetwork Repeater
Brand NameB+B SmartWorx
Form FactorRail-mountable
Network (RJ-45)No
Serial PortYes
PoE (RJ-45) PortNo
Country of OriginUnited States
Height3.7"
Width1"
Depth3.1"
Certifications & Standards
  • EN61000-6-2 (Heavy Industrial)
  • EN61000-4-2 (ESD) ± 4 kV contact ± 8 kV air
  • EN61000-4-3 (RI) 10 V/m 80-1000 MHz; 3 V/m 1.3 to 2.7 GHz
  • EN61000-4-4 (EFT Burst) ± 2 kV DC ports; ± 1 kV signal ports
  • EN61000-4-5 (Surge) ± 2 kV common; ± 1 kV differential
  • EN61000-4-6 (CI) 10 Vrms 0.15 to 80 MHz
  • EN61000-4-8 (Magnetic) 10 A/m 50 Hz & 60 Hz
  • IEC60068-2-27 (Shock) 50 G Peak 11 ms 3 axes
  • IEC60068-2-6 (Vibration) 140-500 Hz 4G 3 axes
  • IEC60068-2-32 (Drop) 10 total drops from sides corner edges
  • Emissions FCC Class B CISPR Class B (EN55022)
Agency Approvals:
  • CE
  • FCC
  • NEMA TS2
ManufacturerAdvantech Co. Ltd
Product Model485OPDR-HS
Product NameHigh Speed Isolated RS-422/485 Repeater
Manufacturer Part Number485OPDR-HS
Manufacturer Website Addresshttp://www.advantech.com
Marketing Information

485OPDR-HS
The 485OPDR-HS is a high speed optically isolated RS-422/485 repeater that supports data rates up to 1.5 Mbps making it suitable for use in fieldbus systems such as Profibus.

Isolation
The 485OPDR-HS provides 2 kV digital Isolation with 8 kV air ESD protection and 600 W transient voltage suppression on the data lines.

Range Extension
The 485OPDR-HS can be used to extend the range of a network up to 4000 ft. (1.2 km) depending on data rates and to add additional nodes. 2-Wire RS-485 4-Wire RS-485 and RS-422 are supported. Data signals and the power inputs connect to built-in terminal blocks.

Enclosure
The repeater operates on externally sourced 10 to 30 VDC power. The enclosure has a DIN rail mount that is designed to fit easily on a standard 35mm rail.
Additional InformationSignals:
  • TDA(-) TDB(+) RDA(-) RDB(+) GND
  • RS-422
  • RS-485 2-Wire and 4-Wire
  • Protected GND on Isolated Side
View full details
$260.99 USD
$260.99
Sale Sold out

Back Order

Get it by Sat, Jul 25 - Thu, Jul 30
