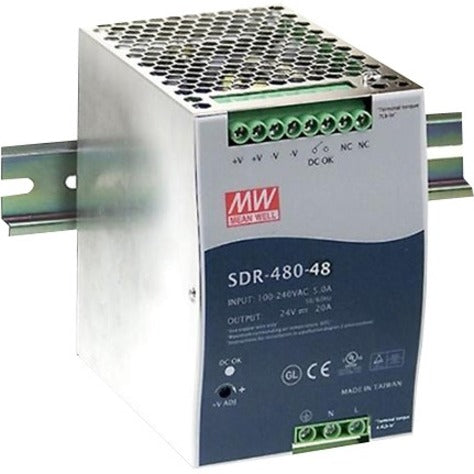

• B+B SmartWorx MeanWell SDR-480-48 480W Power Supply
    B+B SmartWorx MeanWell SDR-480-48 480W Power Supply
1 1

B+B SmartWorx MeanWell SDR-480-48 480W Power Supply

B+B SmartWorx MeanWell SDR-480-48 480W Power Supply

SKU: 1065557319      MFR: Advantech Co. Ltd

Product Description

B+B SmartWorx MeanWell SDR-480-48 480W Power Supply - DIN Rail - 120 V AC 230 V AC 370 V DC Input - 48V DC Output - 480 W - 94% Efficiency

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : BB-SDR-480-48

Features

  • High efficiency 94% and low power dissipation
  • 150% peak load capability
  • Built-in active PFC function PF>0.94
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508(industrial control equipment)approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • Built-in DC OK relay contact

Product Details

Product TypePower Supply
Product FamilyMeanWell SDR-480
Brand NameB+B SmartWorx
Form FactorDIN Rail
Efficiency94%
Input Voltage120 V AC
Input Voltage230 V AC
Input Voltage370 V DC
Output Power480 W
Output Voltage48V DC
Environmentally FriendlyYes
Environmental CertificationTaiwan RoHS
Height4.9"
Width3.4"
Depth5.1"
Product SeriesSDR-480
Output Current10 A
ManufacturerAdvantech Co. Ltd
Product ModelSDR-480-48
Product NameMeanWell SDR-480-48 480W Power Supply
Product LineMeanWell
Manufacturer Part NumberBB-SDR-480-48
Manufacturer Website Addresshttp://www.advantech.com
Marketing Information

Model SDR-480-48 power supply is enclose in a DIN rail mountable case with touch-guard screw terminals and features universal input single output power-on LED display built-in active PFC function DC OK relay contact and peak load capability. The power supply protects against short circuit overvoltage and overload by current limiting (hiccup after 3s).
Packaged Quantity8
Limited Warranty3 Year
