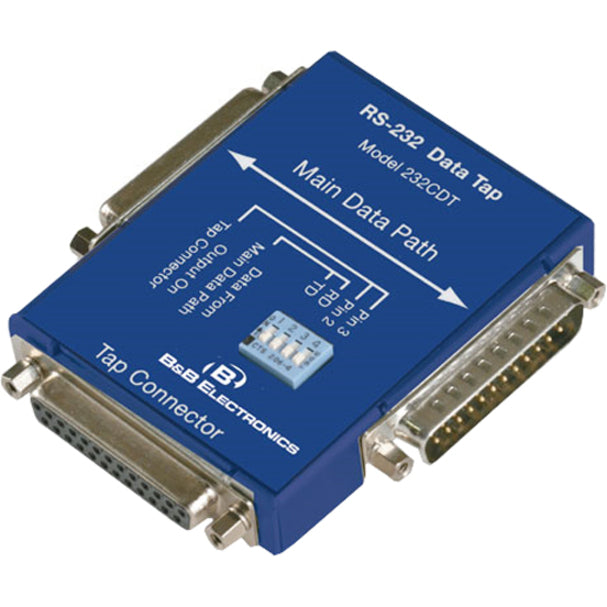

B+B SmartWorx RS-232 Data Tap

B+B SmartWorx RS-232 Data Tap

SKU: 1024664912      MFR: Advantech Co. Ltd

GTIN: 835788108385

Product Description

B+B SmartWorx RS-232 Data Tap - 2 x 25-pin DB-25 RS-232 Serial Female - 1 x 25-pin DB-25 RS-232 Serial Male

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : 232CDT

Product Details

Product TypeData Transfer Adapter
Connector Type on First EndDB-25 RS-232 Serial - Female
Connector Type on Second EndDB-25 RS-232 Serial - Male
Adapter TypeSerial
Brand NameB+B SmartWorx
Connector on First End Details2 x 25-pin DB-25 RS-232 Serial Female
Connector on Second End Details1 x 25-pin DB-25 RS-232 Serial Male
Country of OriginUnited States
FeaturesData Tap
ManufacturerAdvantech Co. Ltd
Product Model232CDT
Product NameRS-232 Data Tap
Manufacturer Part Number232CDT
Manufacturer Website Addresshttp://www.advantech.com
Marketing Information

On the Data Tap the male RS-232 connector on the top and the female RS-232 connector on the bottom are connected straight through pin for pin. These connectors are used to connect the Data Tap in series with the RS- 232 line to be tapped. Either the Transmit Data from pin 2 or the Receive Data from pin 3 can be brought out to the Tap Connector. Pin 1 Protective Ground and pin 7 Signal Ground of all three connectors are interconnected.

The small switch is used to program the Tap Connector. The bottom two switches pick Receive Data (RD) or Transmit Data (TD) to be sent to the Tap Connector. (See the markings near the switch.) When the RD switch is on only mainline Receive Data is sent to the Tap Connector. When the TD switch is on only mainline Transmit Data is sent to the Tap Connector. When both switches are on both the Transmit Data and the Receive Data are sent to the Tap Connector.
Limited WarrantyLifetime
Weight (Approximate)3.20 oz
