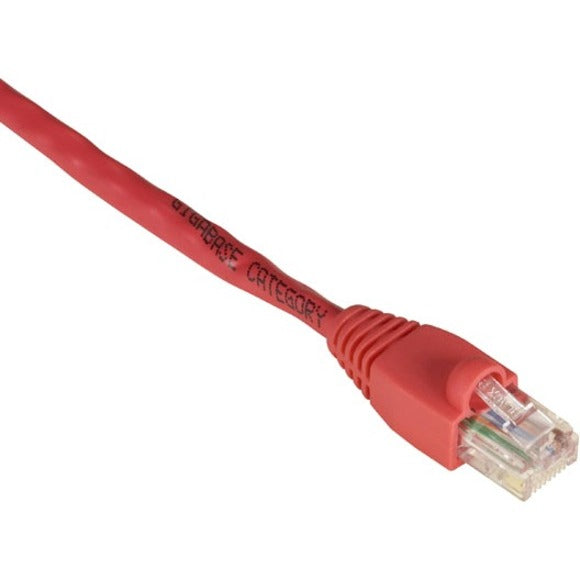

Black Box GigaBase Premium CAT5e Crossover Patch Cables exceed ANSI/TIA industry standards ensuring optimal performance in bandwidth-intensive Fast Ethernet applications and guaranteeing the transmission of your data. They are perfect for making switch-to-switch computer-to-computer or other crossover connections.

Tested to 350-MHz and 1-Gbps performance these cables exceed the 100-MHz CAT5e specification greatly reducing impedance structural return loss and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity.

These cables have connectors designed for the insertion and extraction life of 750 cycles making for an ultra-reliable solution that you can count on to perform. They also feature snagless boots that provide extra strain relief and prevent connector damage due to cable snags during installation.

• Gold-plated contacts are designed for an insertion/extraction life of 1000 cycles
• Enhanced performance parameters and electrical characteristics
• Tuned-plug design maintains a tighter twist and reduces noise
• Stranded conductors for short runs
• Specially designed for use with other Giga Base components
• Superior construction offers significant headroom
• Improved near-end crosstalk (NEXT) compared to standard CAT5 cable
• Attenuation (Maximum) 24.2 dB/100 m (328.1 ft.) @ 100 MHz
• 49.3 dB/100 m (328.1 ft.) @ 350 MHz
• Frequency Up to 350 MHz
• NEXT (Minimum) 40.3 dB/100 m (328.1 ft.) @ 100 MHz
• 32.2 dB/100 m (328.1 ft.) @ 350 MHz
• PS-NEXT (Minimum) 38.3 dB/100 m (328.1 ft.) @ 100 MHz
• 30.2 dB/100 m (328.1 ft.) @ 350 MHz
• Return Loss (Minimum) 20.1 dB/100 m (328.1 ft.) @ 100 MHz
• 16.3 dB/100 m (328.1 ft.) @ 350 MHZ
