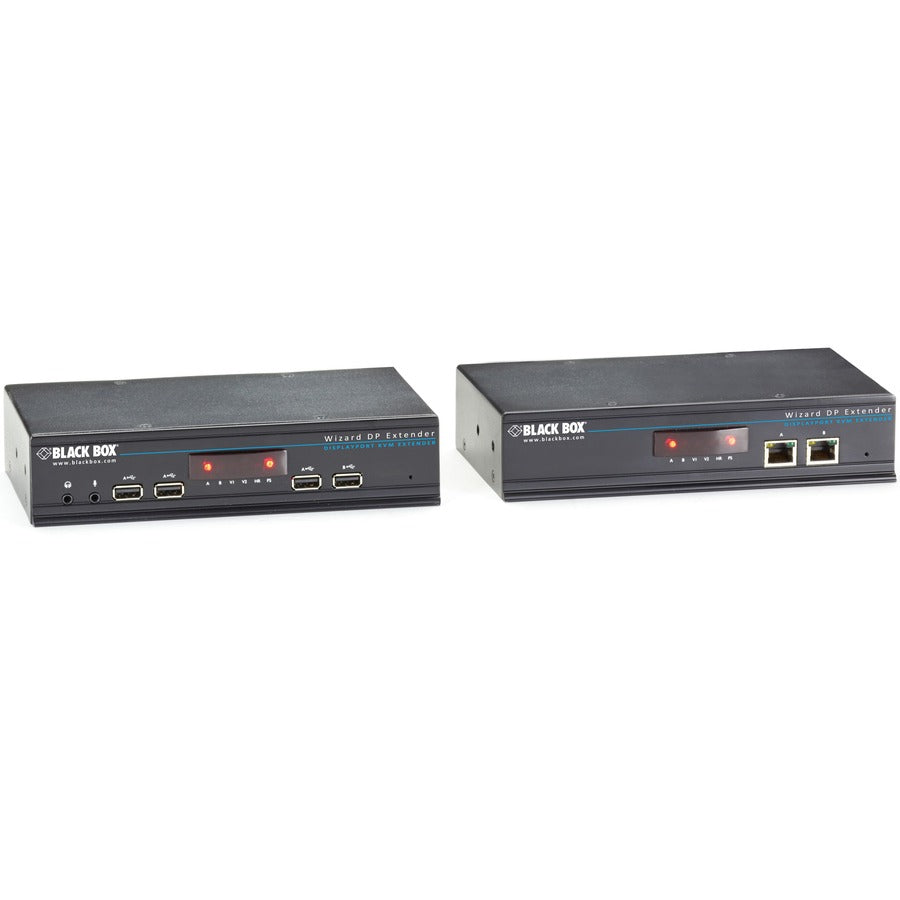

Black Box Dual-Head DisplayPort KVM Extender over CATx

Black Box Dual-Head DisplayPort KVM Extender over CATx

SKU: 1031195132      MFR: Black Box Corporation

GTIN: 822088075400

Product Description

Black Box Dual-Head DisplayPort KVM Extender over CATx - 1 Computer(s) - 1 Remote User(s) - 492 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 6 x Network (RJ-45) - 6 x USB - DisplayPort

Manufacturer : Black Box Corporation

Manufacturer Part No : ACU5800A

Features

  • Extends DisplayPort USB 2.0 USB HID and digital/analog audio over CATx cables
  • Extend 3840x2160 4K at 30Hz or 2560x1600 dual-link video up to 330 ft. (100 m)
  • Extend 1920x1080 dual-head video up to 492 ft. (150 m)
  • Support for USB keyboards mice tablets and touchscreens
  • USB 2.0 Hi-Speed for mass storage devices
  • Use one CATx cable for basic performance and two CATx cables for highest performance
  • Includes intelligent EDID management
  • HD quality analog audio
  • Receiver supports DisplayPort Dual Mode

Product Details

Network (RJ-45)Yes
DisplayPortYes
Number of Computers Supported1
Number of Remote Users Supported1
Connectivity TechnologyWired
Brand NameBlack Box
Product TypeKVM Console/Extender
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Video Resolution4096 x 2160
Graphic Mode4K
Maximum Operating Distance492 ft
USBYes
Number of Network (RJ-45) Ports6
Number of USB Ports6
Transmitter Height1.76"
Transmitter Width7.92"
Transmitter Depth4.62"
Receiver Height1.76"
Receiver Width7.92"
Receiver Depth4.62"
Transmitter Weight (Approximate)1.43 lb
Receiver Weight (Approximate)1.43 lb
Country of OriginUnited Kingdom
Certifications & StandardsTAA
ManufacturerBlack Box Corporation
Product NameDual-Head DisplayPort KVM Extender over CATx
Power Consumption20 W
Input Voltage120 V AC
Input Voltage230 V AC
Input Voltage5 V DC
Manufacturer Part NumberACU5800A
Manufacturer Website Addresshttp://www.blackbox.com
Marketing Information

The Black Box DisplayPort Extender is a high-performance KVM extender that enables you to locate your critical computing hardware in a secure and temperature-controlled environment away from the user workstation while maintaining the same user desktop experience.

It can transmit either two 1920 x 1200 video streams or one higher resolution video stream (2560x1600 WQXGA) digital audio (S/PDIF) analog audio Hi-Speed USB 2.0 and USB 2.0 (full and low speed) over CATx cables.

Perfect digital video real-time control
The system is uncompressed sending every pixel of every frame without loss. The receiver supports DisplayPort Dual Mode (DP++) meaning monitors that only support HDMI or DVI can be used (with the correct adapter cable).

Single CATx cable
Video USB and audio all pass along a single cable. A second CATx cable is required for the Hi-Speed USB 2.0 extension and increased video bandwidth.

Up to 492 feet (150 m) extension distances
Distance is dependent on the monitor resolution the number of monitors cable type and the number of patch panels and couplers.

USB 2.0
Enables connection of any USB human interface device from mice and keyboards through to graphics tablets jog wheels joysticks and 3D explorers. Mass storage devices and isochronous devices such as webcams and headsets can be used through the transparent USB 2.0 Hi-Speed port.

EDID management
The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.

Plug and play
This extender solution is plug-and-play. There is no need for drivers or software to be installed.

Digital audio
Supports the S/PDIF interface via an optical 3.5mm jack socket (dual use with analog audio via mini Toslink).

HD-quality analog audio
HD-audio quality (stereo channel 24 bit sampled at 96kHz) is available to transfer audio from local to remote for Line In / Line. Headsets with integrated microphones are also supported.
Platform SupportedPC
Package Contents
  • 1 x Transmitter
  • 1 x Receiver
  • 2 x 5 VDC 4 Amp Power Supplies
  • 2 x USB Type A to B Cables (6-Ft Each)
  • 1 x Display-Port Cable (6.6-ft.)
  • 2 x 3.5-mm Audio Cables (10-Ft.)
  • 1 x DB9 Female To RJ-45 Flash Upgrade Cable
  • 2 x US Power Cords
  • 1 X Safety Information Sheet
  • 2 X Sets Of Four Rubber Feet
Limited Warranty2 Year
