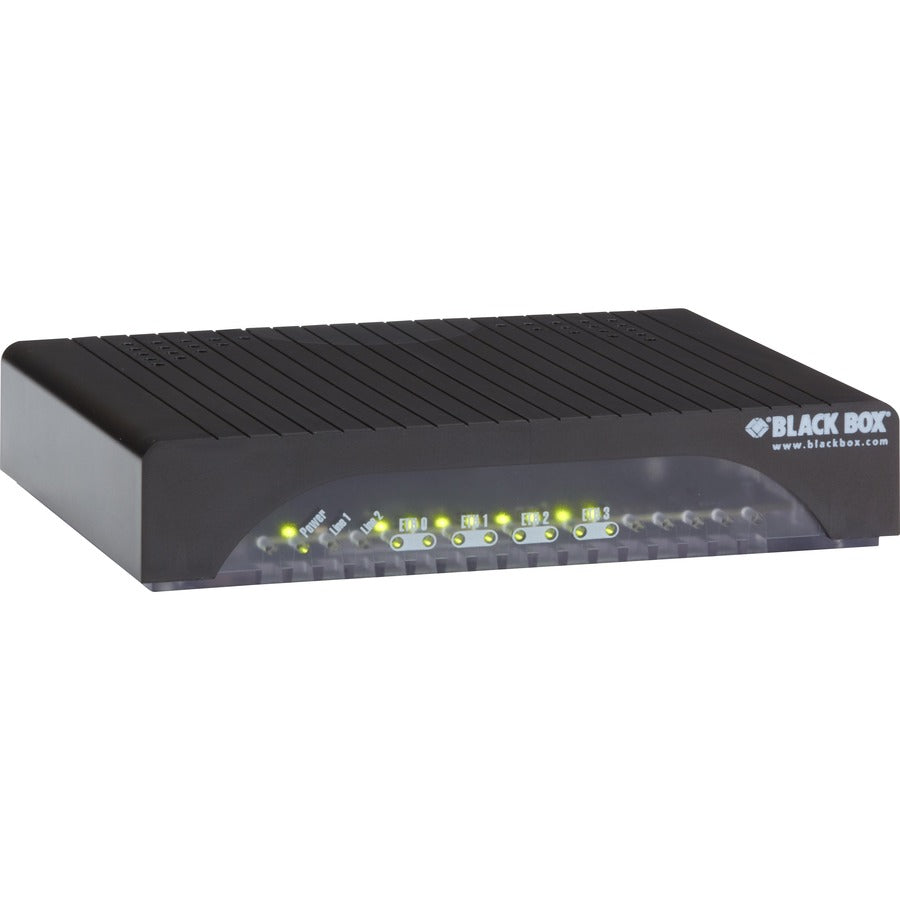

Black Box Ethernet Extender - 4-Port

Black Box Ethernet Extender - 4-Port

SKU: 1059238864      MFR: Black Box Corporation

GTIN: 822088132417

Product Description

Black Box Ethernet Extender - 4-Port - 5 x Network (RJ-45) - 30000 ft Extended Range

Manufacturer : Black Box Corporation

Manufacturer Part No : LB510A-R3

Features

  • Provides data rates up to 15 Mbps over 2-wire voice-grade wiring
  • Selectable 64-kbps rates enable you to choose the bandwidth you need
  • Has 4-Port integrated 10/100 Ethernet switch
  • Probes voice-grade wiring to determine the optimum data rate supported
  • Supports G.994.2 handshaking enabling it to adapt the rate automatically to the existing line conditions
  • Simple to set up and once configured operates transparently
  • Transformer-coupled two-wire interface boasts 1500-VAC isolation
  • Works with other extender/NTUs to provide interface conversion along with network termination and extension
  • Max reach of 30 kft

Product Details

Product TypeNetwork Extender
Environmentally FriendlyYes
Environmental CertificationRoHS
Number of Network (RJ-45) Ports5
Network (RJ-45)Yes
TAA CompliantYes
Maximum Extended Range30000 ft
Country of OriginUnited States
Height1.6"
Width5.5"
Depth4.2"
Brand NameBlack Box
ManufacturerBlack Box Corporation
Product NameEthernet Extender - 4-Port
Manufacturer Part NumberLB510A-R3
Manufacturer Website Addresshttp://www.blackbox.com
Marketing InformationFeaturing symmetric high-speed digital subscriber line technology the G.991.2 standard device delivers rate-adaptive nx64 speeds as high as 15 Mbps.

The extender/NTU works in a pair communicating across dry two-wire copper cable of any gauge from 19 AWG (0.9 mm) to 26 AWG (0.4 mm). You may even be able to use the telephone wiring already connecting offices or buildings in your application.

Using the DIP switch on the extender/NTU or a Telnet connection you can set its rate in 64-kbps increments to provide a precise amount of bandwidth to users and to get either greater speed or greater distance. The extender/NTU uses Trellis-Coded Pulse Amplitude Modulation (TCPAM) to enhance its performance and support distances twice as far as conventional TDM technologies.

The G.SHDSL Two-Wire Extender/NTU also includes a probe to determine the optimum data rate supported by the link between local and remote units. In addition an error monitor inspects the line for intervals that exceed its user-set error threshold and if necessary restarts the link automatically.

For easy troubleshooting the extender/NTU features front-panel LEDs and other diagnostic tools for detecting errors on the two-wire connection.

The 10BASE-T/100BASE-TX G.SHDSL Two-Wire Extender/NTU features (4) RJ-45 connectors autosenses 10- or 100-Mbps network links autonegotiates for full- or half-duplex operation and delivers bridged-Ethernet connections to distant users.

You can extend corporate LAN-to-WAN communications at higher speeds or at a longer distance.

Ethernet Extender 4 Port. Extends 4 ports 10/100Mbps Ethernet RJ45 over copper or CATx line interface RJ45. These devices are used in pairs for near-end far-end deployments. Typical applications include Enterprise LAN extension campus LAN expansion. This auto-rate Ethernet extender uses a standard 2-wire connection which simplifies your life and provides cost-effective network extension by enabling you to make the most of your pre-existing twisted-pair infrastructure. These 4 port 10BASE-T/100BASE-TX Ethernet Extenders use G-SHDSL technology to provide an easy inexpensive way to extend the reach of your Ethernet network over ordinary voice-grade copper wire. Devices include external 90-240VAC power supplies.

The extender has a max reach of 30 kft.
Package Contents
  • Ethernet Extender - 4-Port
  • External Power Supply
Limited Warranty1 Year
Certifications & Standards
  • CC Part 15A
  • CE Mark per EMC directive 89/336/EEC and Low Voltage Directive 73/23/EEC
Additional Information
  • Indicators: (1) Power LED; WAN: (3) LEDs: Link Tx Rx;Ethernet: (3) LEDs: 100 M Tx Rx
  • Interconnection Cable Required: Twisted-pair unconditioned dry metal wire 19 AWG (0.9 mm) to 26 AWG (0.4 mm)
  • Line Coding: Trellis Coded Pulse Amplitude Modulation (TCPAM)
  • Power Input: 90-260 VAC 50-60 Hz
  • Weight: 2.0 lbs (1.0 kg)
Distance (Maximum):
  • 26 AWG (0.4-mm) wire: 4 mi. (6.4 km) at 192 kbps maximum; 1 mi. (1.6 km) at 4.6 Mbps maximum;
  • 24 AWG (0.5-mm) wire: 5.3 mi. (8.5 km) at 192 kbps maximum; 1.3 mi. (2.1 km) at 4.6 Mbps maximum;
  • 22 AWG (0.6-mm) wire: 6.6 mi. (10.6 km) at 192 kbps maximum; 1.7 mi. (2.7 km) at 4.6 Mbps maximum;
  • 19 AWG (0.9-mm) wire: 9.9 mi. (15.9 km) at 192 kbps maximum; 2.5 mi. (4 km) at 4.6 Mbps maximum
Maximum Data Transfer Rate1.88 MB/s
Environmental CertificationWEEE
