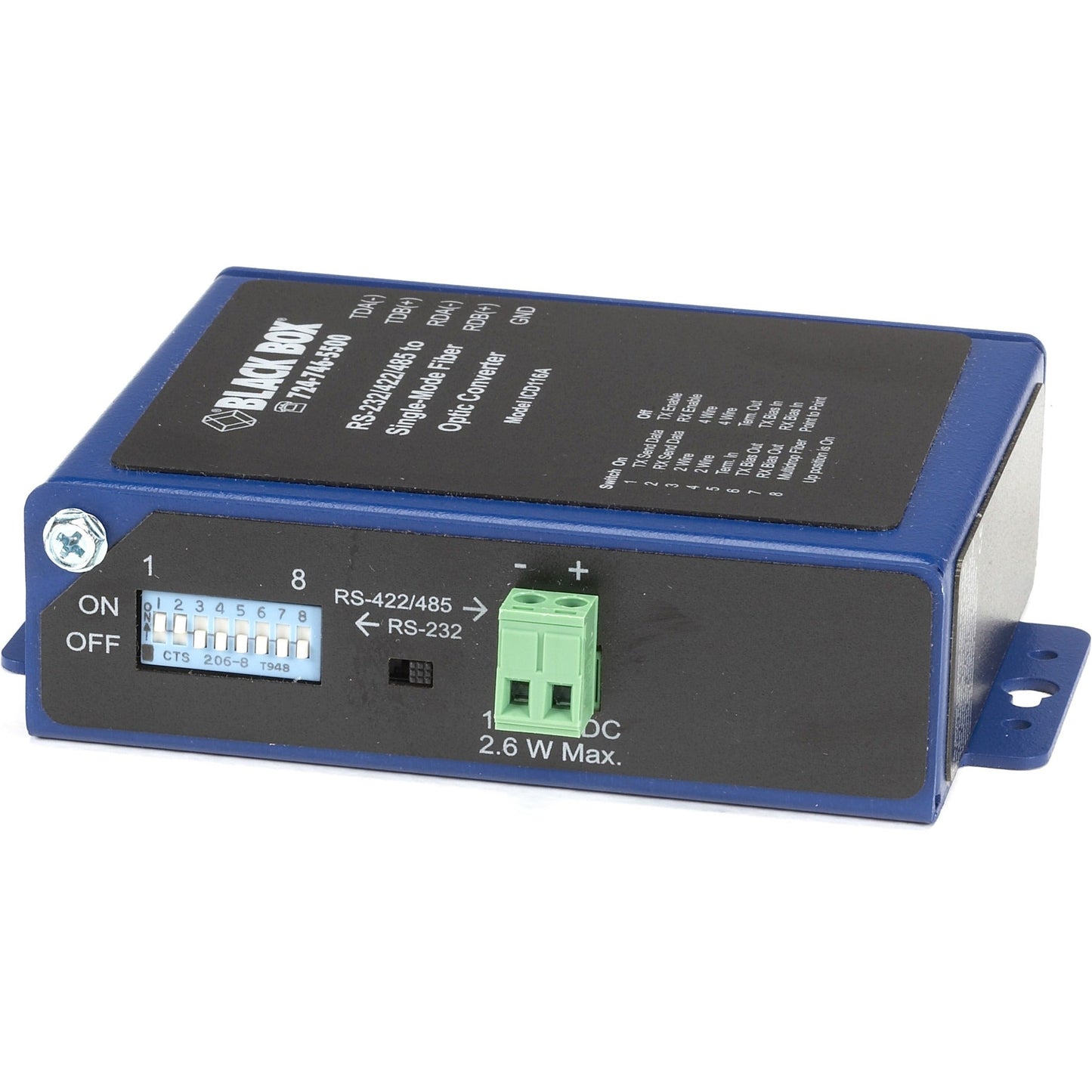

• Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter
    Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter
  • Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter
  • Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter
1 3

Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter

Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter

SKU: 1026881387      MFR: Black Box Corporation

GTIN: 822088100638

Product Description

Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter - 1 x SC Ports - Rail-mountable - TAA Compliant

Manufacturer : Black Box Corporation

Manufacturer Part No : ICD116A

Features

  • A heavy-duty industrial-strength serial-to-fiber converter
  • Converts serial signals for single mode fiber transmission up to 15 kilometers (9.3 mi.)
  • Rugged IP30-rated metal case for panel mounting.
  • Tolerates temperatures ranging from -30 to +185º F (-40 to +85º C).
  • Designed to withstand both shock and vibration
  • Boasts 2-kV triple isolation for safeguarding data and equipment
  • Supports fiber ring communications with 31 other units

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
USBNo
DVINo
Network (RJ-45)No
Management PortNo
Number of SC Ports1
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports2
TAA CompliantYes
Country of OriginUnited States
Height1.3"
Width3.7"
Depth5.2"
Brand NameBlack Box
Form FactorRail-mountable
ManufacturerBlack Box Corporation
Product NameIndustrial Opto-Isolated Serial to Fiber Single-Mode SC Converter
Manufacturer Part NumberICD116A
Manufacturer Website Addresshttp://www.blackbox.com
Marketing InformationMeets stringent IEC and IEEE specs.
Encased in an IP30-rated enclosure the converter's been put through some of the most exacting tests in the industry. The high-grade converter meets the requirements of two standards that make it suitable for electrical substation installations-IEC 61850-3 and IEEE 1613-specifications that are more stringent than NEMA TS1/TS2 requirements for transportation applications.

Plus as a fiber-based conversion and extension device it's inherently immune to electromagnetic and radio-frequency interference (EMI/RFI) as it uses the optical cable to extend RS-232 RS-422 and RS-485 serial data as far as 15 kilometers (9.3 mi.).
Maximum Distance Supported9.32 Mile
Limited Warranty5 Year
Weight (Approximate)8 oz
Parallel PortNo
Digital AudioNo
Digital Audio/VideoNo
Certifications & StandardsCE
Additional Information

Power supply not included. Must be ordered separately.
View full details
$713.99 USD
$713.99
Sale Sold out

In Stock - 5 (Available by Fri, Jan 24 - Tue, Jan 28)


Update


Shipping calculated at checkout.

Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter - 1 x SC Ports - Rail-mountable - TAA Compliant

Manufacturer : Black Box Corporation

Manufacturer Part No : ICD116A

Features

  • A heavy-duty industrial-strength serial-to-fiber converter
  • Converts serial signals for single mode fiber transmission up to 15 kilometers (9.3 mi.)
  • Rugged IP30-rated metal case for panel mounting.
  • Tolerates temperatures ranging from -30 to +185º F (-40 to +85º C).
  • Designed to withstand both shock and vibration
  • Boasts 2-kV triple isolation for safeguarding data and equipment
  • Supports fiber ring communications with 31 other units

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
USBNo
DVINo
Network (RJ-45)No
Management PortNo
Number of SC Ports1
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports2
TAA CompliantYes
Country of OriginUnited States
Height1.3"
Width3.7"
Depth5.2"
Brand NameBlack Box
Form FactorRail-mountable
ManufacturerBlack Box Corporation
Product NameIndustrial Opto-Isolated Serial to Fiber Single-Mode SC Converter
Manufacturer Part NumberICD116A
Manufacturer Website Addresshttp://www.blackbox.com
Marketing InformationMeets stringent IEC and IEEE specs.
Encased in an IP30-rated enclosure the converter's been put through some of the most exacting tests in the industry. The high-grade converter meets the requirements of two standards that make it suitable for electrical substation installations-IEC 61850-3 and IEEE 1613-specifications that are more stringent than NEMA TS1/TS2 requirements for transportation applications.

Plus as a fiber-based conversion and extension device it's inherently immune to electromagnetic and radio-frequency interference (EMI/RFI) as it uses the optical cable to extend RS-232 RS-422 and RS-485 serial data as far as 15 kilometers (9.3 mi.).
Maximum Distance Supported9.32 Mile
Limited Warranty5 Year
Weight (Approximate)8 oz
Parallel PortNo
Digital AudioNo
Digital Audio/VideoNo
Certifications & StandardsCE
Additional Information

Power supply not included. Must be ordered separately.
