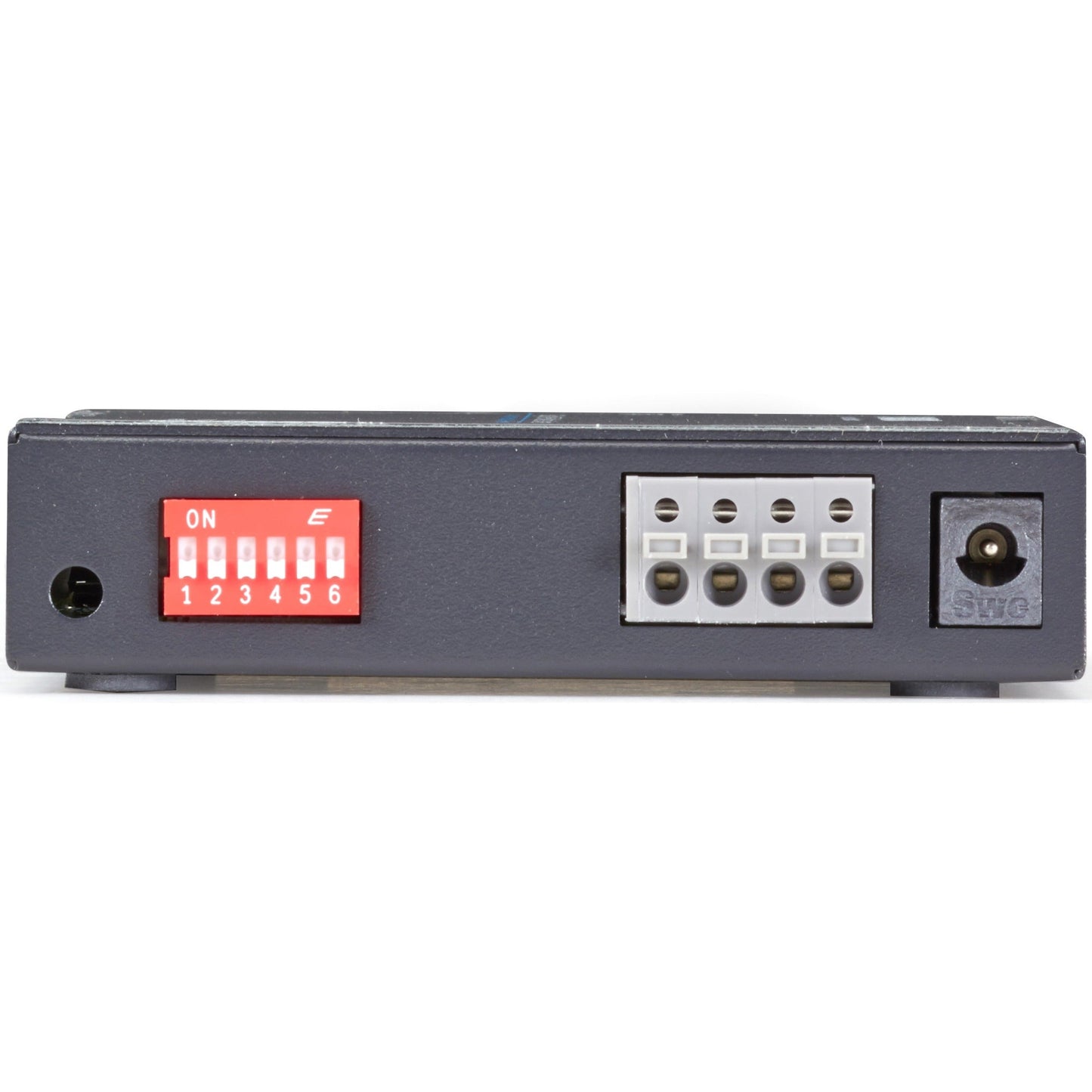

• Black Box LGC5212A Transceiver/Media Converter
    Black Box LGC5212A Transceiver/Media Converter
  • Black Box LGC5212A Transceiver/Media Converter
1 2

Black Box LGC5212A Transceiver/Media Converter

Black Box LGC5212A Transceiver/Media Converter

SKU: 1027932360      MFR: Black Box Corporation

GTIN: 822088107996

Product Description

Black Box LGC5212A Transceiver/Media Converter - 2x PoE+ (RJ-45) Ports - 1 x SC Ports - Single-mode - Gigabit Ethernet - 10/100/1000Base-TX 1000Base-X - Rail-mountable Wall Mountable - TAA Compliant

Manufacturer : Black Box Corporation

Manufacturer Part No : LGC5212A

Features

  • Features two 10-/100-/1000-Mbps copper ports and one 1000Mbps fiber port.
  • Both UTP ports are autosensing with Auto MDI/MDI-X; one UTP port supports 802.3at PoE+.
  • Acts as power sourcing equipment (PSE) on the copper side to power PoE devices.
  • Features an extended temperature range when used with DC terminal-block power

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyGigabit Ethernet
USBNo
DVINo
Network (RJ-45)No
Management PortNo
Number of PoE+ (RJ-45) Ports2
Number of SC Ports1
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports3
Fiber Optic Wavelength1310 nm
TAA CompliantYes
Country of OriginUnited States
Height0.8"
Width3.6"
Depth3.8"
Brand NameBlack Box
Form FactorRail-mountable
ManufacturerBlack Box Corporation
Product ModelLGC5212A
Product NameLGC5212A Transceiver/Media Converter
Network Technology10/100/1000Base-TX
Manufacturer Part NumberLGC5212A
Manufacturer Website Addresshttp://www.blackbox.com
Marketing InformationFurther Details

This tough media converter is the ideal way extend your network over fiber and also power a PoE device. Use it to link to faraway PoE devices such as IP security cameras wireless access points and VoIP phones.

The media converter features two autosensing 10/100/1000 UTP ports plus one single-mode fiber port that can extend a network connection up to 15 kilometers (9.3 mi.). Both UTP ports supports 802.3at Power over Ethernet enabling it to power a PoE+ PD device; the other is a straightforward Ethernet port which can be used for network expansion.

The Gigabit PoE+ Media Converter can be powered three ways: from an AC power supply (LGC5210-PS order separately) via the DC power jack or via the DC terminal block. When used with DC power to the terminal block the converter supports an extended operating temperature range of +32 to +158° F (0 to +70° C).

The converter requires only one power source to power both the converter and a PoE+ device; you can position the PoE+ device up to 100 meters (328 feet) away from the converter enabling flexible placement of wireless APs and security cameras. A pair of input terminals and output terminals enables you to cascade DC power in a DIN rail installation (optional DIN Rail Clip (LXC-DR) is sold separately).
Maximum Distance Supported9.32 Mile
Power SourceAC Adapter
Limited Warranty6 Year
View full details
$802.99 USD
$802.99
Sale Sold out

In Stock - 22 (Available by Thu, Jan 23 - Mon, Jan 27)


Update


Shipping calculated at checkout.

Black Box LGC5212A Transceiver/Media Converter - 2x PoE+ (RJ-45) Ports - 1 x SC Ports - Single-mode - Gigabit Ethernet - 10/100/1000Base-TX 1000Base-X - Rail-mountable Wall Mountable - TAA Compliant

Manufacturer : Black Box Corporation

Manufacturer Part No : LGC5212A

Features

  • Features two 10-/100-/1000-Mbps copper ports and one 1000Mbps fiber port.
  • Both UTP ports are autosensing with Auto MDI/MDI-X; one UTP port supports 802.3at PoE+.
  • Acts as power sourcing equipment (PSE) on the copper side to power PoE devices.
  • Features an extended temperature range when used with DC terminal-block power

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyGigabit Ethernet
USBNo
DVINo
Network (RJ-45)No
Management PortNo
Number of PoE+ (RJ-45) Ports2
Number of SC Ports1
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports3
Fiber Optic Wavelength1310 nm
TAA CompliantYes
Country of OriginUnited States
Height0.8"
Width3.6"
Depth3.8"
Brand NameBlack Box
Form FactorRail-mountable
ManufacturerBlack Box Corporation
Product ModelLGC5212A
Product NameLGC5212A Transceiver/Media Converter
Network Technology10/100/1000Base-TX
Manufacturer Part NumberLGC5212A
Manufacturer Website Addresshttp://www.blackbox.com
Marketing InformationFurther Details

This tough media converter is the ideal way extend your network over fiber and also power a PoE device. Use it to link to faraway PoE devices such as IP security cameras wireless access points and VoIP phones.

The media converter features two autosensing 10/100/1000 UTP ports plus one single-mode fiber port that can extend a network connection up to 15 kilometers (9.3 mi.). Both UTP ports supports 802.3at Power over Ethernet enabling it to power a PoE+ PD device; the other is a straightforward Ethernet port which can be used for network expansion.

The Gigabit PoE+ Media Converter can be powered three ways: from an AC power supply (LGC5210-PS order separately) via the DC power jack or via the DC terminal block. When used with DC power to the terminal block the converter supports an extended operating temperature range of +32 to +158° F (0 to +70° C).

The converter requires only one power source to power both the converter and a PoE+ device; you can position the PoE+ device up to 100 meters (328 feet) away from the converter enabling flexible placement of wireless APs and security cameras. A pair of input terminals and output terminals enables you to cascade DC power in a DIN rail installation (optional DIN Rail Clip (LXC-DR) is sold separately).
Maximum Distance Supported9.32 Mile
Power SourceAC Adapter
Limited Warranty6 Year
