MediaCento IPX HD is great for:

• Touchscreen applications using the iCOMPEL Digital Signage system.
• Basic HDMI video and audio extension direct point to point or point to multipoint over a gigabit Ethernet network.
• Streaming video to classrooms in schools.
• Corporate video sharing and training.
• Sharing video in command and control room setup.

HDMI HD video over IP

This IP-based video distribution solution uses existing standards-based Ethernet technology and TCP/IP protocols to unicast HDMI HD video signals on your Gigabit Ethernet network. In a multicast configuration one transmitter can drive multiple receivers with no extra network load.

HD means better video

The MediaCento IPX HD supports High Defenition video for great pictures up to 1080p.

Plug-and-play setup

Whether you choose to utilize existing LAN infrastructure or set up a dedicated video network setup is easy. For a unicast setup simply connect your source your display a network switch and you're ready to go!

PoE support for remote powering

The MediaCento IPX HD is PoE powered eliminating the need for additional power supplies. Using a PoE network switch completely eliminates the need for external power supplies making installation easier.

Create 8x8 video walls

For video streaming and multicasting video over a network to a video wall see our LPB2900 Series Gigabit PoE+ Managed Switches (LPB2910A LPB2926A LPB2952A).

Signals that go for miles

The MediaCento IPX HD Unicast system transmits up to 328 feet (100 m) point to point but goes even further with a network switch added to the mix.

Optimal PC-to-screen performance

MediaCento features EDID copy function and is HDCP 2.2-compliant.

Digital signage and video wall applications:

• Hospitality
• Bars/restaurants
• Retail
• Venues/events
• Corporate multi-room solutions

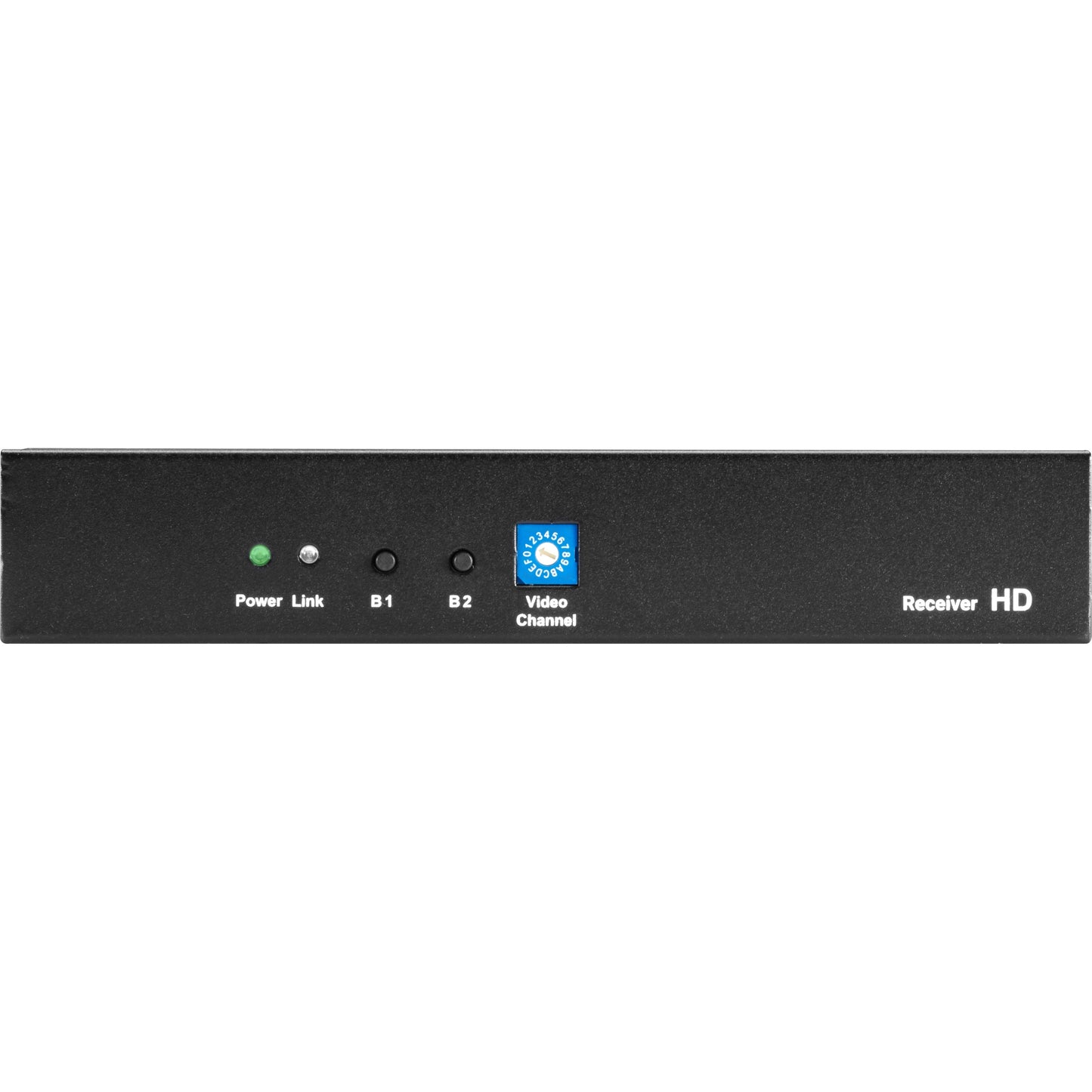

• MediaCento IPX HD Extender Receiver - HDMI-Over-IP
• 1 x 5-VDC 3-A Power Supply
• 1 x Quick Start Guide
