Black Box SM260A Pro Switching Gang Switch Chassis

• If you plan to daisy-chain multiple chassis the Controller Card in the first chassis controls the entire system.

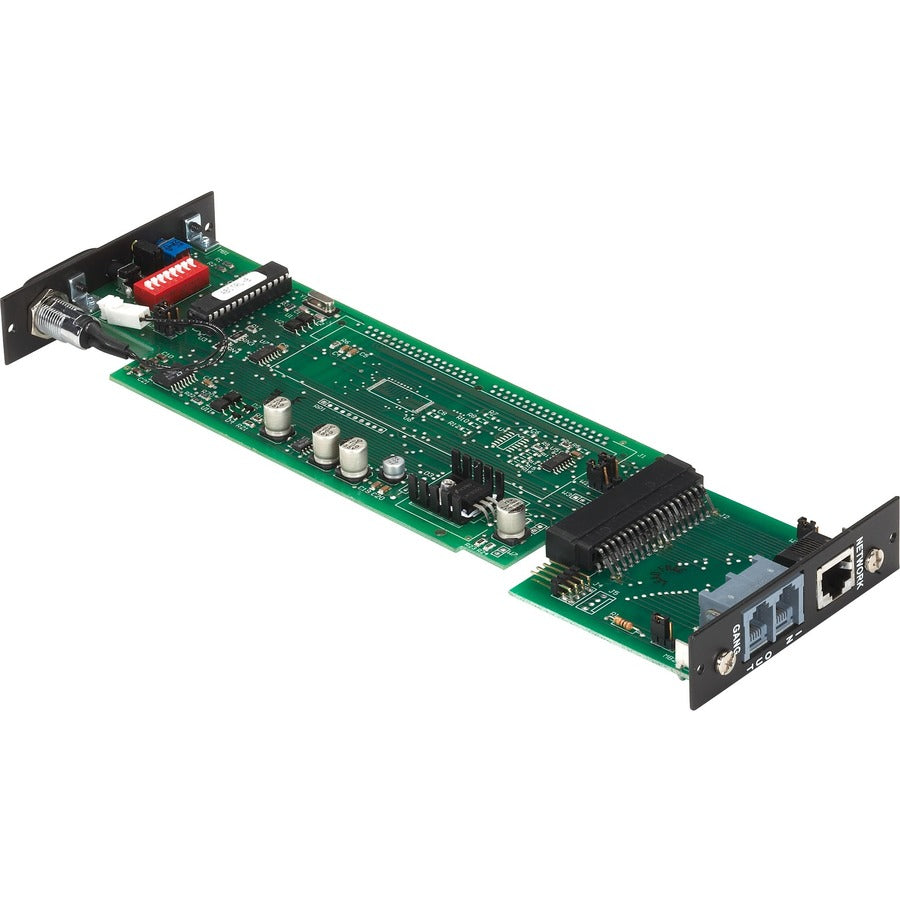

The advanced design of the Pro Switching System 2U (SM260A) gives incredible operational flexibility and performance. Switch one card individually or switch the entire chassis through a Controller Card. You'll need one Controller Card per rack chassis. If you plan to daisy-chain multiple chassis the Controller Card in the first chassis controls the entire system.

This card enables you to switch the chassis from anywhere via an RS-232 or IP connection.

We also offer an RS-232 Only Controller Card (SM263A) which enables you to gang switch via the manual toggle switch or with serial commands.

Or if you want to extend RS-232/IP control to a second daisy-chained Pro Switching System chassis order the SNMP Expansion Controller Card (SM264A). This enables you to send hardware control signals and control the daisy-chained system with RS-232 messages through the RS-232/Ethernet (SNMP) Controller Card (SM262A).

Ordering Instructions | First order the chassis...

Pro Switching System 2U 18-Card (SM260A)

Next order at least one power supply | Power Supply Cards:

Redundant Power Supply Cards (NOTE: cards requires two chassis slots.):

100 - 240-VAC Input (SM261A-VAC)

-48-VDC Input (SM261A-VDC)

Or order:

AC External Adapter Card (SM261A-CARD) ( NOTE: card requires one chassis slot.)

And at least one power supply (order two for redundant power)...

Power Supply 120 - 240 VAC External (SM961A-PS)

...then select a Controller Card...

RS-232/Ethernet (SNMP) (SM262A)

RS-232 Only (SM263A)

SNMP Expansion (SM264A)

...next choose your A/B Switch Cards...

DB25/RS-232 (SM265A)

DB25/RS-530 (SM266A)

Video F-Connector Latching (SM276A-LCH)

Video F-Connector Non-Latching (SM267A)

Multimode Fiber Optic:

ST® Latching (SM277A-MM-ST-LCH)

SC Latching (SM277A-MM-SC-LCH)

ST Non-Latching (SM277A-ST)

SC Non-Latching (SM277A-SC)

Single-Mode Fiber Optic:

ST Latching (SM278A-SS-ST-LCH)

SC Latching (SM278A-SS-SC-LCH)

ST Non-Latching (SM278A-ST)

SC Non-Latching (SM278A-SC)

RJ-45 Copper:

RJ-45 CAT5 (SM268A)

RJ-45 CAT6 (SM269A)

For empty slots order...

Blank Panel Front or Rear 2U (SM279A-BLNK)
