Black Box Pro Switching System Plus A/B Switch Card DB9
Black Box Pro Switching System Plus A/B Switch Card DB9
SKU: 1033798599 MFR: Black Box Corporation
GTIN: 822088117360
Product Description

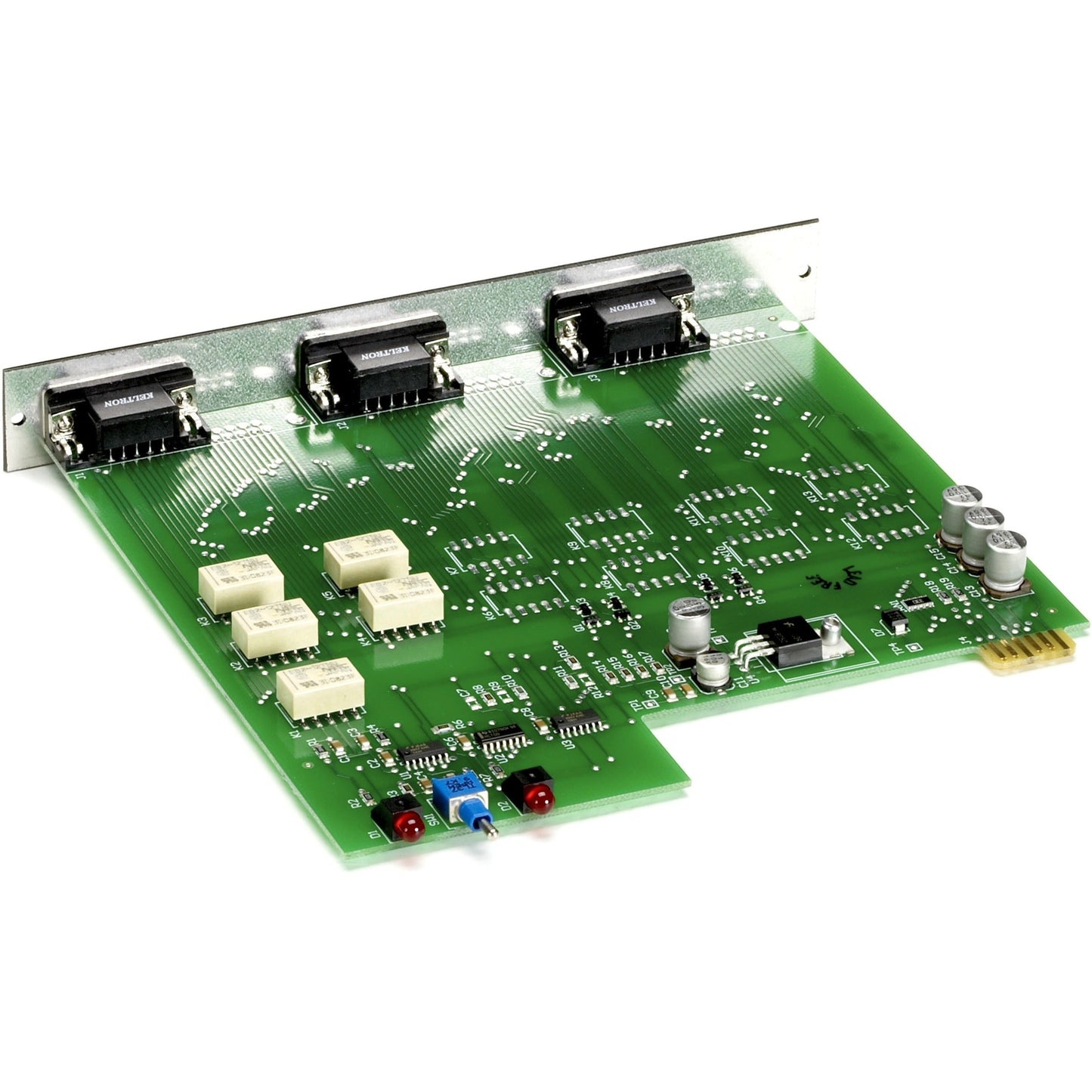

Black Box Pro Switching System Plus A/B Switch Card DB9 - For Switching Network - 3 x DB-9 - TAA Compliant
Manufacturer : Black Box Corporation
Manufacturer Part No : SM966A
Features
- Supports switching of all DB9 leads
- Latching will retain its connected state if power is lost
- Occupies one slot
- no jumpers or switch settings that need to be configured on the A/B Switch Cards
Product Details
The DB9 A/B switch latching card allows you to switch between two DB9 connections. If power is lost the connection will retain its connected state. Controller Cards take up only one slot and external power connects to the controller card One slot is reserved for future use leaving you with 16 slots for A/B Switch Cards.
All switch cards take up one slot except for the power A/B cards which take up two slots. Manage access to networks implement backup systems for network and computer connections or share peripherals and other equipment. Local features include LED status and manual switching.
Remote control (dry contact closure RS232 and Ethernet) provides unmatched management flexibility. Gang Switch systems are used around the world to add secure access control and reliable backup for critical systems from space launch centers to stock exchange networks.
Ordering instructions:
First order the chassis
- Gang Switch 4U 18-Card (SM960A)
Next order at least one power supply (order two for redundancy)
- External Power Supply 100- 240 VAC (SM961-PS)
- Internal Power Supply -48 VDC (SM760-PS1)
- Internal Power Supply Dual -48VDC (SM760-PS2)
Then select a Controller Card
- Ethernet (SNMP) (SM962A)
- Logic Only (SM964A)
Next choose your A/B Switch Cards
- Serial DBxx: DB25 A/B Latching (SM965A)
- DB9 A/B Latching (SM966A)
- DB15 A/B Latching (SM967A)
- Power: 240 VAC 1 in 2 out (SM971)
- 120 VAC 2 in 1 out (SM973)
- Video: 75-ohm F-Connector (SM976A)
- Multimode: SC Latching (SM977A-SC)
- ST Latching (SM977A-ST)
- RJ45 Copper: CAT5e Latching (SM978A)
- CAT6 Latching (SM979A)
This product works with Power Supply (SM961-PS) A/B Switch Cards (SM965A etc.)
Out Of Stock
Update
Couldn't load pickup availability
![Black Box Pro Switching System Plus A/B Switch Card DB9](http://tekmentum.com/cdn/shop/files/1033798599.jpg?v=1695157552&width=1445)
![Black Box Pro Switching System Plus A/B Switch Card DB9](http://tekmentum.com/cdn/shop/files/1033798599_81ba0df7-9601-4411-b9a7-dad289f9e718.jpg?v=1698384132&width=1445)
Black Box Pro Switching System Plus A/B Switch Card DB9 - For Switching Network - 3 x DB-9 - TAA Compliant
Manufacturer : Black Box Corporation
Manufacturer Part No : SM966A
Features
- Supports switching of all DB9 leads
- Latching will retain its connected state if power is lost
- Occupies one slot
- no jumpers or switch settings that need to be configured on the A/B Switch Cards
Product Details
The DB9 A/B switch latching card allows you to switch between two DB9 connections. If power is lost the connection will retain its connected state. Controller Cards take up only one slot and external power connects to the controller card One slot is reserved for future use leaving you with 16 slots for A/B Switch Cards.
All switch cards take up one slot except for the power A/B cards which take up two slots. Manage access to networks implement backup systems for network and computer connections or share peripherals and other equipment. Local features include LED status and manual switching.
Remote control (dry contact closure RS232 and Ethernet) provides unmatched management flexibility. Gang Switch systems are used around the world to add secure access control and reliable backup for critical systems from space launch centers to stock exchange networks.
Ordering instructions:
First order the chassis
- Gang Switch 4U 18-Card (SM960A)
Next order at least one power supply (order two for redundancy)
- External Power Supply 100- 240 VAC (SM961-PS)
- Internal Power Supply -48 VDC (SM760-PS1)
- Internal Power Supply Dual -48VDC (SM760-PS2)
Then select a Controller Card
- Ethernet (SNMP) (SM962A)
- Logic Only (SM964A)
Next choose your A/B Switch Cards
- Serial DBxx: DB25 A/B Latching (SM965A)
- DB9 A/B Latching (SM966A)
- DB15 A/B Latching (SM967A)
- Power: 240 VAC 1 in 2 out (SM971)
- 120 VAC 2 in 1 out (SM973)
- Video: 75-ohm F-Connector (SM976A)
- Multimode: SC Latching (SM977A-SC)
- ST Latching (SM977A-ST)
- RJ45 Copper: CAT5e Latching (SM978A)
- CAT6 Latching (SM979A)
This product works with Power Supply (SM961-PS) A/B Switch Cards (SM965A etc.)
