The power of transparent USB
The ServSwitch Wizard™ USB SRX KVM Extender single-video from Black Box combines VGA USB 1.1 or USB 2.0 and audio and sends them up to 164 feet across a single CATx cable. It's easy to fine-tune the video image on the remote unit and get crystal-clear stereo audio and transparent USB.

DDC EDID read and store support
Modern graphics adapter cards - even with analog output - require the presence of Display Data Channel (DDC) information. Without it they output low-quality video or none at all. The ServSwitch Wizard USB SRX Extender reads the DDC information from the attached display and stores it in the local unit's non-volatile memory.

Small form factor
The ServSwitch Wizard USB SRX KVM Extender's compact chassis enables you to mount it side by side in the Rackmount Chassis for ServSwitch KVM Extender (ACU5000A). Use it to mount up to 16 single-video units in just 2U.

Local access
The local unit features audio and VGA feed-through giving you local access just by plugging a keyboard and mouse directly into the spare PC USB ports.

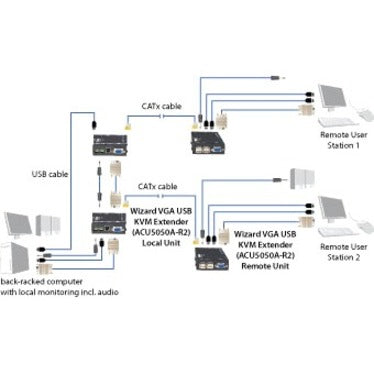

Dual-user configuration
With two single-video units you can connect two workstations with keyboards monitors and mice to one CPU tower. Two users can use local connections to monitor and diagnose the CPU. This setup is ideal for a remote CPU that doesn't need to be monitored simultaneously by two users.

• 1 x Transmitter
• 1 x Receiver
• 1 x VGA M/M cable (all pins) 1.8m (6 ft.)
• 1 x 3.5mm audio cable 3m (10 ft.)
• 1 x USB Type A B cable 1.8m (6 ft.)
• 2 x sets of rubber feet
• 1 x 5VDC 2.5Amp external power supply
