Intelligent options port
With advanced support for multiple high-speed USB devices the ServSwitch Wizard VGA USB serves today's busy multitaskers quite well. It enables a single KVM workstation user to control four separate computer systems or servers and flexibly share peripherals among them.

ServSwitch Wizard VGA supports a wide range of USB devices especially high-speed USB 2.0 peripherals on its switched USB ports. Printers scanners and non-standard HID devices can all be attached. For instance you can create e-mails on one system listen to audio on a second one print from a third computer and scan documents on a Flash drive - all at the same time.

This highly flexible KVM switch is ideal for IT administrators and medical imaging graphic design and broadcast studio professionals who not only require quick reliable access to multiple computer CPUs and multiple video channels but also need simultaneous access to a mix of USB peripherals.

Select a channel on the ServSwitch Wizard VGA using hotkeys a three-button mouse or the switch's front-panel controls. When auto-scan is enabled the switch cycles between connected computers in sequence automatically. A seven-segment numeric display indicates the selected channel.

The switch is also available in models with dual triple or quad VGA video connectors on each of its four computer channels (KV3204A KV3304A and KV3404A) providing you with easy access to two three or four video heads on each channel. For DVI support see the ServSwitch Wizard DVI Dual-Link with True USB Emulation models (KV2X04A series).

Each video head channel on this high-quality switch supports VGA video. Plus it supports high resolutions whether you need a 1920 x 1200 video for post-production type work or 1920 x 1200 image clarity for very detailed medical or R and D lab imaging.

Each computer channel on the ServSwitch Wizard VGA has USB Type B and 3.5-mm audio jack inputs.

Multicomputer and multi-peripheral access
This high-performance multimedia switching platform offers more than just straight switching between four computer systems.

You can also use a KVM console to work on one computer while your favorite USB devices remain connected to other computers all easily accessible to you. And because the ServSwitch Wizard VGA supports audio connectivity you can connect speakers to yet another computer (audio can be switched independently from USB and video).

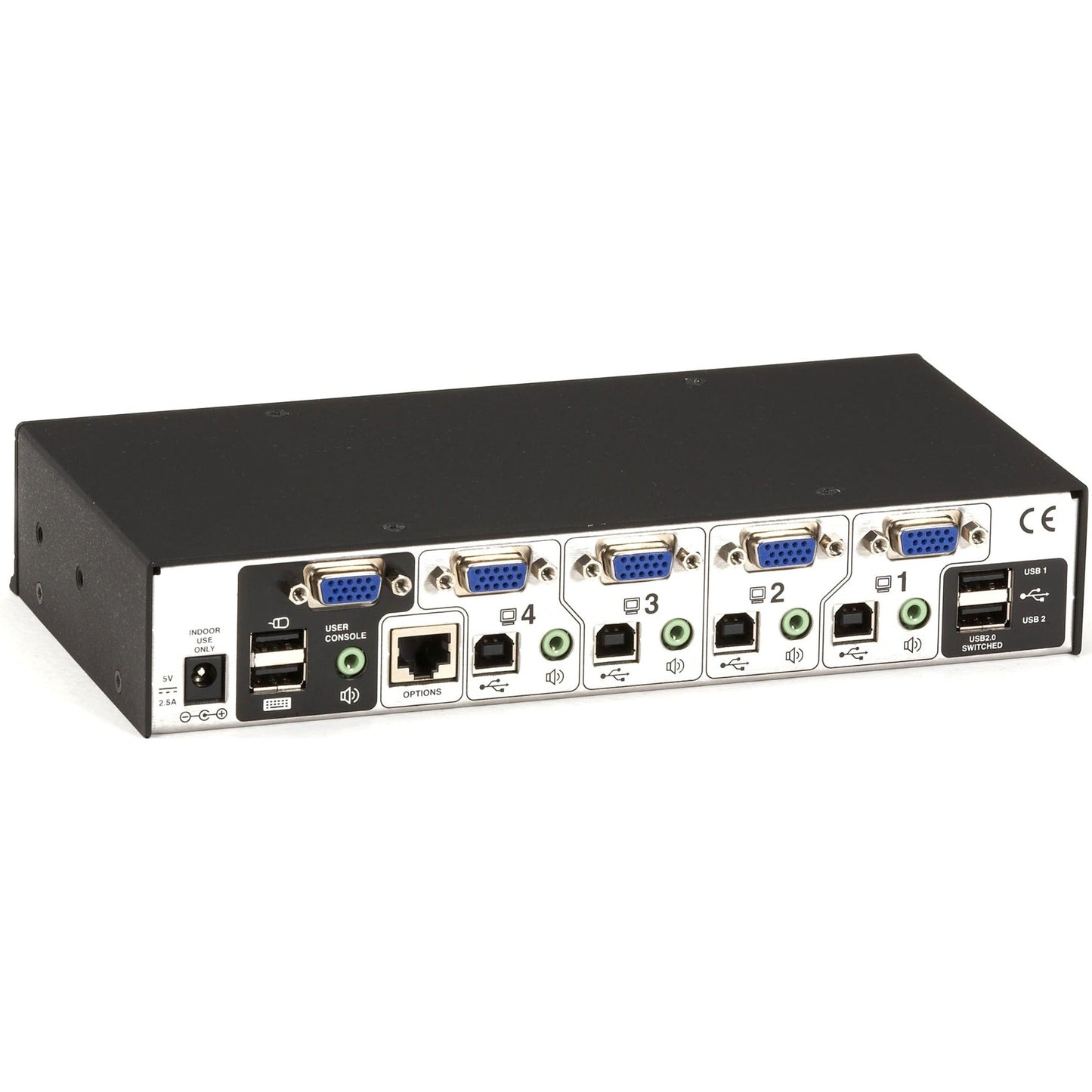

The ServSwitch Wizard Dual-Link VGA's rear panel has two USB Type-A ports as part of its KVM user console connections plus separate switched USB Type-A ports for additional USB 2.0 connectivity. You can reassign any of the connected USB peripherals to any of the connected computers quickly. The attached devices can either be switched in unison or you can mix peripherals between any of the systems.

• ServSwitch Wizard VGA USB KVM switch unit
• 1 x AC power adapter
• 4 x Self-Adhesive Rubber Feet
• Safety Guide
