Black Box Switching Module

Black Box Switching Module

SKU: 1041113148      MFR: Black Box Corporation

Product Description

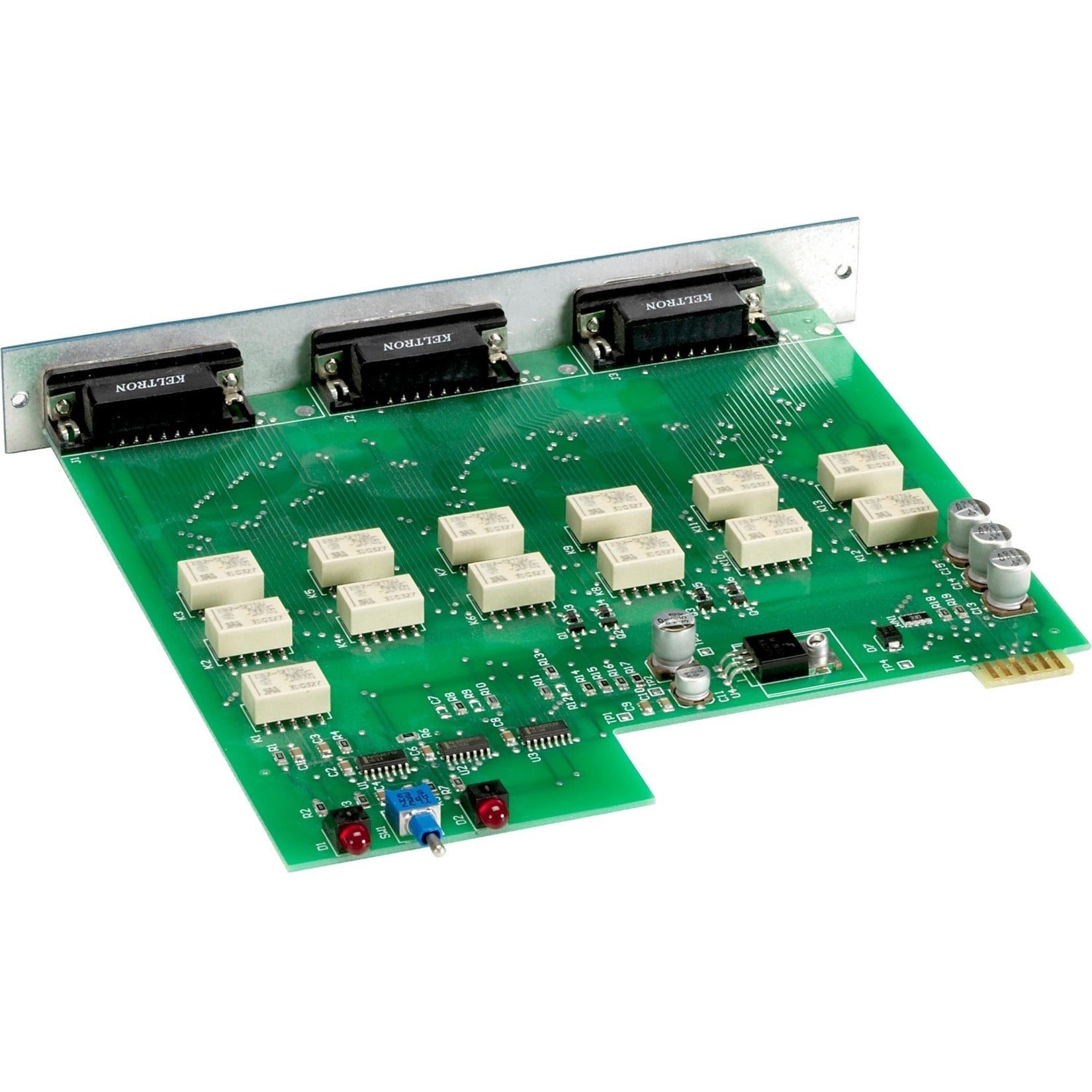

Black Box Switching Module - For Switching Network - 3 x DB-15 - TAA Compliant

Manufacturer : Black Box Corporation

Manufacturer Part No : SM967A

Features

  • Supports switching of all DB15 leads
  • Latching will retain connected state if power is lost
  • Occupies one slot
  • No jumpers or switch settings that need to be configured on the A/B Switch Cards

Product Details

Product TypeSwitching Module
TAA CompliantYes
Brand NameBlack Box
Total Number of Ports3
Country of OriginUnited States
Height3"
Width8.3"
Depth9.3"
Connector TypeDB-15
Compatibility

Black Box SM960A Pro Switching Gang Switch Chassis
ManufacturerBlack Box Corporation
Product NameSwitching Module
Application/UsageSwitching Network
Manufacturer Part NumberSM967A
Manufacturer Website Addresshttp://www.blackbox.com
Marketing InformationThe DB15 A/B switch latching card allows you to switch between two DB15 connections. If power is lost the connection will retain its connected state. Controller Cards take up only one slot and external power connects to the controller card One slot is reserved for future use leaving you with 16 slots for A/B Switch Cards.

All switch cards take up one slot except for the power A/B cards which take up two slots. Manage access to networks implement backup systems for network and computer connections or share peripherals and other equipment. Local features include LED status and manual switching.

Remote control (dry contact closure RS232 and Ethernet) provides unmatched management flexibility. Gang Switch systems are used around the world to add secure access control and reliable backup for critical systems from space launch centers to stock exchange networks.

Ordering instructions:

First order the chassis

  • Gang Switch 4U 18-Card (SM960A)

Next order at least one power supply (order two for redundancy)

  • External Power Supply 100- 240 VAC (SM961-PS)
  • Internal Power Supply -48 VDC (SM760-PS1)
  • Internal Power Supply Dual -48VDC (SM760-PS2)

Then select a Controller Card

  • Ethernet (SNMP) (SM962A)
  • Logic Only (SM964A)

Next choose your A/B Switch Cards

  • Serial DBxx: DB25 A/B Latching (SM965A)
  • DB9 A/B Latching (SM966A)
  • DB15 A/B Latching (SM967A)
  • Power: 240 VAC 1 in 2 out (SM971)
  • 120 VAC 2 in 1 out (SM973)
  • Video: 75-ohm F-Connector (SM976A)
  • Multimode: SC Latching (SM977A-SC)
  • ST Latching (SM977A-ST)
  • RJ45 Copper: CAT5e Latching (SM978A)
  • CAT6 Latching (SM979A)

This product works with Power Supply (SM961-PS) A/B Switch Cards (SM965A etc.)
Interfaces/Ports Details3 x DB-15
Limited Warranty1 Year
Weight (Approximate)0.87 lb
View full details
$270.99 USD
$270.99
Sale Sold out

Back Order

Get it by Sun, Jul 26 - Fri, Jul 31


Update


Shipping calculated at checkout.
