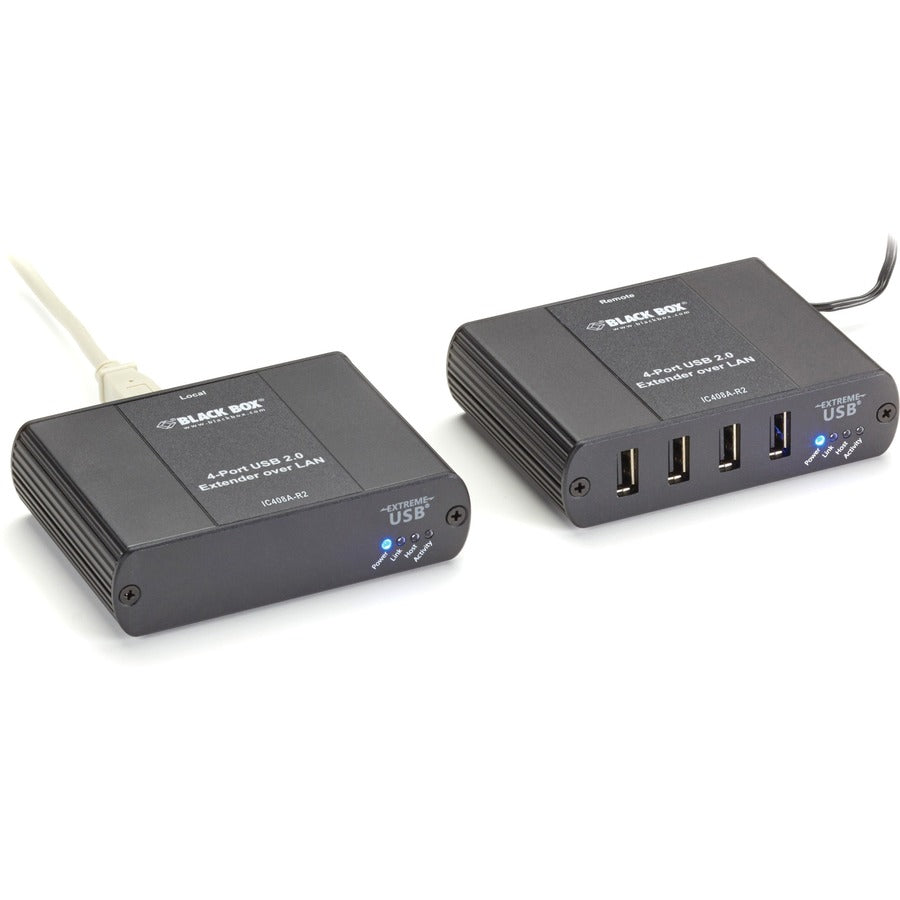

Black Box USB 2.0 Extender - CATx/LAN 4-Port
Black Box USB 2.0 Extender - CATx/LAN 4-Port
SKU: 1045002717 MFR: Black Box Corporation
GTIN: 822088125716
Product Description
Black Box USB 2.0 Extender - CATx/LAN 4-Port - 2 x Network (RJ-45) - 5 x USB - 328.08 ft Extended Range
Manufacturer : Black Box Corporation
Manufacturer Part No : IC408A-R2
Features
- Transmits up to 328 feet (100 m) over CATx or over a LAN.
- Includes a local unit and remote unit with four USB 2.0 ports.
- Supplies 1A max power to the USB devices.
- Extends USB signals at speeds up to 480 Mbps.
- Plug and play. No drivers to install on your computer.
- Works with Windows® Mac® OS X® and Linux® systems.
Product Details
Extend a USB 2.0 connection beyond the 16 ft (5 m) limitation over a CATx link 328 ft (100 m) or over an Ethernet LAN to four peripherals. Extend a USB connection beyond the desktop to peripherals for applications such as indistrial control KVM extension Digital Sinage Remote Desktop USB connections Security web cameras and access control Medical device connectivity USB Web device sharing: printing scanning storage. The extender can be used in industrial control factory floor classroom or meeting room applications The extender supplies up to 600 mA to the downstream USB device and offers reliable operation with USB 1.1 and USB 2.0 devices.
- Local Extender Unit
- Remote Extender Unit
- USB Cable
- Power Adapter
- US Power Cord
- Quick Start Guide
- Distance Between local and remote units in a direct CATx application and between network switches: 328 ft. (100 m)* maximum
- Network Operation When used to extend over an Ethernet IP network: Data traffic: Layer 2; Management traffic: Layer 3 (dynamic or static IP assignments)
- Operating Humidity 20 to 80% noncondensing
- Operating Temperature 32 to 122° F (0 to 50°C)
- Power Input From 100-240 VAC 50-60 Hz adapter (included)
- Power Output 24 VDC
- RoHS Yes
- Speeds Up to 480 Mbps*
- Standards FCC (Class B) IC (Class B) CE (Class B); ESD Rating: EMC EN-61000-4-2:2001 8kV Contact 16kV Air
- Storage Humidity 10 to 90% noncondensing
- Connectors Local unit: USB: (1) USB Type B F; Interconnect: (1) RJ-45; Remote unit: USB: (4) USB Type A F; Interconnect: (1) RJ-45
- Dimensions 1"H x 3.9"W x 3"D (2.6 x 10 x 7.6 cm)
- Indicators On each unit: (4) LEDs (Power Link Host Activity)
- Weight 3.1 lb (1.4 kg)
Dropship
Update
Couldn't load pickup availability
![USB 2.0 EXTENDER 4 PORT CATX/LA](http://tekmentum.com/cdn/shop/files/1045002717.jpg?v=1694768595&width=1445)
Black Box USB 2.0 Extender - CATx/LAN 4-Port - 2 x Network (RJ-45) - 5 x USB - 328.08 ft Extended Range
Manufacturer : Black Box Corporation
Manufacturer Part No : IC408A-R2
Features
- Transmits up to 328 feet (100 m) over CATx or over a LAN.
- Includes a local unit and remote unit with four USB 2.0 ports.
- Supplies 1A max power to the USB devices.
- Extends USB signals at speeds up to 480 Mbps.
- Plug and play. No drivers to install on your computer.
- Works with Windows® Mac® OS X® and Linux® systems.
Product Details
Extend a USB 2.0 connection beyond the 16 ft (5 m) limitation over a CATx link 328 ft (100 m) or over an Ethernet LAN to four peripherals. Extend a USB connection beyond the desktop to peripherals for applications such as indistrial control KVM extension Digital Sinage Remote Desktop USB connections Security web cameras and access control Medical device connectivity USB Web device sharing: printing scanning storage. The extender can be used in industrial control factory floor classroom or meeting room applications The extender supplies up to 600 mA to the downstream USB device and offers reliable operation with USB 1.1 and USB 2.0 devices.
- Local Extender Unit
- Remote Extender Unit
- USB Cable
- Power Adapter
- US Power Cord
- Quick Start Guide
- Distance Between local and remote units in a direct CATx application and between network switches: 328 ft. (100 m)* maximum
- Network Operation When used to extend over an Ethernet IP network: Data traffic: Layer 2; Management traffic: Layer 3 (dynamic or static IP assignments)
- Operating Humidity 20 to 80% noncondensing
- Operating Temperature 32 to 122° F (0 to 50°C)
- Power Input From 100-240 VAC 50-60 Hz adapter (included)
- Power Output 24 VDC
- RoHS Yes
- Speeds Up to 480 Mbps*
- Standards FCC (Class B) IC (Class B) CE (Class B); ESD Rating: EMC EN-61000-4-2:2001 8kV Contact 16kV Air
- Storage Humidity 10 to 90% noncondensing
- Connectors Local unit: USB: (1) USB Type B F; Interconnect: (1) RJ-45; Remote unit: USB: (4) USB Type A F; Interconnect: (1) RJ-45
- Dimensions 1"H x 3.9"W x 3"D (2.6 x 10 x 7.6 cm)
- Indicators On each unit: (4) LEDs (Power Link Host Activity)
- Weight 3.1 lb (1.4 kg)
