DSA E2800 represents the next generation of DSA E-Series the iSCSI-based digital video disk arrays by Bosch. They are state-of-the-art platforms designed for the security industries most demanding digital video storage applications to manage relentlessly growing digital video data.

System overview

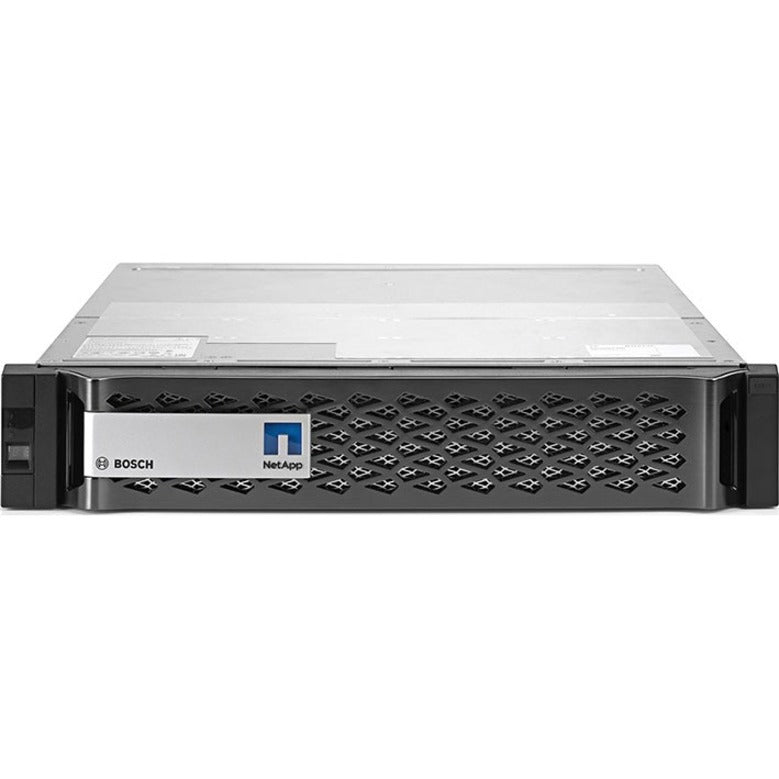

DSA E2800 is based on one 2U controller unit with 12 internal 3.5" 7.2 K NL-SAS (Serial Attached SCSI) enterprise HDDs (Nearline SAS).

The controller unit is available as a standard single controller configuration and as a dual controller configuration for high availability requirements.

This storage system is a high-performance solution designed with robust flexibility that makes it a greatfit for wide-ranging video surveillance requirements.Its balanced performance is designed for supporting high bandwidth and I/O intensive workloads.

The DSA E2800 fully redundant I/O paths advanced protection features and extensive diagnostic capabilities deliver high levels of availability integrityand security.

DSA E2800 is the co-branded E2800 series from NetApp. It is a scale-up network storage solution that provides security highest "in-the-box" scalability peace-of-mind data protection and simplified management of all your video data.

DSA E2800 in single or dual controller configuration allows connecting up to seven 12-bay expansion units(12 x HDDs per expansion shelf) to one single or dual controller base unit.

It is a fully featured hardware RAID/DDP protected disk array which provides RAID-5 protection for capacity-oriented environments and RAID-6/DDP protection for availability-oriented environments.

High reliability and availability

DSA E2800 keeps your data safe and available with redundant hot-swappable power supplies and fans and protects from double-disk failure and single bit errors during rebuilds with high performance RAID-6or DDP.

Its redundant components automated path failoverand online administration keep organizations productive 24 x 7 x 365.

Further high-availability features include:

• Automatic drive failover and detection and rebuild if using global hot spare drives
• Data cache with battery backup and de-stage to flash
• SANtricity proactive drive health monitoring identifies problem drives before they create issues

Monitoring

Full SNMP support with MIB-II and NetApp custom MIBs is provided. In case of component failures SNMP e-mail alert notifications will be generated. Additionally an event monitor for sending alert notifications to a central major event log is available.

If the device is connected to the Internet/Intranet automatically generated Auto Support messages canbe sent which helps to prevent issues before they occur.
