• CCS 1000 D DISCUSSION DEVICE
    CCS 1000 D DISCUSSION DEVICE
1 1

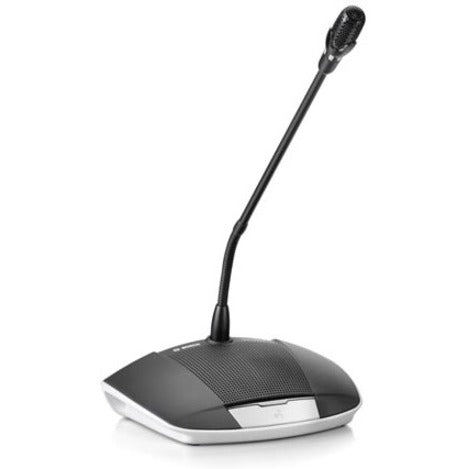

Bosch CCSD-DL Wired Microphone - Black Gray

Bosch CCSD-DL Wired Microphone - Black Gray

SKU: 1032064128      MFR: The Bosch Group

GTIN: 800549759267

Product Description

Bosch CCSD-DL Wired Microphone - Black Gray - 200 Hz to 12.50 kHz - Desktop

Manufacturer : The Bosch Group

Manufacturer Part No : CCSD-DL

Features

  • Capable to throw a crisp and clear audibility with 200 Hz - 12.50 kHz frequency response
  • Can be placed on a desk and let you experience the opulence of having the mic close to the face while speaking

Product Details

Product TypeMicrophone
Minimum Frequency Response200 Hz
Maximum Frequency Response12.50 kHz
ColorBlack
Connectivity TechnologyWired
Brand NameBosch
Microphone TypeDesktop
Host InterfaceProprietary
Environmentally FriendlyYes
Environmental CertificationWEEE
Country of OriginChina
Height2.5"
Width8"
Depth5.7"
ManufacturerThe Bosch Group
Product ModelCCSD-DL
Product NameDiscussion device With Long Microphone
Manufacturer Part NumberCCSD-DL
Manufacturer Website Addresshttp://www.bosch.com
Marketing InformationDiscussion Devices are connected in a daisy-chain configuration to the Control Unit of a CCS 1000 Digital Discussion System. Their plug-and-play functionality allows them to be conveniently connected to and removed from the system as required. A power down or restart of the system is not necessary which ensures for fast installation and reconfiguration times. Participants can take part in a discussion by speaking into the microphone and listening to proceedings through the built-in loudspeaker or (optional) headphones.
Packaged Quantity1
Weight (Approximate)2.20 lb
Additional Information
  • Power consumption : 1.3 W
  • Frequency response : 30 Hz to 20 kHz (System electrical)
  • THD : <0.5 %
  • S/N : >93 dBA
  • Sampling rate : 44.1 kHz
  • Headphones load impedance : > 32 ohms < 1k ohm
  • Loudspeaker max. peak output power : 4 W
  • Loudspeaker nominal output : 72 dB SPL
  • Microphone polar pattern : Cardioid
  • Microphone nominal input : 85 dB SPL
  • Mounting : Tabletop (portable or fixed)
  • Material (top) : Plastic ABS+PC
  • Material (base) : Metal ZnAl4
  • Operating temperature : 0 ºC to +35 ºC (+32 ºF to +95 ºF)
  • Storage and transport temperature : -40 ºC to +70 ºC(-40 ºF to +158 ºF)
  • Relative humidity : 5% to 98% non-condensing
  • Air pressure : 600 to 1100 hPa
View full details
$679.99 USD
$679.99
Sale Sold out

Dropship

Get it by Sat, Dec 14 - Thu, Dec 19


Update


Shipping calculated at checkout.

Bosch CCSD-DL Wired Microphone - Black Gray - 200 Hz to 12.50 kHz - Desktop

Manufacturer : The Bosch Group

Manufacturer Part No : CCSD-DL

Features

  • Capable to throw a crisp and clear audibility with 200 Hz - 12.50 kHz frequency response
  • Can be placed on a desk and let you experience the opulence of having the mic close to the face while speaking

Product Details

Product TypeMicrophone
Minimum Frequency Response200 Hz
Maximum Frequency Response12.50 kHz
ColorBlack
Connectivity TechnologyWired
Brand NameBosch
Microphone TypeDesktop
Host InterfaceProprietary
Environmentally FriendlyYes
Environmental CertificationWEEE
Country of OriginChina
Height2.5"
Width8"
Depth5.7"
ManufacturerThe Bosch Group
Product ModelCCSD-DL
Product NameDiscussion device With Long Microphone
Manufacturer Part NumberCCSD-DL
Manufacturer Website Addresshttp://www.bosch.com
Marketing InformationDiscussion Devices are connected in a daisy-chain configuration to the Control Unit of a CCS 1000 Digital Discussion System. Their plug-and-play functionality allows them to be conveniently connected to and removed from the system as required. A power down or restart of the system is not necessary which ensures for fast installation and reconfiguration times. Participants can take part in a discussion by speaking into the microphone and listening to proceedings through the built-in loudspeaker or (optional) headphones.
Packaged Quantity1
Weight (Approximate)2.20 lb
Additional Information
  • Power consumption : 1.3 W
  • Frequency response : 30 Hz to 20 kHz (System electrical)
  • THD : <0.5 %
  • S/N : >93 dBA
  • Sampling rate : 44.1 kHz
  • Headphones load impedance : > 32 ohms < 1k ohm
  • Loudspeaker max. peak output power : 4 W
  • Loudspeaker nominal output : 72 dB SPL
  • Microphone polar pattern : Cardioid
  • Microphone nominal input : 85 dB SPL
  • Mounting : Tabletop (portable or fixed)
  • Material (top) : Plastic ABS+PC
  • Material (base) : Metal ZnAl4
  • Operating temperature : 0 ºC to +35 ºC (+32 ºF to +95 ºF)
  • Storage and transport temperature : -40 ºC to +70 ºC(-40 ºF to +158 ºF)
  • Relative humidity : 5% to 98% non-condensing
  • Air pressure : 600 to 1100 hPa
