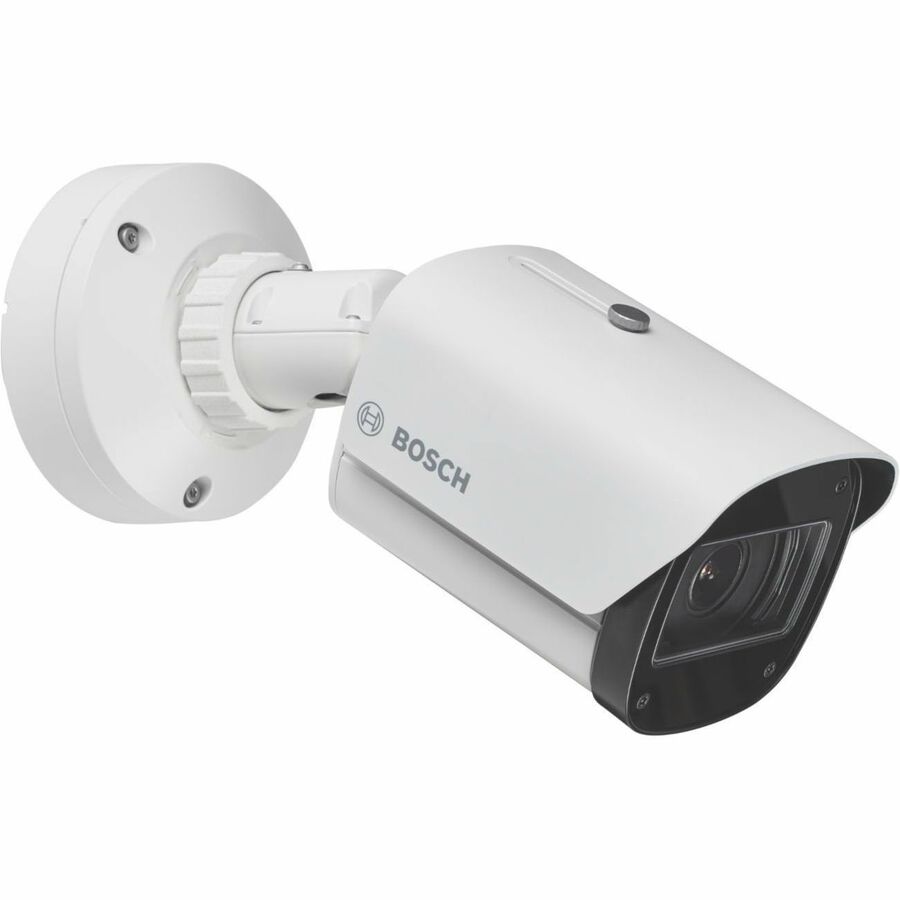

• Bosch Dinion NBE-7703-ALX 4 Megapixel Indoor/Outdoor Network Camera - Color - Bullet
    Bosch Dinion NBE-7703-ALX 4 Megapixel Indoor/Outdoor Network Camera - Color - Bullet
1 1

Bosch Dinion NBE-7703-ALX 4 Megapixel Indoor/Outdoor Network Camera - Color - Bullet

Bosch Dinion NBE-7703-ALX 4 Megapixel Indoor/Outdoor Network Camera - Color - Bullet

SKU: 1077421758      MFR: The Bosch Group

GTIN: 800549984614

Product Description

Bosch Dinion NBE-7703-ALX 4 Megapixel Indoor/Outdoor Network Camera - Color - Bullet - 262.47 ft Infrared Night Vision - H.264 MJPEG H.265/HEVC H.265 - 2688 x 1520 - 4.70 mm- 10 mm Varifocal Lens - 2.1x Optical - CMOS - Fast Ethernet - USB - Surface Mount - IK10 - IP66 IP67 - Dust Resistant Corrosion Resistant Rain Resistant Tamper Resistant Water Proof Water Resistant

Manufacturer : The Bosch Group

Manufacturer Part No : NBE-7703-ALX

Features

  • Starlight X technology for next level low-light performance with maximum detail
  • HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts
  • IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
  • Powerful long range (850nm) intelligent IR illumination up to 80 m (262 ft) optional invisible IR (940nm) or white light
  • Extremely robust and stable design with exceptional corrosion resistance for any outdoor application including traffic monitoring critical infrastructure and perimeter security

Product Details

Product TypeNetwork Camera
Maximum Aperturef/1.35
Environmentally FriendlyYes
Environmental CertificationRoHS
Image Sensor Size1/1.8"
Maximum Video Resolution2688 x 1520
Maximum Focal Length10 mm
Minimum Focal Length4.70 mm
Image Sensor TypeCMOS
Effective Camera Resolution4 Megapixel
Ethernet TechnologyFast Ethernet
USBYes
Minimum Operating Temperature-40°F (-40°C)
Maximum Operating Temperature140°F (60°C)
Network (RJ-45)Yes
Remote ManagementYes
Night VisionYes
Minimum Aperturef/1.97
HD RecordingYes
Night Vision Distance262.47 ft
Storage TypeMemory Card
Indoor/OutdoorIndoor/Outdoor
Operating Humidity100%
Product ColorWhite
Impact Protection RatingIK10
Ingress Protection RatingIP66
Night Vision TypeInfrared
Diameter5.8"
Height4.5"
Color SupportedColor
Connectivity TechnologyWired
Product Series7100i
Optical Zoom2.1x
Brand NameBosch
DurabilityDust Resistant
FeaturesAudio Compression
Form FactorBullet
Lens TypeVarifocal
ManufacturerThe Bosch Group
Product ModelNBE-7703-ALX
Product NameBullet 4MP HDR X 4.7-10mm IP66/67 IK10
Mount TypeSurface Mount
Product LineDinion
Video FormatsH.264
Manufacturer Part NumberNBE7703ALX
Manufacturer Website Addresshttp://www.bosch.com
ProtocolsIPv4
Weight (Approximate)6.50 lb
Product FamilyDinion 7100i
Maximum Frame Rate60 fps
Field of ViewField of View wide (H x V) 103° x 53°/Field of View tele (H x V) 49° x 27°
Lens IncludedYes
Power Source TypePoE
Input Voltage24 V AC
View full details
$2,457.99 USD
$2,457.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

Bosch Dinion NBE-7703-ALX 4 Megapixel Indoor/Outdoor Network Camera - Color - Bullet - 262.47 ft Infrared Night Vision - H.264 MJPEG H.265/HEVC H.265 - 2688 x 1520 - 4.70 mm- 10 mm Varifocal Lens - 2.1x Optical - CMOS - Fast Ethernet - USB - Surface Mount - IK10 - IP66 IP67 - Dust Resistant Corrosion Resistant Rain Resistant Tamper Resistant Water Proof Water Resistant

Manufacturer : The Bosch Group

Manufacturer Part No : NBE-7703-ALX

Features

  • Starlight X technology for next level low-light performance with maximum detail
  • HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts
  • IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
  • Powerful long range (850nm) intelligent IR illumination up to 80 m (262 ft) optional invisible IR (940nm) or white light
  • Extremely robust and stable design with exceptional corrosion resistance for any outdoor application including traffic monitoring critical infrastructure and perimeter security

Product Details

Product TypeNetwork Camera
Maximum Aperturef/1.35
Environmentally FriendlyYes
Environmental CertificationRoHS
Image Sensor Size1/1.8"
Maximum Video Resolution2688 x 1520
Maximum Focal Length10 mm
Minimum Focal Length4.70 mm
Image Sensor TypeCMOS
Effective Camera Resolution4 Megapixel
Ethernet TechnologyFast Ethernet
USBYes
Minimum Operating Temperature-40°F (-40°C)
Maximum Operating Temperature140°F (60°C)
Network (RJ-45)Yes
Remote ManagementYes
Night VisionYes
Minimum Aperturef/1.97
HD RecordingYes
Night Vision Distance262.47 ft
Storage TypeMemory Card
Indoor/OutdoorIndoor/Outdoor
Operating Humidity100%
Product ColorWhite
Impact Protection RatingIK10
Ingress Protection RatingIP66
Night Vision TypeInfrared
Diameter5.8"
Height4.5"
Color SupportedColor
Connectivity TechnologyWired
Product Series7100i
Optical Zoom2.1x
Brand NameBosch
DurabilityDust Resistant
FeaturesAudio Compression
Form FactorBullet
Lens TypeVarifocal
ManufacturerThe Bosch Group
Product ModelNBE-7703-ALX
Product NameBullet 4MP HDR X 4.7-10mm IP66/67 IK10
Mount TypeSurface Mount
Product LineDinion
Video FormatsH.264
Manufacturer Part NumberNBE7703ALX
Manufacturer Website Addresshttp://www.bosch.com
ProtocolsIPv4
Weight (Approximate)6.50 lb
Product FamilyDinion 7100i
Maximum Frame Rate60 fps
Field of ViewField of View wide (H x V) 103° x 53°/Field of View tele (H x V) 49° x 27°
Lens IncludedYes
Power Source TypePoE
Input Voltage24 V AC
