• Bosch End-of-line Supervision Board
    Bosch End-of-line Supervision Board
1 1

Bosch End-of-line Supervision Board

Bosch End-of-line Supervision Board

SKU: 1028978964      MFR: The Bosch Group

GTIN: 800549134163

Product Description

Bosch End-of-line Supervision Board - 6

Manufacturer : The Bosch Group

Manufacturer Part No : PLN-1EOL

Product Details

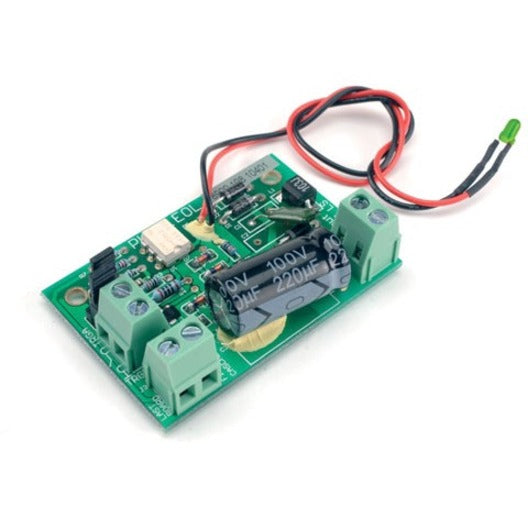

Marketing InformationA Plena end-of-line board is a PCB designed to detect the 20 kHz pilot tone generated by a supervised public address or voice alarm system. It activates a voltage free switch in the presence of a 20 kHz signal (pilot tone) above 5 V as well as an LED for easy visual confirmation of operation.

Functions

 Plena end-of-line boards monitor the presence of a pilot tone on a loudspeaker line. The board connects at the end of a loudspeaker line and detects the 20 kHz pilot tone signal. This signal is always present on the line: when back ground music (BGM) is playing when a call is in progress and when no signal is present. The 20 kHz tone is inaudible and at a very low level (-20dB). When the pilot tone signal is present an LED lights up and a contact on the board is closed. When the pilot tone fails the contact opens and the LED goes off. If mounted at the end of the loudspeaker line this applies to the integrity of the whole line. Presence of the pilot tone signal does not depend on the number of loudspeakers on the line the load on the line or the line capacitance. The contact can be connected to a PA system such as the Bosch Voice Alarm System to detect and report faults on a loudspeaker line.

Several EOL boards can be daisy-chained to a single fault input. This allows a loudspeaker line with several branches to be monitored.

Since the background music also includes a 20 kHz pilot tone signal there is no need to interrupt background music.
Packaged Quantity6
Product TypeEnd of Line (EOL) Supervision Board
Brand NameBosch
Country of OriginChina
ManufacturerThe Bosch Group
Product NameEnd-of-line Supervision Board
Manufacturer Part NumberPLN-1EOL
Manufacturer Website Addresshttp://www.bosch.com
View full details
$404.99 USD
$404.99
Sale Sold out

Back Order

Get it by Sun, Dec 06 - Fri, Dec 11


Update


Shipping calculated at checkout.

Bosch End-of-line Supervision Board - 6

Manufacturer : The Bosch Group

Manufacturer Part No : PLN-1EOL

Product Details

Marketing InformationA Plena end-of-line board is a PCB designed to detect the 20 kHz pilot tone generated by a supervised public address or voice alarm system. It activates a voltage free switch in the presence of a 20 kHz signal (pilot tone) above 5 V as well as an LED for easy visual confirmation of operation.

Functions

 Plena end-of-line boards monitor the presence of a pilot tone on a loudspeaker line. The board connects at the end of a loudspeaker line and detects the 20 kHz pilot tone signal. This signal is always present on the line: when back ground music (BGM) is playing when a call is in progress and when no signal is present. The 20 kHz tone is inaudible and at a very low level (-20dB). When the pilot tone signal is present an LED lights up and a contact on the board is closed. When the pilot tone fails the contact opens and the LED goes off. If mounted at the end of the loudspeaker line this applies to the integrity of the whole line. Presence of the pilot tone signal does not depend on the number of loudspeakers on the line the load on the line or the line capacitance. The contact can be connected to a PA system such as the Bosch Voice Alarm System to detect and report faults on a loudspeaker line.

Several EOL boards can be daisy-chained to a single fault input. This allows a loudspeaker line with several branches to be monitored.

Since the background music also includes a 20 kHz pilot tone signal there is no need to interrupt background music.
Packaged Quantity6
Product TypeEnd of Line (EOL) Supervision Board
Brand NameBosch
Country of OriginChina
ManufacturerThe Bosch Group
Product NameEnd-of-line Supervision Board
Manufacturer Part NumberPLN-1EOL
Manufacturer Website Addresshttp://www.bosch.com
