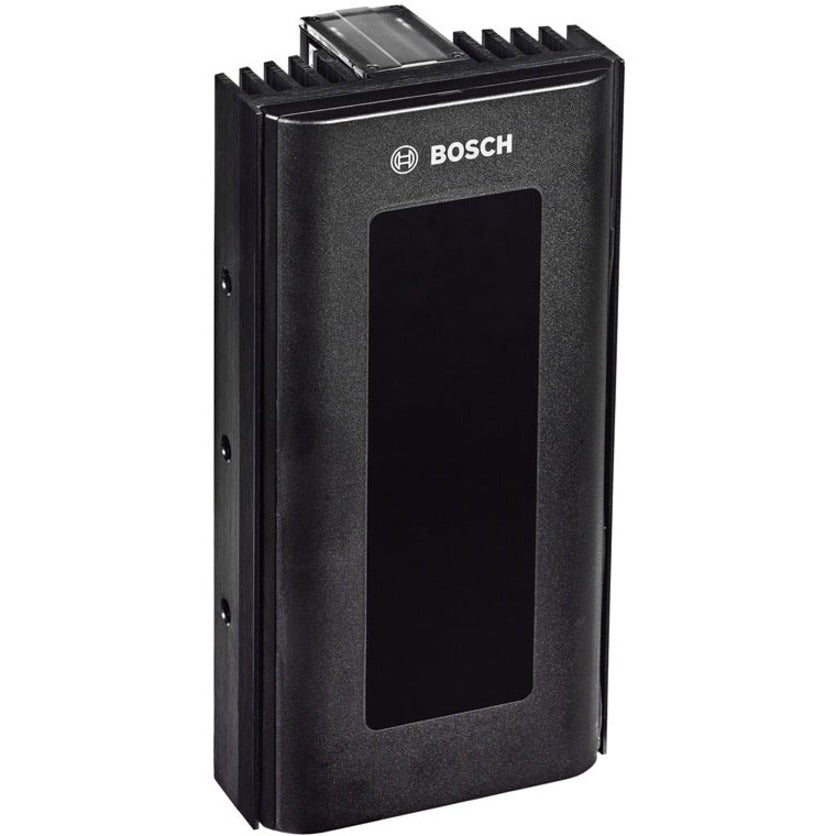

Bosch Illuminator 850nm Extra Range

Bosch Illuminator 850nm Extra Range

SKU: 1038710600      MFR: The Bosch Group

GTIN: 800549815475

Product Description

Bosch Illuminator 850nm Extra Range - Surface Mount Interchangeable Lens Adjustable Built-in Photocell Adjustable Light Sensitivity Self-cleaning Lens Coating Night Vision Robust - Surveillance Indoor Outdoor - Vandal Resistant - Anodized Aluminum Polycarbonate - Black

Manufacturer : The Bosch Group

Manufacturer Part No : IIR-50850-XR

Product Details

Product TypeInfrared Illuminator
Brand NameBosch
Device SupportedSurveillance Camera
Environmentally FriendlyYes
Product ColorBlack
Color Details
  • Black - Housing
Country of OriginUnited Kingdom
Height8.4"
Width4.3"
Depth3"
Certifications & StandardsIP66
DurabilityVandal Resistant
FeaturesSurface Mount
ManufacturerThe Bosch Group
Product NameIlluminator 850nm Extra Range
Application/UsageSurveillance
Manufacturer Part NumberIIR-50850-XR
Manufacturer Website Addresshttp://www.bosch.com
Marketing Information
  • Integrated adjustable photocell
  • Adjustable IR intensity
  • Interchangeable beam pattern diffusers to match beam to camera
  • Telemetry input and photocell output for external switching
  • Self-cleaning lens coating technology
TThe infrared illuminator provides covert or semi-covert lighting for extra long-range indoor and outdoor surveillance applications. IR illumination dramatically improves night-time imaging and reduces noise and bit rates.The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes.The self-cleaning window reduces maintenance requirements. Specifically designed for energy efficient operation the illuminator can be powered directly from any 12 to 32 VDC or 24 VAC supply for faster flexible cost effective installations.

System overview

Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management long life and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling. Easy access to power and photo cell adjustment facilitates quick and easy installation.
Packaged Quantity1
MaterialAnodized Aluminum
Additional Information

Power

  • Power supply x 12 to 32 VDC or 24 VAC ±10%
  • Power consumption x 52 W

Optical

  • Wavelength x 850 nm or 940 nm
  • IR control x Adjustable IR intensity (10% to 100%)
  • Day/night switch x Photocell sensitivity adjustable (20 lx to 70 lx)
  • Beam angles x 10° 20° 30° 60° 80° and 95°

Range 850 nm

  • Beam pattern diffuser x Achievable Distance* HFOV
  • 10º x 308 m (1010 ft) 54 m (177 ft)
  • 20° x 210 m (689 ft) 74 m (243 ft)
  • 30º x 154 m (505 ft) 83 m (271 ft)
  • 60° x 98 m (322 ft) 113 m (371 ft)
  • 80° x 70 m (230 ft) 117 m (385 ft)
  • 95º x 49 m (161 ft) 107 m (351 ft)

Range 940 nm

  • Beam pattern diffuser x Achievable Distance* HFOV
  • 10º x 189 m (620 ft) 33 m (108 ft)
  • 20° x 112 m (367 ft) 39 m (130 ft)
  • 30º x 91 m (299 ft) 49 m (160 ft)
  • 60° x 56 m (184 ft) 65 m (212 ft)
  • 80° x 42 m (138 ft) 70 m (231 ft)
  • 95º x 28 m (92 ft) 61 m (201 ft)

Mechanical

  • Housing x Robust anodized aluminum extrusion black
  • Front window x Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology
  • Mount x Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
  • Cable x 3 m (9 ft)
  • Dimensions(W x H x D) x 110 x 213 x 76 mm (4.33 x 8.39 x 2.99 in)
  • Bracket dimensions(W x H x D) x 110 x 125 x 35 mm (4.33 x 4.92 x 1.38 in)
  • Bracket weight x 0.2 kg (0.44 lbs)

Environmental

  • Operation Temperature Range x -50 °C to +50 °C (-58 °F to +122 °F)
Weight (Approximate)4.06 lb
ColorBlack - Housing
View full details
$1,029.99 USD
$1,029.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.
