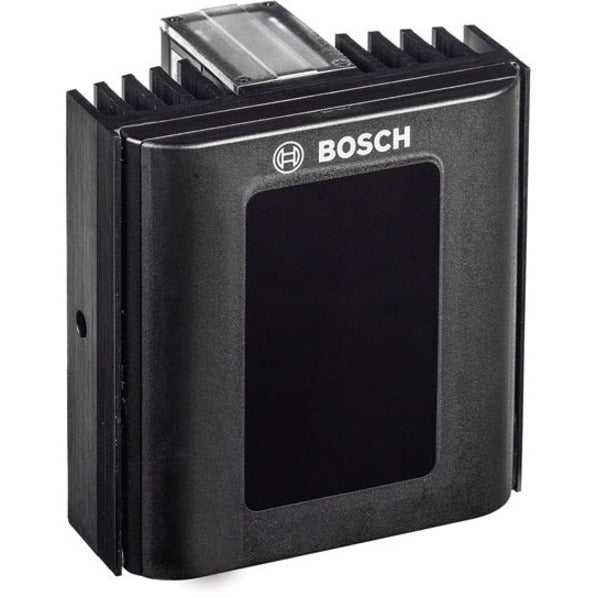

Bosch Illuminator 850nm Medium Range

Bosch Illuminator 850nm Medium Range

SKU: 1038710599      MFR: The Bosch Group

GTIN: 800549815437

Product Description

Bosch Illuminator 850nm Medium Range - Surface Mount Adjustable Built-in Photocell Interchangeable Lens Self-cleaning Lens Coating Robust Electronic Protection Adjustable Light Intensity Night Vision Thermal Protection Electronic Protection - Indoor Outdoor Surveillance - Vandal Resistant - Anodized Aluminum Polycarbonate Stainless Steel - Black

Manufacturer : The Bosch Group

Manufacturer Part No : IIR-50850-MR

Product Details

Product TypeInfrared Illuminator
Brand NameBosch
Device SupportedSurveillance Camera
Environmentally FriendlyYes
Product ColorBlack
Color Details
  • Black - Housing
Country of OriginUnited Kingdom
Height4.5"
Width4.3"
Depth3"
Certifications & StandardsIP66
DurabilityVandal Resistant
FeaturesSurface Mount
ManufacturerThe Bosch Group
Product NameIlluminator 850nm Medium Range
Application/UsageIndoor
Manufacturer Part NumberIIR-50850-MR
Manufacturer Website Addresshttp://www.bosch.com
Marketing Information
  • Integrated adjustable photocell
  • Adjustable IR intensity
  • Interchangeable beam pattern diffusers to match beam to camera
  • Telemetry input and photocell output for external switching
  • Self-cleaning lens coating technology
TThe infrared illuminator provides covert or semi-covert lighting for extra long-range indoor and outdoor surveillance applications. IR illumination dramatically improves night-time imaging and reduces noise and bit rates.The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes.The self-cleaning window reduces maintenance requirements. Specifically designed for energy efficient operation the illuminator can be powered directly from any 12 to 32 VDC or 24 VAC supply for faster flexible cost effective installations.

System overview

Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management long life and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling. Easy access to power and photo cell adjustment facilitates quick and easy installation.
Packaged Quantity1
MaterialAnodized Aluminum
Additional Information

Power

  • Power supply x 12 to 32 VDC or 24 VAC ±10%
  • Power consumption x 26 W

Optical

  • Wavelength x 850 nm or 940 nm
  • IR control x Adjustable IR intensity (10% to 100%)
  • Day/night switch x Photocell sensitivity adjustable (20 lx to 70 lx)
  • Beam angles x 10° 20° 30° 60° 80° and 95°

Range 850 nm

  • Beam pattern diffuser x Achievable Distance* HFOV
  • 10º x 220 m (722 ft) 38 m (126 ft)
  • 20° x 150 m (492 ft) 53 m (174 ft)
  • 30º x 110 m (361 ft) 59 m (193 ft)
  • 60° x 70 m (230 ft) 81 m (265 ft)
  • 80° x 50 m (164 ft) 84 m (275 ft)
  • 95º x 35 m (115 ft) 76 m (251 ft)

Range 940 nm

  • Beam pattern diffuser x Achievable Distance* HFOV
  • 10º x 135 m (443 ft) 24 m (77 ft)
  • 20° x 80 m (262 ft) 28 m (93 ft)
  • 30º x 65 m (213 ft) 35 m (114 ft)
  • 60° x 40 m (131 ft) 46 m (152 ft)
  • 80° x 30 m (98 ft) 50 m (165 ft)
  • 95º x 20 m (66 ft) 44 m (143 ft)

Mechanical

  • Housing x Robust anodized aluminum extrusion black
  • Front window x Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology
  • Mount x Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
  • Cable x 3 m (9 ft)
  • Dimensions(W x H x D) x 110 x 115 x 76 mm (4.33 x 4.53 x 2.99 in)
  • Bracket dimensions(W x H x D) x 110 x 125 x 35 mm (4.33 x 4.92 x 1.38 in)
  • Weight x 1.06 kg (2.3 lbs)
  • Bracket weight x 0.2 kg (0.44 lbs)

Environmental

  • Operation Temperature Range x -50 °C to +50 °C (-58 °F to +122 °F)
Weight (Approximate)2.30 lb
ColorBlack - Housing
View full details
$614.99 USD
$614.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.
