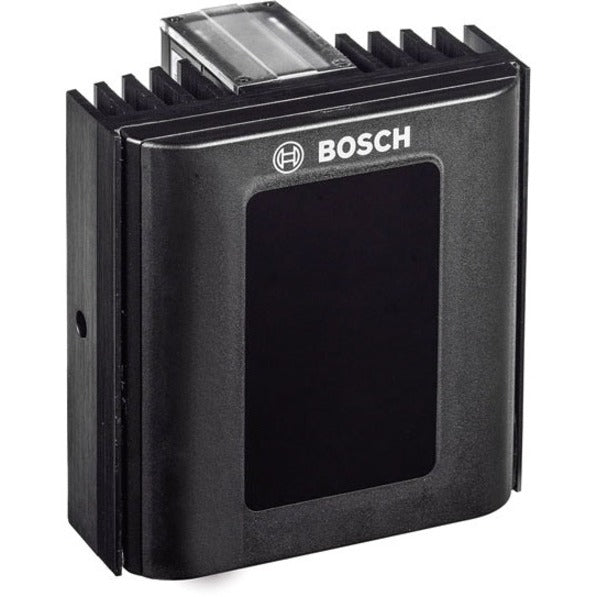

Bosch Illuminator 850nm Medium Range PoE+

Bosch Illuminator 850nm Medium Range PoE+

SKU: 1042013361      MFR: The Bosch Group

GTIN: 800549081733

Product Description

Bosch Illuminator 850nm Medium Range PoE+ - LED Illumination PoE Easy to Use Surface Mount Self-cleaning Lens Coating Robust Low Power Consumption Adjustable Built-in Photocell Adjustable Light Intensity Interchangeable Lens Integrated Web Interface ... - Surveillance Indoor Outdoor - Vandal Resistant - Polycarbonate Anodized Aluminum Stainless Steel - Black

Manufacturer : The Bosch Group

Manufacturer Part No : NIR-50850-MRP

Product Details

Product TypeInfrared Illuminator
Environmentally FriendlyYes
Country of OriginUnited Kingdom
Height4.5"
Width4.3"
Depth3"
ColorBlack - Housing
Brand NameBosch
DurabilityVandal Resistant
FeaturesLED Illumination
ManufacturerThe Bosch Group
Product NameIlluminator 850nm Medium Range PoE+
Device SupportedSurveillance Camera
Application/UsageSurveillance
Manufacturer Part NumberNIR-50850-MRP
Manufacturer Website Addresshttp://www.bosch.com
Marketing InformationThe network infrared illuminator provides covert or semi-covert lighting for medium-range indoor and outdoor surveillance applications. IR illumination dramatically improves night-time imaging and reduces noise and bit rates.

The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes. The self-cleaning window reduces maintenance requirements.

Specifically designed for energy efficient operation the illuminator can be powered directly from Powerover-Ethernet (PoE+) for faster flexible cost effective installations.

System overview

Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management long life and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling. Additional functions include Eco and boot power modes a tamper/shock sensor and an integrated web interface for easy set-up and adjustment.
Packaged Quantity1
MaterialPolycarbonate
Weight (Approximate)2.30 lb
Product ColorBlack
Color Details
  • Black - Housing
Certifications & Standards
  • AUS: RCM AS / NZS CISPR 22 Class B

CE-EMC:

  • EN 55024 (IT equipment - Immunity) EN 55032 (IT equipment - emissions)
  • EN 61547 (Lighting-Immunity)
  • EN 55015 (Lighting-Emission)
  • EN 62493( Lighting EMF)
  • EN 50130-4 (Alarm EMC)

Safety

  • CE-LVD:
    • EN-60598-1 (Luminaires-General)
    • EN-60598-2-1 (Luminaires)
  • LED: EN 62471 Risk group 2 (LED safety)

Environmental:

  • IEC / EN 60529 IP66
  • IEC / EN 62262 IK09
  • EN50130-5 Class IV (Alarm-environmental)
  • EN 50581

USA cULus:

  • UL 2108 Low Voltage Lighting Systems
  • UL 8750 Light Emitting Diode (LED) equipment for use in lighting systems
  • CSA C22.2 No. 250.0-08 Luminaires
  • FCC Class B
Additional Information

Power

  • Power supply x Power-over-Ethernet (PoE+) (IEEE 802.3at compliant)
  • Power consumption x 26 W

Optical

  • Wavelength x 850 nm or 940 nm
  • IR control x Adjustable IR intensity (0% to 100%)
  • Day/night switch x Photocell sensitivity adjustable (20 lx to 70 lx)
  • Beam angles x 10° (circular) 20° 30° 60° 80° and 95° (eliipticals)

Range 850 nm

  • Beam pattern diffuser x Achievable Distance* HFOV
  • 10º x 220 m (722 ft) 38 m (126 ft)
  • 20° x 150 m (492 ft) 53 m (174 ft)
  • 30º x 110 m (361 ft) 59 m (193 ft)
  • 60° x 70 m (230 ft) 81 m (265 ft)
  • 80° x 50 m (164 ft) 84 m (275 ft)
  • 95º x 35 m (115 ft) 76 m (251 ft)

Mechanical

  • Housing x Robust anodized aluminum extrusion black
  • Front window x Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology
  • Mount x Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
  • Cable x 1m with connector
  • Bracket dimensions(W x H x D) x 110 x 125 x 35 mm (4.33 x 4.92 x 1.38 in.)
  • Bracket weight x 0.2 kg (0.44 lbs)

Environmental

  • Operation Temperature Range x -50 °C to +50 °C (-58 °F to +122 °F)
View full details
