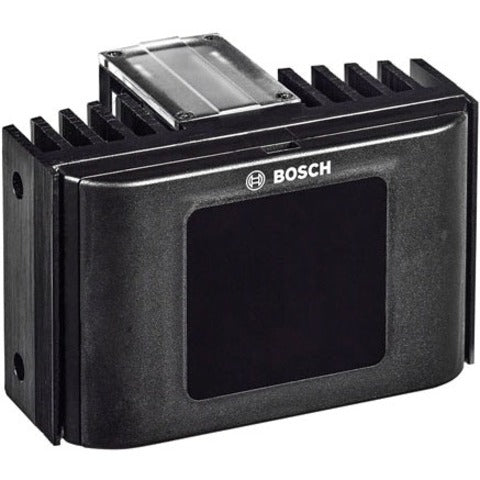

Bosch Illuminator 850nm Short Range

Bosch Illuminator 850nm Short Range

SKU: 1035788245      MFR: The Bosch Group

GTIN: 800549815413

Product Description

Bosch Illuminator 850nm Short Range - Interchangeable Lens Adjustable Robust Adjustable Built-in Photocell Adjustable Light Intensity Self-cleaning Lens Coating - Surveillance - Vandal Resistant - Anodized Aluminum Polycarbonate Stainless Steel - Black

Manufacturer : The Bosch Group

Manufacturer Part No : IIR-50850-SR

Product Details

Product TypeInfrared Illuminator
Product ColorBlack
Country of OriginUnited Kingdom
Height2.8"
Width4.3"
Depth3"
Certifications & StandardsIP66
Brand NameBosch
DurabilityVandal Resistant
FeaturesInterchangeable Lens
ManufacturerThe Bosch Group
Product NameIlluminator 850nm Short Range
Device SupportedSurveillance Camera
Application/UsageSurveillance
Manufacturer Part NumberIIR-50850-SR
Manufacturer Website Addresshttp://www.bosch.com
Marketing Information
  • Integrated adjustable photocell
  • Adjustable IR intensity
  • Interchangeable beam pattern diffusers to match beam to camera
  • Telemetry input and photocell output for external switching
  • Self-cleaning lens coating technology
Packaged Quantity1
MaterialAnodized Aluminum
Additional InformationPower
  • Power supply: 12 to 32 VDC or 24 VAC ±10%
  • Power consumption: 13 W
Optical
  • Wavelength: 850 nm or 940 nm
  • IR control: Adjustable IR intensity (10% to 100%)
  • Day/night switch: Photocell sensitivity adjustable (20 lx to 70 lx)
  • Beam angles: 10° 20° 30° 60° 80° and 95°
Range 850 nm
  • Beam pattern diffuser: Achievable Distance HFOV
  • 10°: 156 m (510 ft) 27 m (89 ft)
  • 20°: 106 m (348 ft) 37 m (123 ft)
  • 30°: 78 m (255 ft) 42 m (137 ft)
  • 60°: 49 m (162 ft) 57 m (187 ft)
  • 80°: 35 m (116 ft) 59 m (195 ft)
  • 95°: 25 m (81 ft) 54 m (177 ft)
Range 940 nm
  • Beam pattern diffuser Achievable Distance HFOV
  • 10°: 95 m (313 ft) 17 m (55 ft)
  • 20°: 57 m (186 ft) 20 m (65 ft)
  • 30°: 46 m (151 ft) 25 m (81 ft)
  • 60°: 28 m (93 ft) 33 m (107 ft)
  • 80°: 21 m (70 ft) 36 m (117 ft)
  • 95°: 14 m (46 ft) 31 m (101 ft)
Mechanical
  • Mount: Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
  • Cable: 3 m (9 ft)
  • Bracket dimensions (W x H x D): 110 x 125 x 35 mm (4.33 x 4.92 x 1.38 in)
  • Bracket weight: 0.2 kg (0.44 lbs
Environmental
  • Operation Temperature Range: -50 °C to +50 °C (-58 °F to +122 °F)
Weight (Approximate)1.60 lb
ColorBlack
