• ILLUMINATOR 940NM MEDIUM RANGE
    ILLUMINATOR 940NM MEDIUM RANGE
1 1

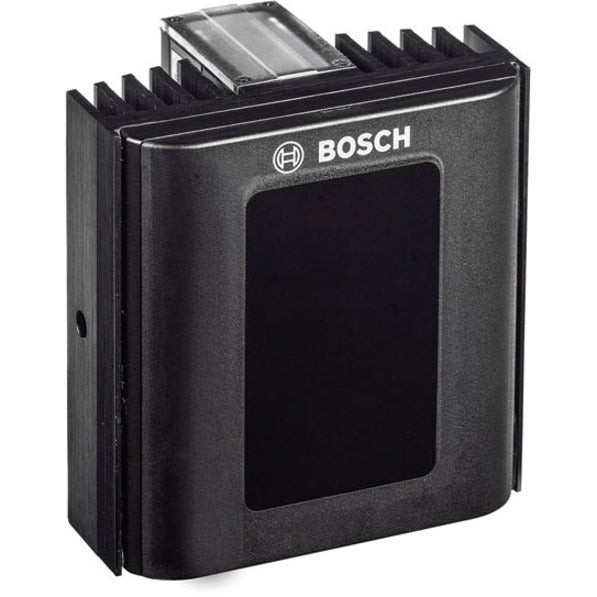

Bosch Illuminator 940nm Medium Range PoE+

Bosch Illuminator 940nm Medium Range PoE+

SKU: 1042013360      MFR: The Bosch Group

GTIN: 800549815505

Product Description

Bosch Illuminator 940nm Medium Range PoE+ - Low Power Consumption LED Illumination PoE Easy to Use Surface Mount Self-cleaning Lens Coating Robust Night Vision Integrated Web Interface Adjustable Built-in Photocell Adjustable Light Intensity ... - Surveillance Indoor Outdoor - Vandal Resistant - Polycarbonate Anodized Aluminum Stainless Steel - Black

Manufacturer : The Bosch Group

Manufacturer Part No : NIR-50940-MRP

Features

  • Integrated adjustable photocell
  • Adjustable IR intensity
  • Interchangeable beam pattern diffusers to match beam to camera
  • Telemetry input and photocell output for external switching
  • Self-cleaning lens coating technology

Product Details

Product TypeInfrared Illuminator
Brand NameBosch
Device SupportedSurveillance Camera
Environmentally FriendlyYes
Product ColorBlack
Color Details
  • Black - Housing
Country of OriginUnited Kingdom
Height4.5"
Width4.3"
Depth3"
Certifications & Standards
  • AUS: RCM AS / NZS CISPR 22 Class B

CE-EMC:

  • EN 55024 (IT equipment - Immunity) EN 55032 (IT equipment - emissions)
  • EN 61547 (Lighting-Immunity)
  • EN 55015 (Lighting-Emission)
  • EN 62493( Lighting EMF)
  • EN 50130-4 (Alarm EMC)

Safety

  • CE-LVD:
    • EN-60598-1 (Luminaires-General)
    • EN-60598-2-1 (Luminaires)
  • LED: EN 62471 Risk group 2 (LED safety)

Environmental:

  • IEC / EN 60529 IP66
  • IEC / EN 62262 IK09
  • EN50130-5 Class IV (Alarm-environmental)
  • EN 50581

USA cULus:

  • UL 2108 Low Voltage Lighting Systems
  • UL 8750 Light Emitting Diode (LED) equipment for use in lighting systems
  • CSA C22.2 No. 250.0-08 Luminaires
  • FCC Class B
DurabilityVandal Resistant
FeaturesLow Power Consumption
ManufacturerThe Bosch Group
Product NameIlluminator 940nm Medium Range PoE+
Application/UsageSurveillance
Manufacturer Part NumberNIR-50940-MRP
Manufacturer Website Addresshttp://www.bosch.com
Marketing InformationThe network infrared illuminator provides covert or semi-covert lighting for medium-range indoor and outdoor surveillance applications. IR illumination dramatically improves night-time imaging and reduces noise and bit rates.

The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes. The self-cleaning window reduces maintenance requirements.

Specifically designed for energy efficient operation the illuminator can be powered directly from Powerover-Ethernet (PoE+) for faster flexible cost effective installations.

System overview

Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management long life and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling. Additional functions include Eco and boot power modes a tamper/shock sensor and an integrated web interface for easy set-up and adjustment.
Packaged Quantity1
MaterialPolycarbonate
Additional Information

Power

  • Power supply x Power-over-Ethernet (PoE+) (IEEE 802.3at compliant)
  • Power consumption x 26 W

Optical

  • Wavelength x 850 nm or 940 nm
  • IR control x Adjustable IR intensity (0% to 100%)
  • Day/night switch x Photocell sensitivity adjustable (20 lx to 70 lx)
  • Beam angles x 10° (circular) 20° 30° 60° 80° and 95° (eliipticals)

Range 940 nm

  • Beam pattern diffuser x Achievable Distance* HFOV
  • 10º x 135 m (443 ft) 24 m (77 ft)
  • 20° x 80 m (262 ft) 28 m (93 ft)
  • 30º x 65 m (213 ft) 35 m (114 ft)
  • 60° x 40 m (131 ft) 46 m (152 ft)
  • 80° x 30 m (98 ft) 50 m (165 ft)
  • 95º x 20 m (66 ft) 44 m (143 ft)

Mechanical

  • Housing x Robust anodized aluminum extrusion black
  • Front window x Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology
  • Mount x Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
  • Cable x 1m with connector
  • Bracket dimensions(W x H x D) x 110 x 125 x 35 mm (4.33 x 4.92 x 1.38 in.)
  • Bracket weight x 0.2 kg (0.44 lbs)

Environmental

  • Operation Temperature Range x -50 °C to +50 °C (-58 °F to +122 °F)
Weight (Approximate)2.30 lb
ColorBlack - Housing
View full details
$923.99 USD
$923.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.
