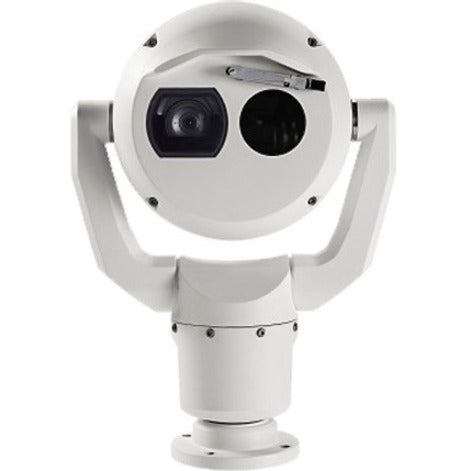

• Bosch MIC IP fusion MIC-9502-Z30WVS9 2 Megapixel Outdoor Full HD Network Camera - Color Monochrome - Dome
    Bosch MIC IP fusion MIC-9502-Z30WVS9 2 Megapixel Outdoor Full HD Network Camera - Color Monochrome - Dome
1 1

Bosch MIC IP fusion MIC-9502-Z30WVS9 2 Megapixel Outdoor Full HD Network Camera - Color Monochrome - Dome

Bosch MIC IP fusion MIC-9502-Z30WVS9 2 Megapixel Outdoor Full HD Network Camera - Color Monochrome - Dome

SKU: 1072682846      MFR: The Bosch Group

GTIN: 800549611367

Product Description

Bosch MIC IP fusion MIC-9502-Z30WVS9 2 Megapixel Outdoor Full HD Network Camera - Color Monochrome - Dome - MJPEG H.264 H.265 JPEG H.265/HEVC - 1920 x 1080 - 4.30 mm- 129 mm Varifocal Lens - 30x Optical - Exmor R CMOS - Wall Mount Corner Mount Pole Mount Conduit Mount Bracket Mount - IK10 - IP68 IP67 IP66 - Corrosion Resistant Weather Resistant Impact Resistant Vibration Resistant Dust Resistant Water Resistant Rain Resistant Snow Resistant Fog Resistant

Manufacturer : The Bosch Group

Manufacturer Part No : MIC-9502-Z30WVS9

Features

  • Ruggedized IP PTZ camera with high performance thermal imager and HD visible imager sitting side-by-side
  • Designed to provide the highest availability of useable images regardless of lighting conditions in extreme environments (weather dust/debris/smoke etc.)
  • Unique metadata fusion feature provides the ultimate in situation awareness
  • Exceptional early detection capabilities: Object detection up to 4517 m (14820 ft) based on DRI criteria
  • Advanced on-board intelligent video tracking object detection even when camera is on tour

Product Details

Product TypeNetwork Camera
Maximum Video Resolution1920 x 1080
Maximum Focal Length129 mm
Minimum Focal Length4.30 mm
Image Sensor TypeExmor R CMOS
Minimum Operating Temperature-40°F (-40°C)
Maximum Operating Temperature149°F (65°C)
Network (RJ-45)Yes
Product FamilyMIC IP fusion 9000i
Indoor/OutdoorOutdoor
Operating Humidity100%
Product ColorWhite
Impact Protection RatingIK10
Ingress Protection RatingIP68
Color SupportedColor
Connectivity TechnologyWired
Optical Zoom30x
Brand NameBosch
Form FactorDome
Maximum Aperturef/1.6
Environmentally FriendlyYes
Environmental CertificationWEEE
Effective Camera Resolution2 Megapixel
Longest Shutter Speed1/1 Second
Shortest Shutter Speed1/30000 Second
Remote ManagementYes
Minimum Aperturef/4.7
HD RecordingYes
Storage TypeMemory Card
Height16.6"
Width11.7"
Depth7.1"
Product Series9000i
DurabilityCorrosion Resistant
FeaturesAuto Gain Control
Lens TypeVarifocal
ManufacturerThe Bosch Group
Product ModelMIC-9502-Z30WVS9
Product NameMIC-9502-Z30WVS9 PTZ thermal VGA-9mm 2MP 30x 9Hz white
Mount TypeWall Mount
Product LineMIC IP fusion
Video FormatsMJPEG
Manufacturer Part NumberMIC-9502-Z30WVS9
Manufacturer Website Addresshttp://www.bosch.com
Marketing InformationThe MIC IP fusion 9000i camera is an advanced PTZ surveillance platform designed to provide early detection in mission-critical applications. With its dual visible/thermal imaging capabilities the MIC IP fusion 9000i camera is the perfect solution for robust and high-quality imaging needs. The camera's distinctive ruggedized design is wellsuited for extreme environments and adverse weather conditions such as high winds rain fog ice and snow. Precision engineered using Bosch's domain expertise in material and mechanical engineering the camera offers the most advanced imaging and positioning system solution available on the market.

Functions

 Exceptional imaging performance

 The MIC IP fusion 9000i camera incorporates a highperformance thermal imaging core and a 1080p starlight camera integrated in the same housing. This allows the camera to deliver simultaneous thermal and visible video streams maximizing the ability to detect and react to long-range threats.

Thermal imager

 The thermal imager incorporates the latest un-cooled vanadium oxide microbolometer technology. This high sensitivity thermal imager is equipped with a fixed focal length Athermal lens that balances the field-ofview with maximizing the detection distance. User-adjustable settings for contrast and gain allow operators to optimize the image ensuring delivery of the highest quality video. In addition a wide variety of user-selectable thermal color modes are available allowing further optimization of the thermal image. Depending on model mix QVGA resolution (320 pixels) and VGA resolution (640 pixels) versions are available with choice of low (<9Hz) or high (30Hz) frame rates.

Visible imager

The 1080p60-capable visible imager has starlight technology and a 30x optical/12x digital zoom lens that provides high-quality images excellent color performance and unbeatable low-light sensitivity. High dynamic range ensures clear image reproduction in the most challenging high-contrast scenes.

Ruggedized design for extreme applications

The MIC IP fusion 9000i camera is designed for surveillance applications beyond the mechanical capabilities of normal PTZ domes or conventional positioning systems.
  • Ingress
The camera is environmentally sealed and complies with Type 6P and IP68 standards when attached to a MIC-DCA or a MIC-WMB. This level of protection eliminates any risk of dust or water ingress making the camera a perfect choice for use in extreme environments with rain dust snow flying debris and other challenging conditions. In addition the MIC camera's ingress protection method does not need periodic maintenance which is required on cameras with pressurized housings.
Recording FormatsFull HD
Package Contents
  • MIC-9502-Z30WVS9 PTZ thermal VGA-9mm 2MP 30x 9Hz white
  • 1 x Quick Installation Guide
  • 1 x Base Gasket
  • 1 x RJ45 Coupler
  • 4 x MAC Address Labels
  • 1 x Ground Screw
Weight (Approximate)19.84 lb
Maximum Frame Rate60 fps
Field of View70° x 52°
Lens IncludedYes
Maximum Thermal Focal Length0.35"
Power Source TypeAC
Thermal Image Sensor TypeUncooled Vanadium Oxide Microbolometer
Thermal Video Resolution640 x 480
Input Voltage24 V AC
View full details
$41,527.99 USD
$41,527.99
Sale Sold out

Back Order

Get it by Thu, Aug 06 - Tue, Aug 11


Update


Shipping calculated at checkout.
