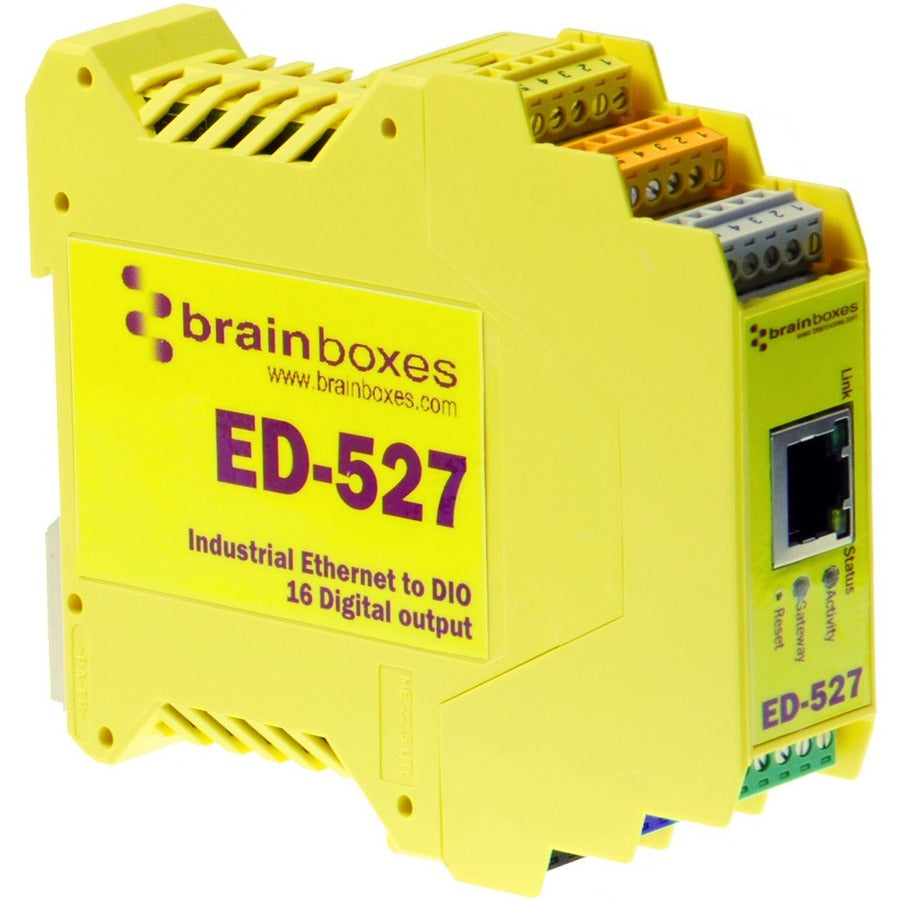

Ethernet to DIO device: 16 non-isolated digital output channels. Outputs each group of 4 lines has its own common rail. Powerful ARM 80 MHz 32 Bit CPU.

The device can be controlled over TCP/IP using the Modbus TCP protocol or simple ASCII commands. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic C# C++ Java Javascript PHP and more. The device and be configured and secured from a web browser. The device can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.

Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment commonly referred to as 'process side'.

The ED product range is designed for harsh environments. The digital output port line are implemented as protected output circuits providing current overload and short circuit protection voltage surge overload and open circuit protection and over temperature protection to allow the widest possible usage and range of devices.

The outputs are good for driving hot and cold resistive loads capacitive loads and inductive loads and are especially suited for loads with high inrush currents such as cold bulbs/lamps and motors. Typical applications are control and switching of AC and DC motors Fans relay drivers pumps Voltage Regulators and Battery Chargers LEDs and Bulbs Air Conditioning Heaters and Solenoids.

More from the Manufacturer

• Ethernet to 16 Digital Outputs + RS485 Gateway
• Installation CD (with Manual Microsoft Signed Drivers & Utilities)
• Quick Start Guide

IO Channels

• IO Protocols Modbus TCP or DCON ASCII (over TCP or Virtual COM port)
• Description 16 Digital Outputs
• Digital Inputs 0
• Digital Outputs 16
• Analog Inputs 0
• Analog Outputs 0
• Watchdog When device comms is lost outputs can be set to predetermined state
• Power On Values Outputs can be set to predetermined values on power on

Digital IO

• Digital Output Type Open drain transistor protected MosFET. Short circuit protection up to 36V. Over temperature shutdown -175°C typical 150°C min
• Maximum Output Load Voltage 30 VDC
• Maximum Output Current Sink 5.0A per channel

Serial Port

• Serial Gateway RS485 NuDam/ADAM compatible expansion port

Network

• Number of Ports 1
• Network Port Type RJ45 Jack 10/100 MHz Autosensing Cross Over Autosensing (MDIX)
• Network Protocols ICMP IP TCP DHCP HTTP
• Protection 1500V Magnetic Isolation between ports and network

Power

• Power Input 5V - 30V DC Redundant DC Dual Power Inputs reverse polarity protected
• Power Supply 1 Description Global Power Supply - PW-600
• Power Supply 2 Description Power supply PW-650
• Max Input 35 Volts

General

• Operating Temperature Range -30 °C to +80 °C / -22 °F to +176 °F
• Industrial Standard Yes
• Storage Temperature -40 °C to +85 °C / -40 °F to +185 °F
• Galvanic Isolation No

Operating Systems

• Microsoft Windows 10
• Microsoft Windows 8 32 bit & 64 bit Editions
• Microsoft Windows 7 32 bit & 64 bit Editions
• Windows Server 2008 32 bit & 64 bit Editions
• Windows Vista 32 bit & 64 bit Editions
• Windows XP 32 bit & 64 bit Editions
