• Brainboxes Industrial 5 Port PoE+ 10/100 Ethernet Switch

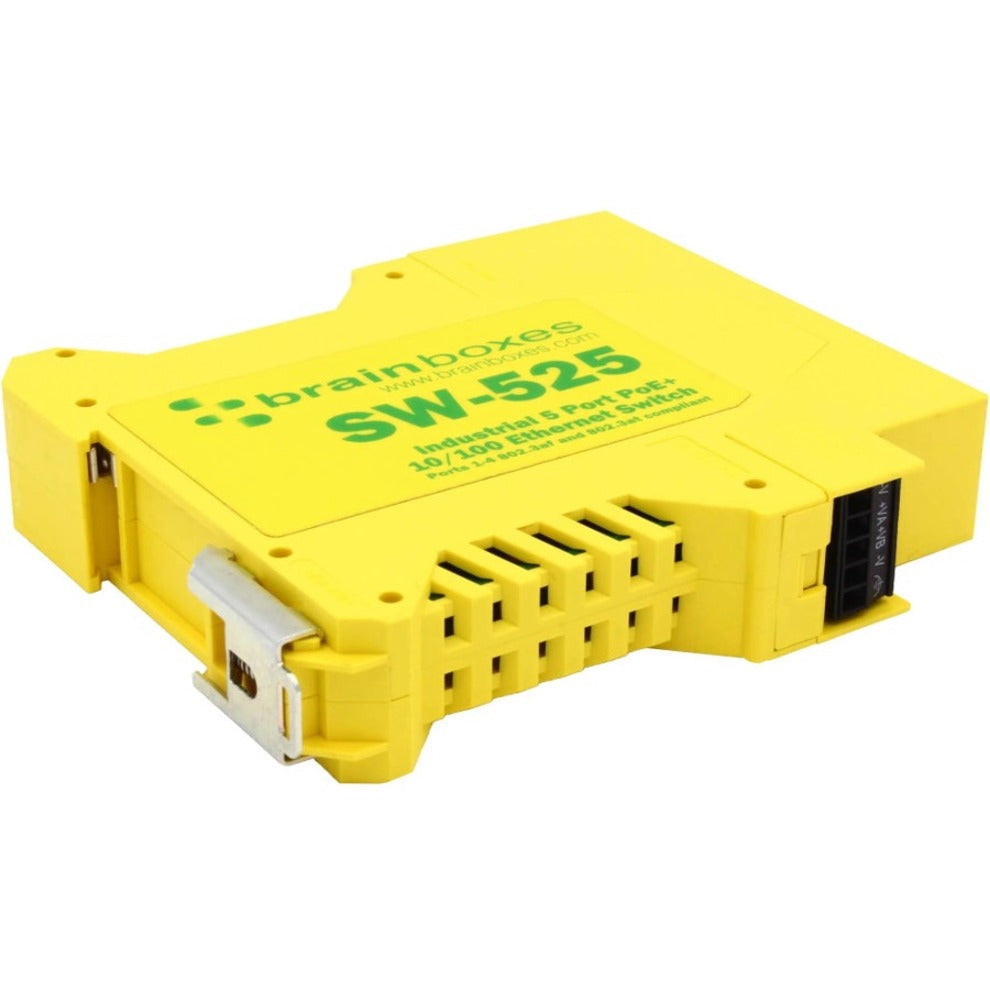

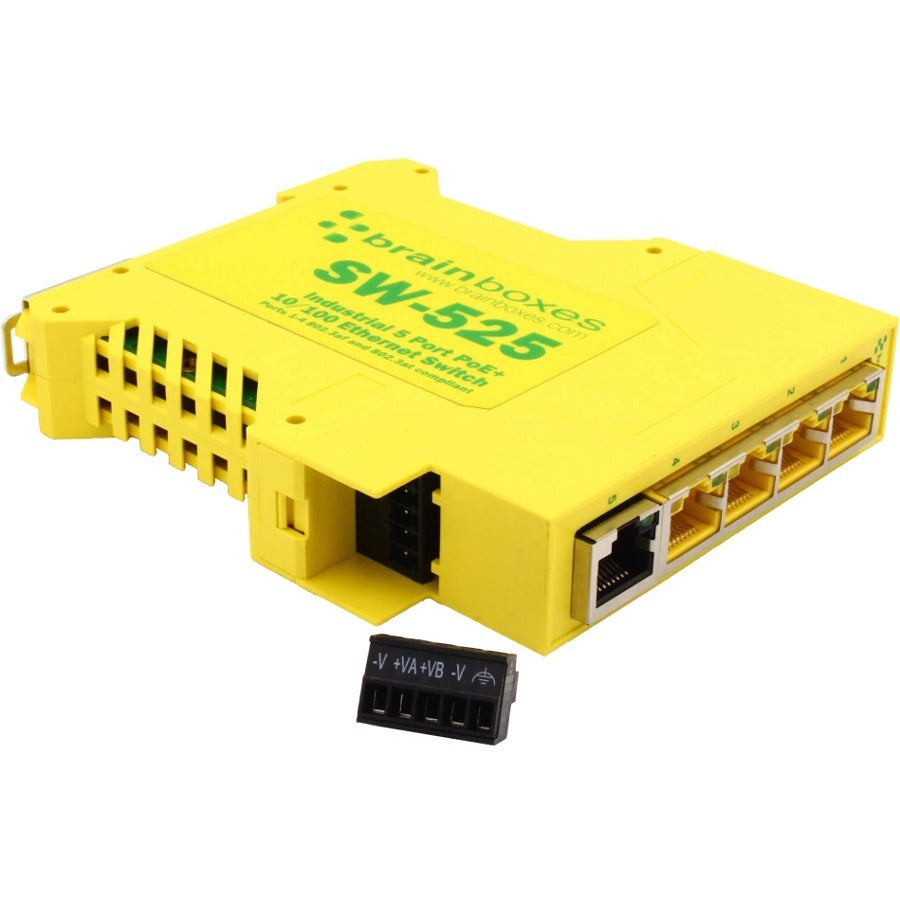

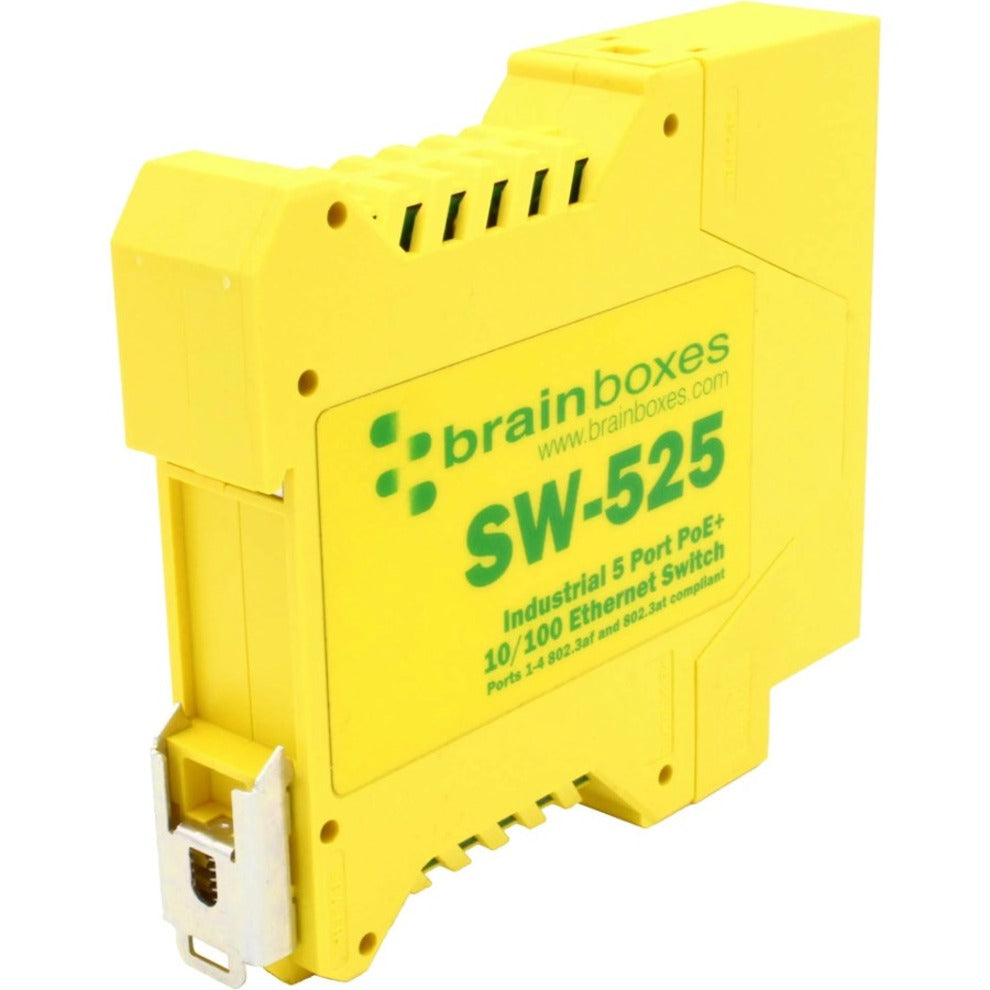

    Brainboxes Industrial 5 Port PoE+ 10/100 Ethernet Switch
  • Brainboxes Industrial 5 Port PoE+ 10/100 Ethernet Switch
  • Brainboxes Industrial 5 Port PoE+ 10/100 Ethernet Switch
  • Brainboxes Industrial 5 Port PoE+ 10/100 Ethernet Switch
1 4

Brainboxes Industrial 5 Port PoE+ 10/100 Ethernet Switch

Brainboxes Industrial 5 Port PoE+ 10/100 Ethernet Switch

SKU: 1071393616      MFR: Brainboxes Limited

GTIN: 837324004533

Product Description

Brainboxes Industrial 5 Port PoE+ 10/100 Ethernet Switch - 5 Ports - Fast Ethernet - 10/100Base-T - TAA Compliant - 2 Layer Supported - 4 W Power Consumption - 90 W PoE Budget - Twisted Pair - PoE Ports - DIN Rail Mountable Compact - Lifetime Limited Warranty

Manufacturer : Brainboxes Limited

Manufacturer Part No : SW-525

Features

  • Allows power and data to be combined on the same Ethernet cable
  • Ports 1-4 PoE+ capable
  • Ports 1-4 IEEE 802.3af/at compliant: deliver up to 30W to each port (backwards compatible)
  • PoE Power Budget: 90W @ 70 ºC between all 4 PoE ports simultaneously
  • Redundant dual power inputs: +44V to +57V DC
  • Industrial operating temp range -40°C to +70°C / -40°F to +176°F

Product Details

Product TypeEthernet Switch
ManageableNo
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
Network (RJ-45)Yes
Media Type SupportedTwisted Pair
Total Number of Network Ports5
PoE (RJ-45) PortYes
Port/Expansion Slot Details4 x Fast Ethernet PoE+
Redundant Power Supply SupportedYes
TAA CompliantYes
PoE Budget90 W
Networking StandardsIEEE 802.3at
Country of OriginGreat Britain
Height4.7"
Width3.9"
Depth0.4"
Brand NameBrainboxes
Plug/Connector TypeTerminal Block
Form FactorDIN Rail Mountable
ManufacturerBrainboxes Limited
Product ModelSW-525
Product NameIndustrial 5 Port PoE+ 10/100 Ethernet Switch
Network Technology10/100Base-T
Power Consumption4 W
Input Voltage44 V DC
Manufacturer Part NumberSW-525
Manufacturer Website Addresshttp://www.brainboxes.com
Marketing Information

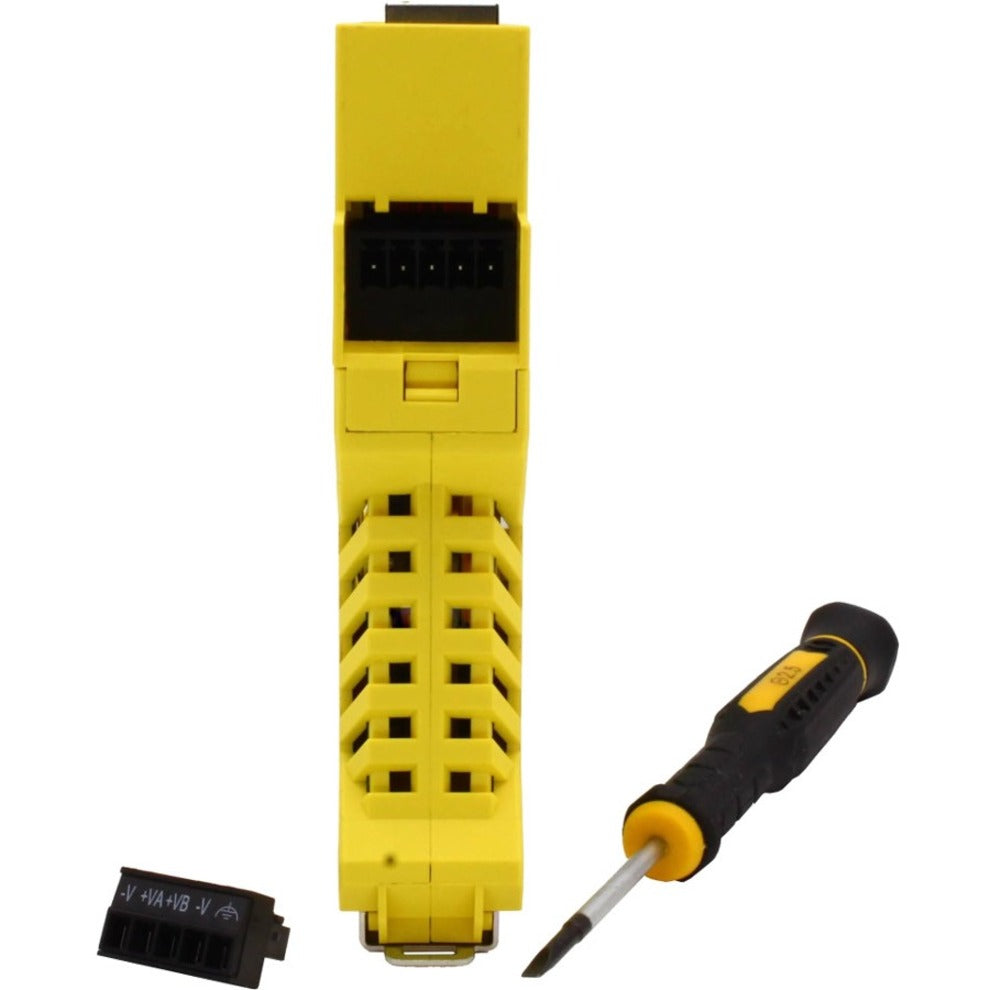

Industrial Compact 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras PoE telephones PoE Wifi access points NVRs and more
Power SourcePower Supply
Package Contents
  • Industrial 5 Port PoE+ 10/100 Ethernet Switch
  • Quick Start Guide
Limited WarrantyLifetime
Layer Supported2
Weight (Approximate)4.37 oz
View full details
$240.99 USD
$240.99
Sale Sold out

Back Order

Get it by Wed, Apr 29 - Mon, May 04


Update


Shipping calculated at checkout.

Brainboxes Industrial 5 Port PoE+ 10/100 Ethernet Switch - 5 Ports - Fast Ethernet - 10/100Base-T - TAA Compliant - 2 Layer Supported - 4 W Power Consumption - 90 W PoE Budget - Twisted Pair - PoE Ports - DIN Rail Mountable Compact - Lifetime Limited Warranty

Manufacturer : Brainboxes Limited

Manufacturer Part No : SW-525

Features

  • Allows power and data to be combined on the same Ethernet cable
  • Ports 1-4 PoE+ capable
  • Ports 1-4 IEEE 802.3af/at compliant: deliver up to 30W to each port (backwards compatible)
  • PoE Power Budget: 90W @ 70 ºC between all 4 PoE ports simultaneously
  • Redundant dual power inputs: +44V to +57V DC
  • Industrial operating temp range -40°C to +70°C / -40°F to +176°F

Product Details

Product TypeEthernet Switch
ManageableNo
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
Network (RJ-45)Yes
Media Type SupportedTwisted Pair
Total Number of Network Ports5
PoE (RJ-45) PortYes
Port/Expansion Slot Details4 x Fast Ethernet PoE+
Redundant Power Supply SupportedYes
TAA CompliantYes
PoE Budget90 W
Networking StandardsIEEE 802.3at
Country of OriginGreat Britain
Height4.7"
Width3.9"
Depth0.4"
Brand NameBrainboxes
Plug/Connector TypeTerminal Block
Form FactorDIN Rail Mountable
ManufacturerBrainboxes Limited
Product ModelSW-525
Product NameIndustrial 5 Port PoE+ 10/100 Ethernet Switch
Network Technology10/100Base-T
Power Consumption4 W
Input Voltage44 V DC
Manufacturer Part NumberSW-525
Manufacturer Website Addresshttp://www.brainboxes.com
Marketing Information

Industrial Compact 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras PoE telephones PoE Wifi access points NVRs and more
Power SourcePower Supply
Package Contents
  • Industrial 5 Port PoE+ 10/100 Ethernet Switch
  • Quick Start Guide
Limited WarrantyLifetime
Layer Supported2
Weight (Approximate)4.37 oz
