BSS EC-4BV Ethernet Controller with 4 Buttons and Volume Control
BSS EC-4BV Ethernet Controller with 4 Buttons and Volume Control
SKU: 1032190719 MFR: Harman International Industries Inc
GTIN: 691991600890
Product Description
BSS EC-4BV Ethernet Controller with 4 Buttons and Volume Control
Manufacturer : Harman International Industries Inc
Manufacturer Part No : BSSEC4BV-WHT-M
Product Details
The Soundweb Contrio EC-4BV is an Ethernet wall controller for use in Harman HiQnet systems. The EC-4BV can control and monitor parameters within BSS Audio Soundweb London and other HiQnet devices including Crown DCi series amplifiers.
The EC-4BV is available in black or white and in single-gang US Decora or single-gang EU form factor. The EC-4BV contains a single Ethernet port for configuration control monitoring and power via PoE. The EC-4BV is configured via simple drag-and-drop operations within the software application HiQnet Audio Architect.
The EC-4BV contains one push/rotary encoder one encoder ring four buttons and one LCD screen. The buttons encoder ring and LCD screen are multi-color backlit capable of eight different colors with adjustable intensity.
The push/rotary encoder can be rotated for continuous parameter control (e.g. volume). The push/rotary encoder can also be pressed for binary parameter control (e.g. mute) or preset recall.
The encoder ring can display a bouncing audio meter. When the push/rotary encoder is rotated the encoder ring can temporarily display a volume setting. When the push/rotary encoder is pressed the encoder ring can temporarily display a binary parameter setting (e.g. red/green for muted/unmuted status).
The four buttons can be pressed for binary parameter control (e.g. mute) preset recall or source selection.
The LCD screen has a screen resolution of 64x128 pixels and can display custom text.
The EC-4BV supports 'sleep' functionality. After a specified amount of time with no user input the EC-4BV can turn off all LEDs. This is useful to avoid distraction in a dimly lit environment. Any user interaction will 'wake up' the controller.
The EC-4BV can be remotely locked and unlocked via other control systems. The EC-4BV can be locally unlocked via a four-digit PIN entry on the buttons.
The EC-4BV supports multiple modes of operation. This allows the push/rotary encoder and encoder ring to be reassigned dynamically to different parameters based on which buttons are selected.
- Ethernet Wall Controller
- Compatible with BSS Audio Soundweb London Crown DCi and other HiQnet devices
- Available in Black or White
- Available in US Decora or EU Version
- Single-Gang Size
- PoE (Power Over Ethernet)
- Configured within Audio Architect via Drag-and-Drop
- 1 Programmable Push/Rotary Encoder
- 1 Programmable Encoder Ring (Multicolored)
- 4 Programmable Buttons (Multicolored)
- 1 Programmable 64x128 Pixel LCD (Multicolored)
- Sleep Function
- Security: Remote Lock/Unlock and Local Unlock via PIN Entry
- Multiple Modes of Operation
Dropship
Update
Couldn't load pickup availability

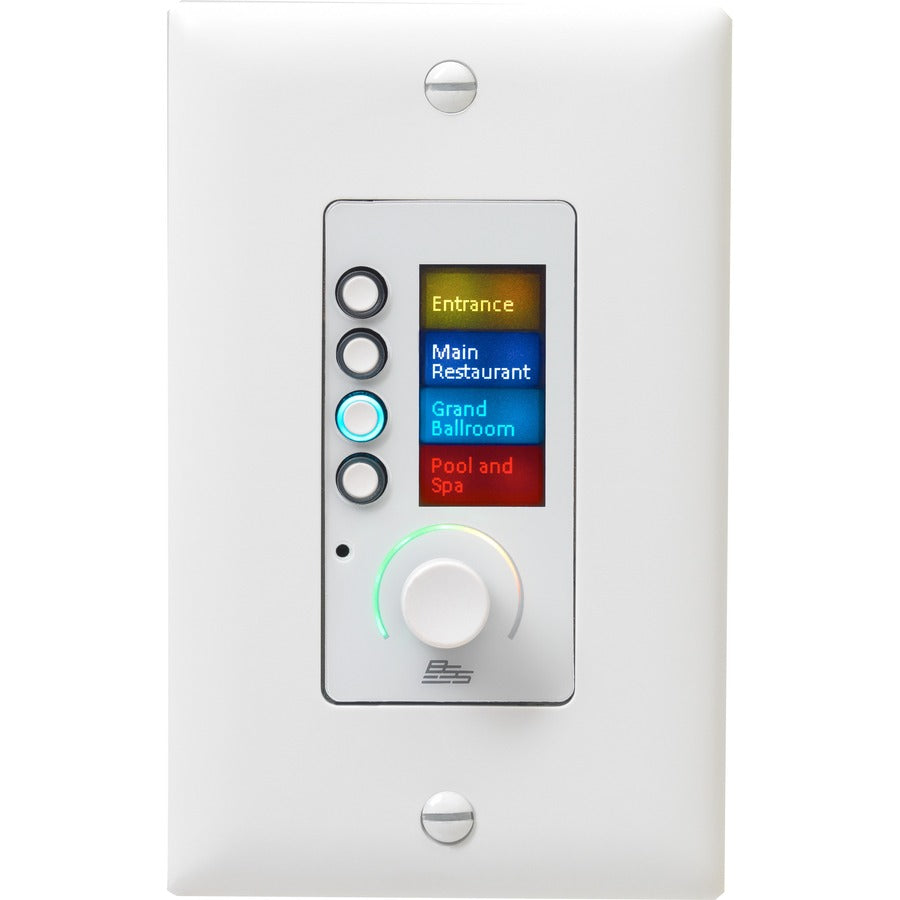

![BSS EC-4BV Ethernet Controller with 4 Buttons and Volume Control](http://tekmentum.com/cdn/shop/files/1032190719.jpg?v=1696653759&width=1445)
BSS EC-4BV Ethernet Controller with 4 Buttons and Volume Control
Manufacturer : Harman International Industries Inc
Manufacturer Part No : BSSEC4BV-WHT-M
Product Details
The Soundweb Contrio EC-4BV is an Ethernet wall controller for use in Harman HiQnet systems. The EC-4BV can control and monitor parameters within BSS Audio Soundweb London and other HiQnet devices including Crown DCi series amplifiers.
The EC-4BV is available in black or white and in single-gang US Decora or single-gang EU form factor. The EC-4BV contains a single Ethernet port for configuration control monitoring and power via PoE. The EC-4BV is configured via simple drag-and-drop operations within the software application HiQnet Audio Architect.
The EC-4BV contains one push/rotary encoder one encoder ring four buttons and one LCD screen. The buttons encoder ring and LCD screen are multi-color backlit capable of eight different colors with adjustable intensity.
The push/rotary encoder can be rotated for continuous parameter control (e.g. volume). The push/rotary encoder can also be pressed for binary parameter control (e.g. mute) or preset recall.
The encoder ring can display a bouncing audio meter. When the push/rotary encoder is rotated the encoder ring can temporarily display a volume setting. When the push/rotary encoder is pressed the encoder ring can temporarily display a binary parameter setting (e.g. red/green for muted/unmuted status).
The four buttons can be pressed for binary parameter control (e.g. mute) preset recall or source selection.
The LCD screen has a screen resolution of 64x128 pixels and can display custom text.
The EC-4BV supports 'sleep' functionality. After a specified amount of time with no user input the EC-4BV can turn off all LEDs. This is useful to avoid distraction in a dimly lit environment. Any user interaction will 'wake up' the controller.
The EC-4BV can be remotely locked and unlocked via other control systems. The EC-4BV can be locally unlocked via a four-digit PIN entry on the buttons.
The EC-4BV supports multiple modes of operation. This allows the push/rotary encoder and encoder ring to be reassigned dynamically to different parameters based on which buttons are selected.
- Ethernet Wall Controller
- Compatible with BSS Audio Soundweb London Crown DCi and other HiQnet devices
- Available in Black or White
- Available in US Decora or EU Version
- Single-Gang Size
- PoE (Power Over Ethernet)
- Configured within Audio Architect via Drag-and-Drop
- 1 Programmable Push/Rotary Encoder
- 1 Programmable Encoder Ring (Multicolored)
- 4 Programmable Buttons (Multicolored)
- 1 Programmable 64x128 Pixel LCD (Multicolored)
- Sleep Function
- Security: Remote Lock/Unlock and Local Unlock via PIN Entry
- Multiple Modes of Operation
