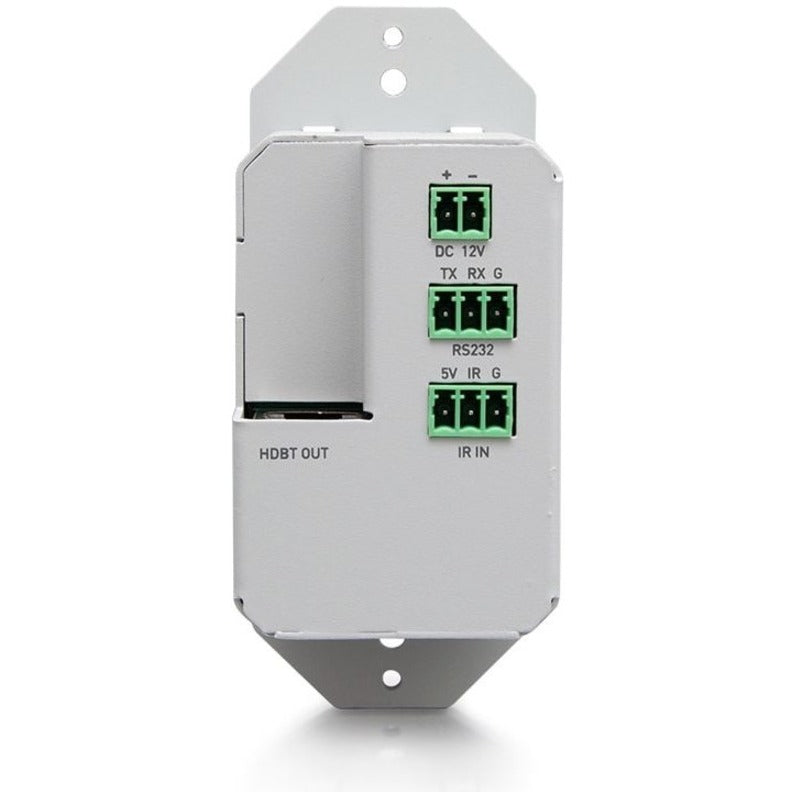

C2G 1-Gang HDMI HDBaseT Wall Plate Transmitter RS232 IR over Cat Extender

C2G 1-Gang HDMI HDBaseT Wall Plate Transmitter RS232 IR over Cat Extender

SKU: 1070033398      MFR: C2G

GTIN: 757120300212

Product Description

C2G 1-Gang HDMI HDBaseT Wall Plate Transmitter RS232 IR over Cat Extender - 1 Input Device - 230 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 4K UHD - Twisted Pair - Category 7 - Wall Plate

Manufacturer : C2G

Manufacturer Part No : C2G30021

Features

  • "C2G HDMI HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter
  • Extend 4K at 60Hz up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
  • Extend 4K at 60Hz up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
  • HDCP 2.2 compliant
  • Supports multi-channel audio formats including PCM 2.0/5.1/7.1 Dolby TrueHD Dolby Atmos DTS-HD Master Audio and DTS:X
  • Supports EDID from the HDMI out and connected receiver has EDID limitation function
  • Supports CEC pass-through allowing central control to all HDMI compatible devices
  • One-way IR pass through from the TX to the connected RX
  • One-way Power over Cable (PoC) powered by the receiver
  • Supports RS232 pass-through via HDBT port
  • HDBaseT Chipset VS010 for simpler HDBaseT installations

Product Details

Product TypeVideo Extender Transmitter
Maximum Operating Distance230 ft
Number of Network (RJ-45) Ports1
Number of HDMI Inputs1
Media Type SupportedTwisted Pair
Number of Input Devices Supported1
Connectivity TechnologyWired
Brand NameC2G
Form FactorWall Plate
Graphics Modes4K UHD
Twisted Pair Cable StandardCategory 7
Network (RJ-45)Yes
HDMI InYes
Transmitter Height4.16"
Transmitter Width1.77"
Transmitter Depth1.78"
Transmitter Weight (Approximate)6.35 oz
Product ColorWhite
Country of OriginChina
ManufacturerC2G
Product Name1-Gang HDMI HDBaseT Wall Plate Transmitter RS232 IR over Cat Extender
Manufacturer Part NumberC2G30021
Manufacturer Website Addresshttp://www.cablestogo.com
Marketing Information

The HDMI HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This transmitter is an ideal part of an HDBaseT solution where HDMI video and audio in conference rooms classrooms lecture halls and many other installation needs are far beyond the length limitations of standard HDMI cabling.

This transmitter extends HDMI over a single Cat5e Cat6 or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI up to 130 feet using a Cat6a cable.

Note:Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.

Note: Stranded Cat5e/6/6a patch cables may be used for HDMI extension applications up to 230ft. Shielded solid conductor Cat6 or HDBaseT Certified Cat6a network cabling is recommended for applications where the category cable must be coiled is run near other high-frequency signaling cables or in high EMI/RFI environments.
Limited Warranty5 Year
View full details
$388.99 USD
$388.99
Sale Sold out

In Stock - 2244 (Available by Sat, Jan 04 - Wed, Jan 08)


Update


Shipping calculated at checkout.

C2G 1-Gang HDMI HDBaseT Wall Plate Transmitter RS232 IR over Cat Extender - 1 Input Device - 230 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 4K UHD - Twisted Pair - Category 7 - Wall Plate

Manufacturer : C2G

Manufacturer Part No : C2G30021

Features

  • "C2G HDMI HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter
  • Extend 4K at 60Hz up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
  • Extend 4K at 60Hz up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
  • HDCP 2.2 compliant
  • Supports multi-channel audio formats including PCM 2.0/5.1/7.1 Dolby TrueHD Dolby Atmos DTS-HD Master Audio and DTS:X
  • Supports EDID from the HDMI out and connected receiver has EDID limitation function
  • Supports CEC pass-through allowing central control to all HDMI compatible devices
  • One-way IR pass through from the TX to the connected RX
  • One-way Power over Cable (PoC) powered by the receiver
  • Supports RS232 pass-through via HDBT port
  • HDBaseT Chipset VS010 for simpler HDBaseT installations

Product Details

Product TypeVideo Extender Transmitter
Maximum Operating Distance230 ft
Number of Network (RJ-45) Ports1
Number of HDMI Inputs1
Media Type SupportedTwisted Pair
Number of Input Devices Supported1
Connectivity TechnologyWired
Brand NameC2G
Form FactorWall Plate
Graphics Modes4K UHD
Twisted Pair Cable StandardCategory 7
Network (RJ-45)Yes
HDMI InYes
Transmitter Height4.16"
Transmitter Width1.77"
Transmitter Depth1.78"
Transmitter Weight (Approximate)6.35 oz
Product ColorWhite
Country of OriginChina
ManufacturerC2G
Product Name1-Gang HDMI HDBaseT Wall Plate Transmitter RS232 IR over Cat Extender
Manufacturer Part NumberC2G30021
Manufacturer Website Addresshttp://www.cablestogo.com
Marketing Information

The HDMI HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This transmitter is an ideal part of an HDBaseT solution where HDMI video and audio in conference rooms classrooms lecture halls and many other installation needs are far beyond the length limitations of standard HDMI cabling.

This transmitter extends HDMI over a single Cat5e Cat6 or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI up to 130 feet using a Cat6a cable.

Note:Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.

Note: Stranded Cat5e/6/6a patch cables may be used for HDMI extension applications up to 230ft. Shielded solid conductor Cat6 or HDBaseT Certified Cat6a network cabling is recommended for applications where the category cable must be coiled is run near other high-frequency signaling cables or in high EMI/RFI environments.
Limited Warranty5 Year
