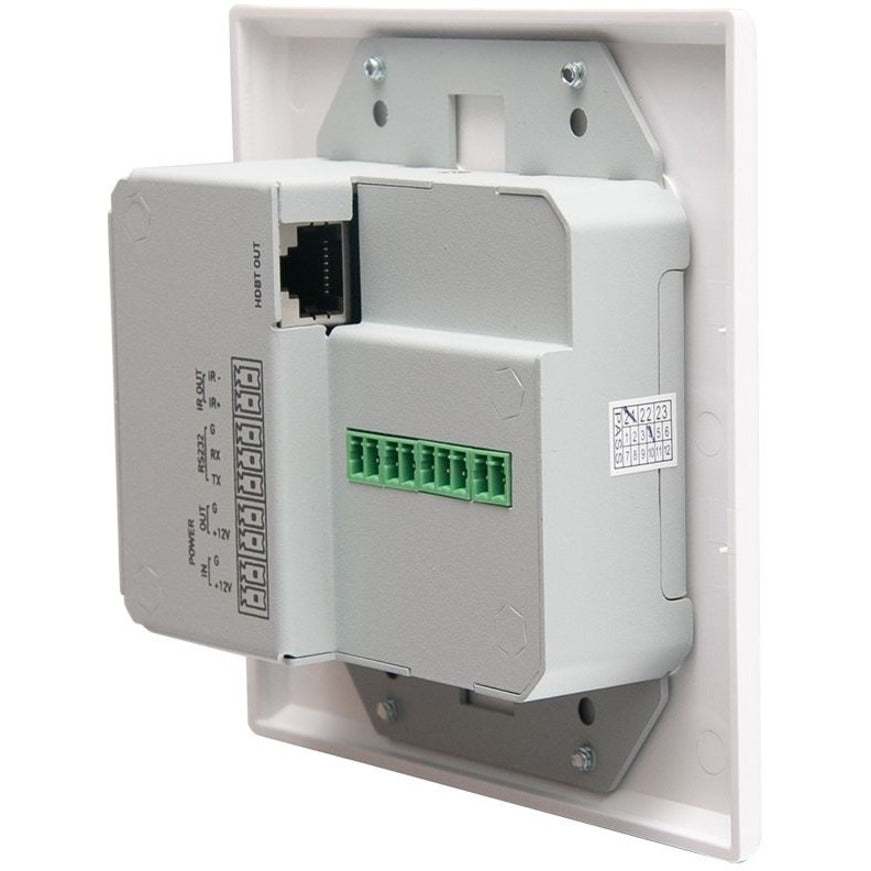

C2G 1 HDMI+VGA Wall Plate TX

C2G 1 HDMI+VGA Wall Plate TX

SKU: 1068934030      MFR: C2G

GTIN: 757120300175

Product Description

C2G 1 HDMI+VGA Wall Plate TX - 2 Input Device - 230 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x VGA In - 4K UHD - Twisted Pair - Category 6a - Wall Plate

Manufacturer : C2G

Manufacturer Part No : C2G30017

Features

  • Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
  • Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
  • Supports VGA resolutions up to 1920x1200 at 60Hz
  • Supports auto switching
  • HDCP 2.2 compliant to create a secure connection between the source and display
  • All audio inputs support EDID - fixed at PCM 2CH
  • HDMI input supports EDID - copied from HDBaseT receiver
  • Independent DIP switch provided for VGA EDID Management
  • Supports IR and RS232 pass-through
  • Supports PoC PD to receive power from an HDBaseT receiver with PSE module

Product Details

Product TypeVideo Extender Transmitter
Maximum Operating Distance230 ft
Number of Network (RJ-45) Ports1
Number of HDMI Inputs1
Media Type SupportedTwisted Pair
Number of Input Devices Supported2
Number of VGA Inputs1
Connectivity TechnologyWired
Brand NameC2G
Form FactorWall Plate
Graphics Modes4K UHD
Twisted Pair Cable StandardCategory 6a
Network (RJ-45)Yes
VGA InYes
HDMI InYes
Transmitter Height1.51"
Transmitter Width3.50"
Transmitter Depth4.16"
Transmitter Weight (Approximate)10.58 oz
Country of OriginChina
ColorBlack
ManufacturerC2G
Product Name1 HDMI+VGA Wall Plate TX
Manufacturer Part NumberC2G30017
Manufacturer Website Addresshttp://www.cablestogo.com
Marketing Information

The HDMI HDBaseT + VGA 3.5mm RS232 and IR over Cat Extender Dual Gang Wall Plate Transmitter - 4K 60Hz allows 4K HDMI or VGA sources to be extended using a single Cat6a Ethernet cable. This is an ideal solution where video and audio needs to be extended to displays in conference rooms classrooms lecture halls and many other installation needs that are far beyond the length limitations of standard cabling.

This transmitter extends HDMI and VGA signals over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p VGA up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI or up to 130 feet using a Cat6a cable.

This HDMI HDBaseT transmitter is HDCP 2.2 compliant making sure that the connection from the source is secure. The transmitter supports PoC PD to receive power from an HDBaseT receiver with PSE module. It can also be powered by local 12V power supply and share power with the receiver via the 3-pin phoenix power out connector so no additional power adapter is required allowing for greater flexibility in installations. Advanced users can control IR and RS232 pass through.
Limited Warranty5 Year
View full details
$409.99 USD
$409.99
Sale Sold out

Back Order

Get it by Wed, Jun 11 - Mon, Jun 16


Update


Shipping calculated at checkout.

C2G 1 HDMI+VGA Wall Plate TX - 2 Input Device - 230 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x VGA In - 4K UHD - Twisted Pair - Category 6a - Wall Plate

Manufacturer : C2G

Manufacturer Part No : C2G30017

Features

  • Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
  • Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
  • Supports VGA resolutions up to 1920x1200 at 60Hz
  • Supports auto switching
  • HDCP 2.2 compliant to create a secure connection between the source and display
  • All audio inputs support EDID - fixed at PCM 2CH
  • HDMI input supports EDID - copied from HDBaseT receiver
  • Independent DIP switch provided for VGA EDID Management
  • Supports IR and RS232 pass-through
  • Supports PoC PD to receive power from an HDBaseT receiver with PSE module

Product Details

Product TypeVideo Extender Transmitter
Maximum Operating Distance230 ft
Number of Network (RJ-45) Ports1
Number of HDMI Inputs1
Media Type SupportedTwisted Pair
Number of Input Devices Supported2
Number of VGA Inputs1
Connectivity TechnologyWired
Brand NameC2G
Form FactorWall Plate
Graphics Modes4K UHD
Twisted Pair Cable StandardCategory 6a
Network (RJ-45)Yes
VGA InYes
HDMI InYes
Transmitter Height1.51"
Transmitter Width3.50"
Transmitter Depth4.16"
Transmitter Weight (Approximate)10.58 oz
Country of OriginChina
ColorBlack
ManufacturerC2G
Product Name1 HDMI+VGA Wall Plate TX
Manufacturer Part NumberC2G30017
Manufacturer Website Addresshttp://www.cablestogo.com
Marketing Information

The HDMI HDBaseT + VGA 3.5mm RS232 and IR over Cat Extender Dual Gang Wall Plate Transmitter - 4K 60Hz allows 4K HDMI or VGA sources to be extended using a single Cat6a Ethernet cable. This is an ideal solution where video and audio needs to be extended to displays in conference rooms classrooms lecture halls and many other installation needs that are far beyond the length limitations of standard cabling.

This transmitter extends HDMI and VGA signals over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p VGA up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI or up to 130 feet using a Cat6a cable.

This HDMI HDBaseT transmitter is HDCP 2.2 compliant making sure that the connection from the source is secure. The transmitter supports PoC PD to receive power from an HDBaseT receiver with PSE module. It can also be powered by local 12V power supply and share power with the receiver via the 3-pin phoenix power out connector so no additional power adapter is required allowing for greater flexibility in installations. Advanced users can control IR and RS232 pass through.
Limited Warranty5 Year
