The HDMI and VGA + Stereo Audio HDBaseT over Cat6 Extender Wall Plate Transmitter is an ideal solution for extending audio/video signals from a Blu-ray- player and a laptop to a projector. This transmitter extends HDMI VGA and Stereo Audio signals over a single Cat5e Cat6 or Cat6a unshielded twisted pair network patch cable up to 115 feet at a 4K (4096 x 2160 at 30Hz 4:4:4) for HDMI and 230 feet at a 1080p resolution for VGA. The rear cable connections for the Cat6 cable and the optional serial cable are set at 90 degrees making connections in a wall box easy. The local HDMI output of the front of the wall plate allows an additional HDMI display to be supported via an HDMI cable. Switching between HDMI and VGA inputs is made easy with three options available. Automatic switching displays the last connected device manual switching via the button on the front of the wall plate or Serial RS232 switching which accepts serial commands from a control device like the C2G TruLink A/V Controller. This solution is compatible with any operating system and is truly plug and play with no drivers or software required. This solution utilizes TruChoice power which allows power to be supplied over the Cat5 cable to both the transmitter and receiver from a single power adapter placed at either the transmitter or the receiver end of the solution. HDBaseT technology supports HDCP and allows the Extended Display Identification Data (EDID) signals i.e. communication of the display's capabilities to pass through the extension solution ensuring that the content from the source is sent at the optimal resolution for the display. Built-in power surge protection and high ground loop immunity ensure high performance signal extension. This transmitter is compatible with any of the HDMI HDBaseT receivers offered by C2G and works with C2G DB9 to RJ25 Serial RS232 Cables.

Note: Stranded Cat5e/6/6a patch cables may be used for HDMI extension applications up to 230ft. Shielded solid conductor Cat5e/6/6a network cabling is recommended for applications where the Cat5e/6/6a cable must be coiled is run near other high-frequency signaling cables or in high EMI/RFI environments.

For best performance use a -Cat6 Solid Shielded Patch Cable.

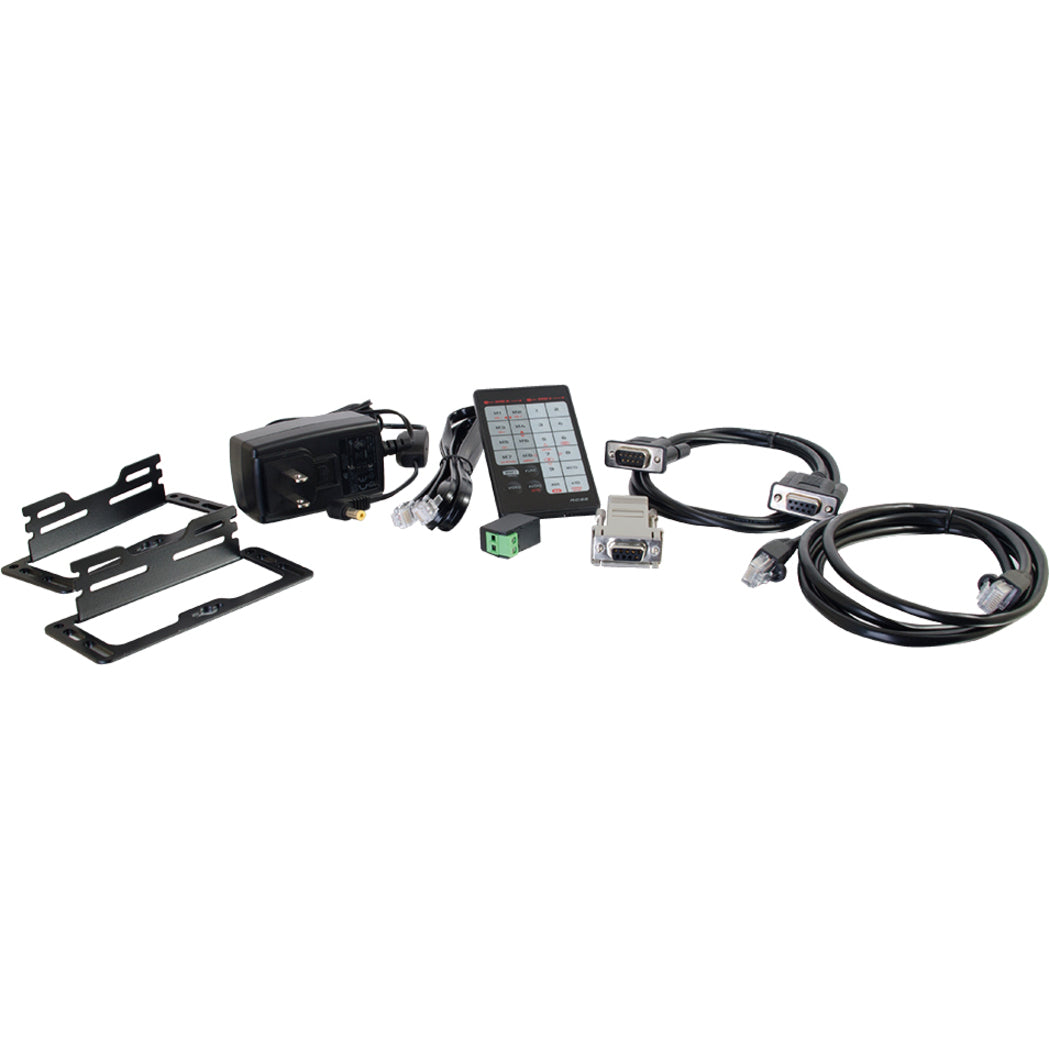

• HDMI and VGA + Stereo Audio HDBaseT over Cat5 Extender Transmitter - Black
• Power Adapter
• 2 x Mounting Bracket with Screw Pack
• User's Manual
• 1.5 Meter Cat5 Cable
• RJ11 to RS232 Converter
• RS232 Cable
• RJ11 Cable
• 3 x HDMI Cable Tie Pack + Hex Nut Pack
• Foot Pad Set
• IR Remote Control
• AV Console Center Software Disc
