• C2G 4K HDMI HDBaseT + USB and RS232 Wall Plate Transmitter to Receiver
    C2G 4K HDMI HDBaseT + USB and RS232 Wall Plate Transmitter to Receiver
  • C2G 4K HDMI HDBaseT + USB and RS232 Wall Plate Transmitter to Receiver
1 2

C2G 4K HDMI HDBaseT + USB and RS232 Wall Plate Transmitter to Receiver

C2G 4K HDMI HDBaseT + USB and RS232 Wall Plate Transmitter to Receiver

SKU: 1076821633      MFR: C2G

GTIN: 757120310303

Product Description

C2G 4K HDMI HDBaseT + USB and RS232 Wall Plate Transmitter to Receiver - 1 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 5 x USB - 1 x HDMI In - 1 x HDMI Out - 1080p - 4K - 3840 x 2160 - Twisted Pair - Category 7 - Commercial - Wall Plate

Manufacturer : C2G

Manufacturer Part No : C2G31030

Features

  • Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
  • Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
  • HDCP 2.2 compliant to create a secure connection between the source and display
  • HDBaseT Chipset VS210 for simpler HDBaseT installations
  • The Transmitter supports automatic switching following the last-in-first-out rule
  • One-way analog audio pass through from wall-plate transmitter to receiver
  • Supports USB 2.0 pass through over HDBT up to 230ft connecting up to 4 USB devices to the receiver
  • Supports CEC switch command sent by wall-plate
  • One-way Power over HDBaseT (PoH) so that the wall plate can be powered by receiver
  • The transmitter supports firmware upgrade and device control via the Micro USB port

Product Details

Product TypeVideo Extender Transmitter/Receiver
Graphics Modes4K
Maximum Video Resolution3840 x 2160
Twisted Pair Cable StandardCategory 7
Maximum Operating Distance230 ft
USBYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports5
Number of HDMI Inputs1
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Number of Input Devices Supported1
Transmitter Height4.16"
Transmitter Width1.77"
Transmitter Depth1.78"
Receiver Height0.98"
Receiver Width9.06"
Receiver Depth3.55"
Transmitter Weight (Approximate)7.05 oz
Receiver Weight (Approximate)1.34 lb
Product ColorWhite
Supported Video Modes1080p
Country of OriginChina
Connectivity TechnologyWired
Brand NameC2G
Form FactorWall Plate
ManufacturerC2G
Product ModelC2G31030
Product Name4K HDMI HDBaseT + USB and RS232 Wall Plate Transmitter to Receiver
Application/UsageCommercial
Manufacturer Part NumberC2G31030
Manufacturer Website Addresshttp://www.cablestogo.com
Marketing InformationThe HDMI HDBaseT + USB-B to A and RS232 over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where USB must also be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms classrooms lecture halls and many other installation needs far beyond the length limitations of standard HDMI cabling.

This HDBaseT kit extends HDMI and high speed USB 2.0 over a single Cat5e Cat6 or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI up to 130 feet using a Cat6a cable. Extend USB 2.0 pass through up to 230ft connecting up to 4 USB devices to the receiver.

This kit is HDCP 2.2 compliant making sure that the connection from the source is secure. Multi-channel audio formats are supported including PCM 2.0/5.1/7.1 Dolby TrueHD Dolby Atmos DTS-HD Master Audio and DTS:X. High speed USB 2.0 pass-through supports up to 230ft for KVM control of devices such as USB cameras keyboards mice etc. With one-way Power over HDBaseT (PoH) support the transmitter gets its power from the receiver so no additional power adapter is required allowing for greater installation flexibility. Advanced users can control RS232 pass-through to pass RS232 commands between the wall plate and the receiver. The receiver toggle switch also allows for the selection of upgrades that can upgrade both the wall plate and receiver.

Support this HDBaseT system that is already deployed in the field by upgrading firmware through the Micro-USB port on front panel of the wall plate transmitter and upgrade the firmware through the RS232 port on rear panel of the receiver.

Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.
Package Contents
  • 1 x Transmitter
  • 1 x Receiver

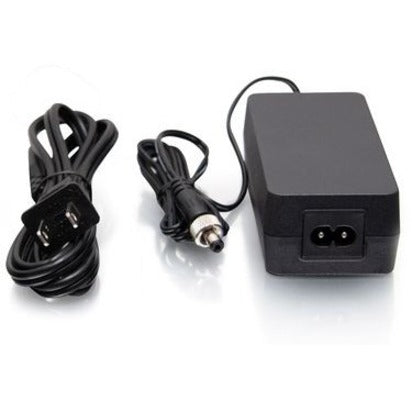

  • 1 x DC 12V US Power Adapter
  • 1 x Phoenix Connector (3.5mm 2 Pins)
  • 2 x Phoenix Connector (3.5mm 3 Pins)
  • 1 x 1 - Gang US Socket Cover White (with Screws)
  • 2 x Mounting Brackets (with screws)
  • 1 x Manual
Limited Warranty5 Year
View full details
$898.99 USD
$898.99
Sale Sold out

Dropship


Update


Shipping calculated at checkout.

C2G 4K HDMI HDBaseT + USB and RS232 Wall Plate Transmitter to Receiver - 1 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 5 x USB - 1 x HDMI In - 1 x HDMI Out - 1080p - 4K - 3840 x 2160 - Twisted Pair - Category 7 - Commercial - Wall Plate

Manufacturer : C2G

Manufacturer Part No : C2G31030

Features

  • Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
  • Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
  • HDCP 2.2 compliant to create a secure connection between the source and display
  • HDBaseT Chipset VS210 for simpler HDBaseT installations
  • The Transmitter supports automatic switching following the last-in-first-out rule
  • One-way analog audio pass through from wall-plate transmitter to receiver
  • Supports USB 2.0 pass through over HDBT up to 230ft connecting up to 4 USB devices to the receiver
  • Supports CEC switch command sent by wall-plate
  • One-way Power over HDBaseT (PoH) so that the wall plate can be powered by receiver
  • The transmitter supports firmware upgrade and device control via the Micro USB port

Product Details

Product TypeVideo Extender Transmitter/Receiver
Graphics Modes4K
Maximum Video Resolution3840 x 2160
Twisted Pair Cable StandardCategory 7
Maximum Operating Distance230 ft
USBYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports5
Number of HDMI Inputs1
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Number of Input Devices Supported1
Transmitter Height4.16"
Transmitter Width1.77"
Transmitter Depth1.78"
Receiver Height0.98"
Receiver Width9.06"
Receiver Depth3.55"
Transmitter Weight (Approximate)7.05 oz
Receiver Weight (Approximate)1.34 lb
Product ColorWhite
Supported Video Modes1080p
Country of OriginChina
Connectivity TechnologyWired
Brand NameC2G
Form FactorWall Plate
ManufacturerC2G
Product ModelC2G31030
Product Name4K HDMI HDBaseT + USB and RS232 Wall Plate Transmitter to Receiver
Application/UsageCommercial
Manufacturer Part NumberC2G31030
Manufacturer Website Addresshttp://www.cablestogo.com
Marketing InformationThe HDMI HDBaseT + USB-B to A and RS232 over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where USB must also be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms classrooms lecture halls and many other installation needs far beyond the length limitations of standard HDMI cabling.

This HDBaseT kit extends HDMI and high speed USB 2.0 over a single Cat5e Cat6 or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI up to 130 feet using a Cat6a cable. Extend USB 2.0 pass through up to 230ft connecting up to 4 USB devices to the receiver.

This kit is HDCP 2.2 compliant making sure that the connection from the source is secure. Multi-channel audio formats are supported including PCM 2.0/5.1/7.1 Dolby TrueHD Dolby Atmos DTS-HD Master Audio and DTS:X. High speed USB 2.0 pass-through supports up to 230ft for KVM control of devices such as USB cameras keyboards mice etc. With one-way Power over HDBaseT (PoH) support the transmitter gets its power from the receiver so no additional power adapter is required allowing for greater installation flexibility. Advanced users can control RS232 pass-through to pass RS232 commands between the wall plate and the receiver. The receiver toggle switch also allows for the selection of upgrades that can upgrade both the wall plate and receiver.

Support this HDBaseT system that is already deployed in the field by upgrading firmware through the Micro-USB port on front panel of the wall plate transmitter and upgrade the firmware through the RS232 port on rear panel of the receiver.

Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.
Package Contents
  • 1 x Transmitter
  • 1 x Receiver
  • 1 x DC 12V US Power Adapter
  • 1 x Phoenix Connector (3.5mm 2 Pins)
  • 2 x Phoenix Connector (3.5mm 3 Pins)
  • 1 x 1 - Gang US Socket Cover White (with Screws)
  • 2 x Mounting Brackets (with screws)
  • 1 x Manual
Limited Warranty5 Year
