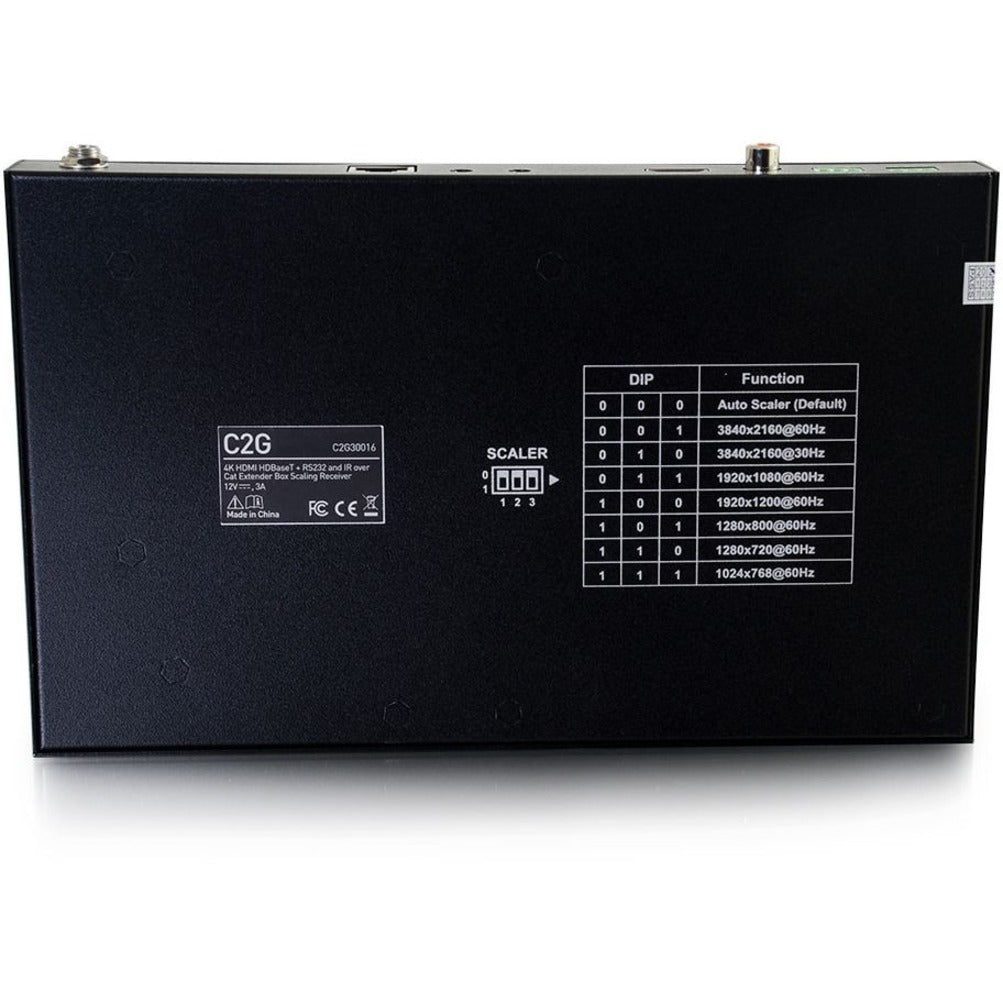

The HDMI HDBaseT + RS232 and IR over Cat Extender Box Scaling Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 328ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where HDMI video and audio need to be extended to displays in conference rooms classrooms lecture halls and many other installation needs that are far beyond the length limitations of standard HDMI cabling.

This scaling receiver accepts HDMI signals over a single network patch cable. Extend 4K HDMI up to 230 feet and 1080p up to 328 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI or up to 328 feet using a Cat6a cable.

This HDMI HDBaseT receiver is HDCP 2.2 compliant making sure that the connection from the source is secure. The S/PDIF output allows for the de-embedding of a connected audio device. One-way PoC provides power to the transmitter with PD module via Cat cable so no additional power adapter is required allowing for greater flexibility in installations. The USB Micro-B input supports necessary firmware updates. Advanced users can control bi-directional IR and device control through the RS232 port. The RS232 controller has pre-loaded power on/off/standby commands and auto trigger for the display device.

Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors. Stranded Cat5e/6/6a patch cables may be used for HDMI extension applications up to 230ft. Shielded solid conductor Cat6 or HDBaseT Certified Cat6a network cabling is recommended for applications where the category cable must be coiled is run near other high-frequency signaling cables or in high EMI/RFI environments.
