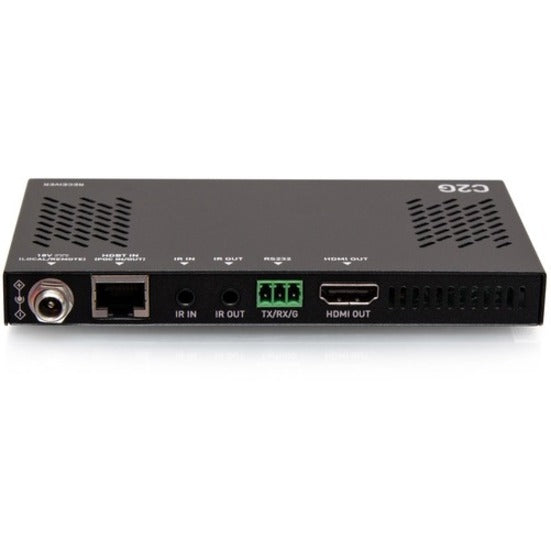

The HDMI Ultra-Slim HDBaseT + RS232 And IR over Cat Extender Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where HDMI video and audio need to be extended to displays in conference rooms classrooms lecture halls and many other installation needs that are far beyond the length limitations of standard HDMI cabling.

This receiver accepts HDMI signals over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI or up to 130 feet using a Cat6a cable. This HDMI HDBaseT receiver is HDCP 2.2 compliant making sure that the connection from the source is secure. With bi-directional PoC support one power adapter at either transmitter or receiver side can power both units so no additional power adapter is required allowing for greater flexibility in installations. Support this HDBaseT system that is already deployed in the field by upgrading firmware through the RS232 port.

Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.

Note: Stranded Cat5e/6/6a patch cables may be used for HDMI extension applications up to 230ft. Shielded solid conductor Cat6 or HDBaseT Certified Cat6a network cabling is recommended for applications where the category cable must be coiled is run near other high-frequency signaling cables or in high EMI/RFI environments.
