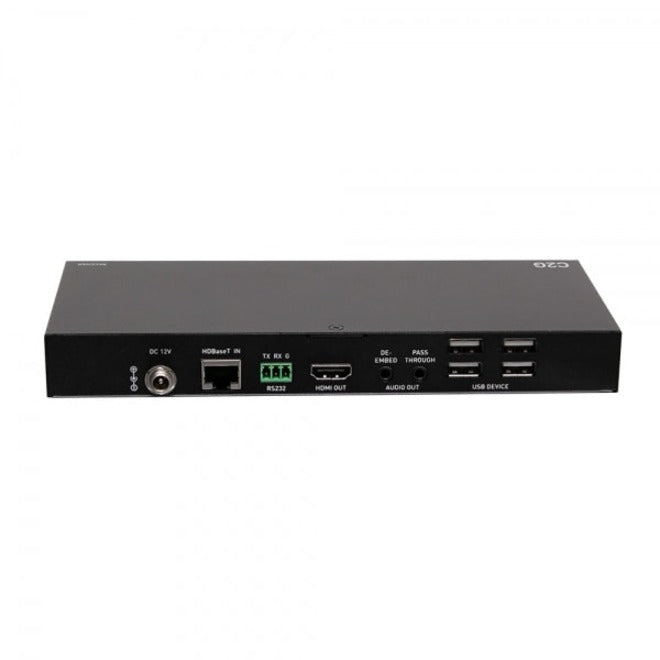

The HDMI HDBaseT + 3.5mm USB-A and RS232 over Cat Audio De-Embedding Extender Box Receiver - 4K 60Hz connects to a transmitter to allow a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where USB must be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms classrooms lecture halls and many other installation needs that are far beyond the length limitations of standard HDMI cabling.

The receiver extends HDMI and high speed USB 2.0 signals over a single Cat5e Cat6 or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI up to 130 feet using a Cat6a cable.

This HDMI HDBaseT receiver is HDCP 2.2 compliant making sure that the connection between the source and display is secure. Automatic switching is supported connecting to the last active source. Additional analog audio output pass-through allows for audio distribution. High-speed USB 2.0 pass through is supported over HDBaseT up to 230ft for KVM control of devices such as USB cameras keyboards mice etc. With PoH support the receiver can send power to the transmitter so no additional power adapter is required allowing for greater flexibility in installations. Advanced users can control the transmitter via the RS232 port on receiver.

Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.
