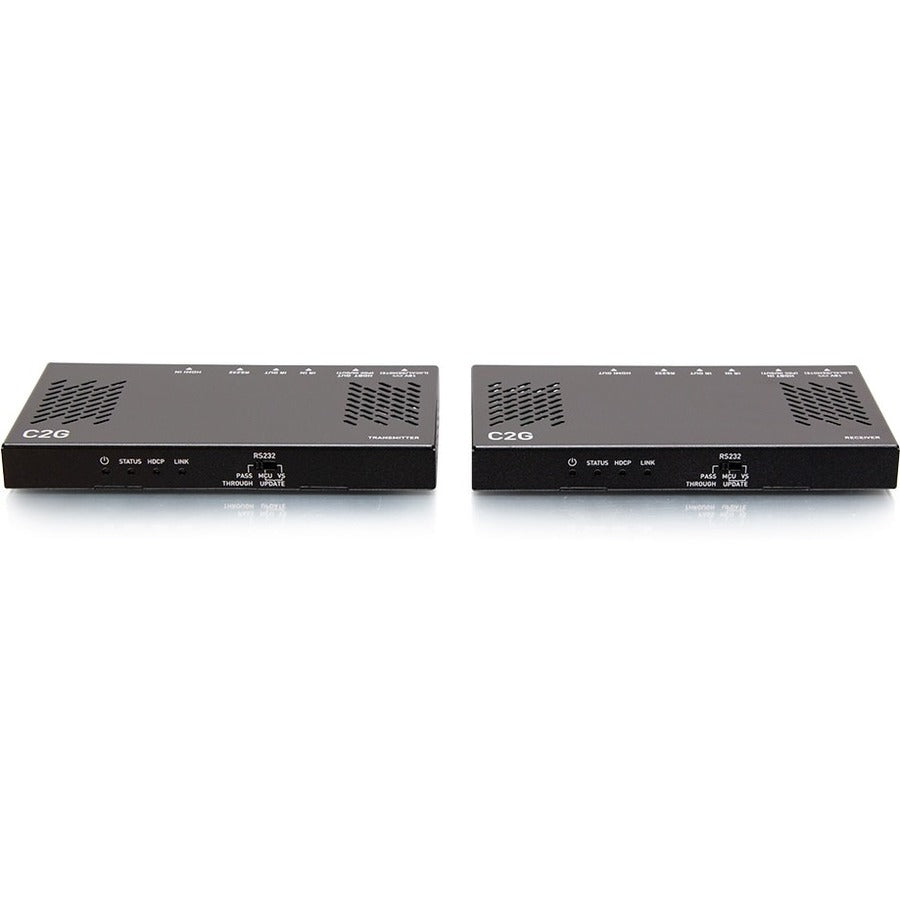

The HDMI HDBaseT + RS232 and IR over Cat Extender Box Transmitter to Box Receiver (18Gbps) - 4K 60Hz allows a 4K HDMI source to be extended up to 328ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where HDMI video and audio in conference rooms classrooms lecture halls and many other installation needs are far beyond the length limitations of standard HDMI cabling.

Extend 4K HDMI up to 230 feet and 1080p up to 328 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI or up to 328 feet using a Cat6a cable.

This HDMI HDBaseT receiver supports Visual Lossless Compression (VLC) which means the compressed data will appear identical to the uncompressed data. The receiver is also HDCP 2.2 compliant making sure that the connection from the source is secure. With bi-directional Power over Cable (PoC) support one power adapter at either transmitter or receiver side can power both units so no additional power adapter is required allowing for greater flexibility in installations. Advanced users can control bi-directional IR and device control through the RS232 port.

Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.

• 1 x Transmitter
• 1 x Receiver
