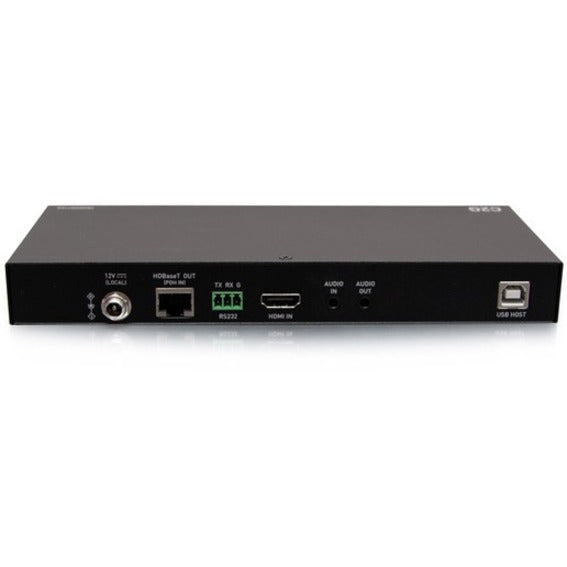

C2G Video Extender Transmitter/Receiver

C2G Video Extender Transmitter/Receiver

SKU: 1076031012      MFR: C2G

GTIN: 757120310136

Product Description

C2G Video Extender Transmitter/Receiver - 1 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 5 x USB - 1 x HDMI In - 1 x HDMI Out - 1080p - 4K - Twisted Pair - Category 7

Manufacturer : C2G

Manufacturer Part No : C2G31013

Features

  • Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
  • Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
  • HDCP 2.2 compliant to create a secure connection between the source and display
  • HDBaseT Chipset VS210 for simpler HDBaseT installations
  • One-way analog audio pass through from wall-plate transmitter to receiver
  • Supports USB 2.0 pass through over HDBT up to 230ft connecting up to 4 USB devices to the receiver
  • Supports CEC switch command sent by wall-plate
  • One-way Power over HDBaseT (PoH) so that the wall plate can be powered by receiver

Product Details

Product TypeVideo Extender Transmitter/Receiver
Graphics Modes4K
Twisted Pair Cable StandardCategory 7
Maximum Operating Distance230 ft
USBYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports5
Number of HDMI Inputs1
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Number of Input Devices Supported1
Transmitter Height0.98"
Transmitter Width8.27"
Transmitter Depth3.55"
Receiver Height0.98"
Receiver Width8.27"
Receiver Depth3.55"
Transmitter Weight (Approximate)15.52 oz
Receiver Weight (Approximate)1.06 lb
Product ColorBlack
Supported Video Modes1080p
Country of OriginChina
Connectivity TechnologyWired
Brand NameC2G
ManufacturerC2G
Product NameVideo Extender Transmitter/Receiver
Manufacturer Part NumberC2G31013
Manufacturer Website Addresshttp://www.cablestogo.com
Marketing InformationThe HDMI HDBaseT + 3.5mm USB-B to A and RS232 over Cat Extender Box Transmitter to Box Receiver - 4k 60hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where USB must be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms classrooms lecture halls and many other installation needs that are far beyond the length limitations of standard HDMI cabling.

The transmitter extends HDMI and high speed USB 2.0 signals over a single Cat5e Cat6 or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI or up to 130 feet using a Cat6a cable.

This HDMI HDBaseT Extender is HDCP 2.2 compliant making sure that the connection between the source and display is secure. One-way analog audio pass through is supported from the transmitter to the receiver. High speed USB 2.0 pass through is supported over HDBaseT up to 230ft for KVM control of devices such as USB cameras keyboards mice etc. With PoH support the transmitter sends power to both the transmitter and the receiver so no additional power adapter is required allowing for greater flexibility in installations. Support this HDBaseT system that is already deployed in the field by upgrading firmware through the RS232 port.
Package Contents
  • 1 x Transmitter Unit
  • 1 x Receiver Unit
