Chelsio 10G long reach SFP + Optic Module

Chelsio 10G long reach SFP + Optic Module

SKU: 1014330204      MFR: Chelsio Communications

GTIN: 897709002530

Product Description

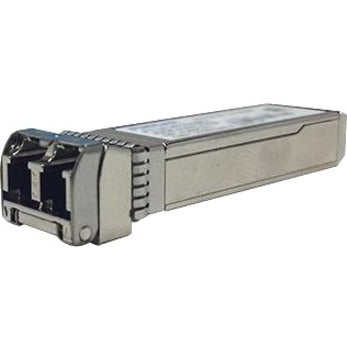

Chelsio 10G long reach SFP + Optic Module - 1 x 10GBase-LR10 - Hot-pluggable

Manufacturer : Chelsio Communications

Manufacturer Part No : SM10G-LR

Features

  • Hot-pluggable SFP+ footprint
  • Improved pluggable form factor
  • Supports 9.95 to 10.5 Gb/s bit rates
  • Maximum link length of 10km
  • Uncooled 1310nm DFB laser
  • Receiver limiting electrical interface
  • Duplex LC connector
  • Built-in digital diagnostic functions

Product Details

Product TypeSFP+
ManufacturerChelsio Communications
Product ModelSM10G-LR
Product Name10Gb Optical Module
Network Technology10GBase-LR
Application/UsageData Networking
Manufacturer Part NumberSM10G-LR
Manufacturer Website Addresshttp://www.chelsio.com
Marketing InformationChelsio's SM10G-LR 10Gb/s 1310nm Single Mode SFP+ optical transceivers are designed and certified for use with Chelsio 10-Gigabit Ethernet links up to 10km. The Chelsio SM10G-LR Transceiver is compatible with Chelsio's T5-based Unified Wire Adapters.

The T5 adapters support PCI Express 3.0 host bus interface and are optimized for storage cloud computing HPC virtualization and other data center applications. The fifth-generation T5 ASIC technology from Chelsio provides the highest performance while dramatically lowering host-system CPU and memory overhead with on-board hardware that offloads TCP/IP iSCSI FCoE and iWARP RDMA processing. As a result the system benefits from higher bandwidth lower latency and reduced power consumption.
Interfaces/Ports Details1 x 10GBase-LR
Additional Information

Long reach
Environmentally FriendlyYes
Environmental CertificationRoHS-6
Maximum Data Transfer Rate10
Ethernet Technology10 Gigabit Ethernet
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports1
Brand NameChelsio
Compatibility
  • T520-CR
  • T520-LL-CR
  • T520-SO-CR
  • T540-CR
  • T520-OCP-SO
  • T580-CR (QSA Mode)
  • T580-LP-CR (QSA Mode)
  • T580-SO-CR (QSA Mode)
Form FactorHot-pluggable
View full details
$44.99 USD
$44.99
Sale Sold out

In Stock - 2 (Available by Sat, Dec 27 - Thu, Jan 01)


Update


Shipping calculated at checkout.

Chelsio 10G long reach SFP + Optic Module - 1 x 10GBase-LR10 - Hot-pluggable

Manufacturer : Chelsio Communications

Manufacturer Part No : SM10G-LR

Features

  • Hot-pluggable SFP+ footprint
  • Improved pluggable form factor
  • Supports 9.95 to 10.5 Gb/s bit rates
  • Maximum link length of 10km
  • Uncooled 1310nm DFB laser
  • Receiver limiting electrical interface
  • Duplex LC connector
  • Built-in digital diagnostic functions

Product Details

Product TypeSFP+
ManufacturerChelsio Communications
Product ModelSM10G-LR
Product Name10Gb Optical Module
Network Technology10GBase-LR
Application/UsageData Networking
Manufacturer Part NumberSM10G-LR
Manufacturer Website Addresshttp://www.chelsio.com
Marketing InformationChelsio's SM10G-LR 10Gb/s 1310nm Single Mode SFP+ optical transceivers are designed and certified for use with Chelsio 10-Gigabit Ethernet links up to 10km. The Chelsio SM10G-LR Transceiver is compatible with Chelsio's T5-based Unified Wire Adapters.

The T5 adapters support PCI Express 3.0 host bus interface and are optimized for storage cloud computing HPC virtualization and other data center applications. The fifth-generation T5 ASIC technology from Chelsio provides the highest performance while dramatically lowering host-system CPU and memory overhead with on-board hardware that offloads TCP/IP iSCSI FCoE and iWARP RDMA processing. As a result the system benefits from higher bandwidth lower latency and reduced power consumption.
Interfaces/Ports Details1 x 10GBase-LR
Additional Information

Long reach
Environmentally FriendlyYes
Environmental CertificationRoHS-6
Maximum Data Transfer Rate10
Ethernet Technology10 Gigabit Ethernet
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports1
Brand NameChelsio
Compatibility
  • T520-CR
  • T520-LL-CR
  • T520-SO-CR
  • T540-CR
  • T520-OCP-SO
  • T580-CR (QSA Mode)
  • T580-LP-CR (QSA Mode)
  • T580-SO-CR (QSA Mode)
Form FactorHot-pluggable
