• Chelsio 25Gb Optical Module
    Chelsio 25Gb Optical Module
1 1

Chelsio 25Gb Optical Module

Chelsio 25Gb Optical Module

SKU: 1035811100      MFR: Chelsio Communications

GTIN: 897709002905

Product Description

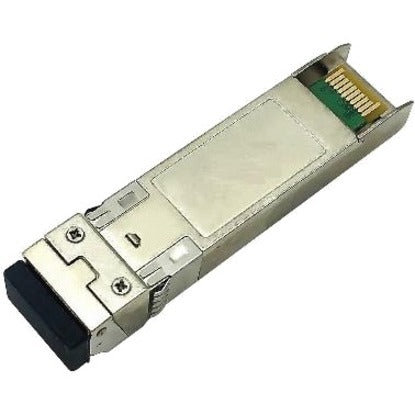

Chelsio 25Gb Optical Module - For Data Networking Optical Network - 1 x 25GBase-LR Network - Optical Fiber - Single-mode - 25 Gigabit Ethernet - 25GBase-LR - Hot-pluggable

Manufacturer : Chelsio Communications

Manufacturer Part No : SM25G-LR

Features

  • Hot-pluggable SFP28 footprint
  • 25G Ethernet maximum bit rate
  • Built-in digital diagnostic functions
  • All-metal housing for superior EMI performance
  • Cost-effective and optimized for high-speed datacenter interconnects.

Product Details

Product TypeSFP28
Ethernet Technology25 Gigabit Ethernet
Media Type SupportedOptical Fiber
Brand NameChelsio
Network Technology25GBase-LR
Environmentally FriendlyYes
Environmental CertificationRoHS-6
Fiber Mode SupportedSingle-mode
Total Number of Ports1
Compatibility

Chelsio Wire Adapters:

  • T6225-CR
  • T6425-CR
  • T6225-LL-CR
  • T6225-SO-CR
  • T6225-OCP
Form FactorHot-pluggable
ManufacturerChelsio Communications
Product ModelSM25G-LR
Product Name25Gb Optical Module
Application/UsageData Networking
Manufacturer Part NumberSM25G-LR
Manufacturer Website Addresshttp://www.chelsio.com
Marketing InformationChelsio's SM25G-LR 25Gb/s SFP28 long reach transceiver modules are designed for 25 Gigabit Ethernet links over single mode fiber up to 10 km and certified for use with Chelsio's 25 Gigabit Ethernet Unified Wire adapters. The optical module offers a cost-effective and power-efficient network connectivity solution for high-speed data applications.

The Chelsio SM25G-LR optical module is compatible with Chelsio's T6-based Unified Wire adapters. The T6 adapters support PCI Express 3.0 host bus interface and are optimized for storage cloud computing HPC virtualization and other datacenter applications. The sixth-generation T6 ASIC technology from Chelsio provides the highest performance while dramatically lowering host-system CPU and memory overhead with on-board hardware that offloads TCP/IP iSCSI FCoE iWARP RDMA IPsec TLS/SSL DTLS and SMB 3.X crypto processing. As a result the system benefits from higher bandwidth lower latency and reduced power consumption.

Characteristics

Chelsio's SM25G-LR SFP28 transceiver modules are fully compliant with IEEE 802.3ae (10GbE) IEEE 802.3by (25GbE) and IEEE 802.3cc specifications; and adhere to RoHS-6 standards.

The T6 adapters with SM25G-LR transceiver modules enable a unified wire for LAN SAN and cluster traffic. Built upon a combination of high bandwidth and low latency architecture the T6 solution offers a complete set of storage and cluster protocols operating over Ethernet (iSCSI FCoE and iWARP).

T6 solution's port-to-port and adapter-to-adapter failover features are ideal for critical applications that require redundancy and high-availability capabilities. Full Software suite was run with these optical modules and Chelsio recommends using these transceiver modules only with Chelsio adapters to allow the adapter warranty and support structure to remain intact.
Interfaces/Ports Details1 x 25GBase-LR Network
View full details
$73.99 USD
$73.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

Chelsio 25Gb Optical Module - For Data Networking Optical Network - 1 x 25GBase-LR Network - Optical Fiber - Single-mode - 25 Gigabit Ethernet - 25GBase-LR - Hot-pluggable

Manufacturer : Chelsio Communications

Manufacturer Part No : SM25G-LR

Features

  • Hot-pluggable SFP28 footprint
  • 25G Ethernet maximum bit rate
  • Built-in digital diagnostic functions
  • All-metal housing for superior EMI performance
  • Cost-effective and optimized for high-speed datacenter interconnects.

Product Details

Product TypeSFP28
Ethernet Technology25 Gigabit Ethernet
Media Type SupportedOptical Fiber
Brand NameChelsio
Network Technology25GBase-LR
Environmentally FriendlyYes
Environmental CertificationRoHS-6
Fiber Mode SupportedSingle-mode
Total Number of Ports1
Compatibility

Chelsio Wire Adapters:

  • T6225-CR
  • T6425-CR
  • T6225-LL-CR
  • T6225-SO-CR
  • T6225-OCP
Form FactorHot-pluggable
ManufacturerChelsio Communications
Product ModelSM25G-LR
Product Name25Gb Optical Module
Application/UsageData Networking
Manufacturer Part NumberSM25G-LR
Manufacturer Website Addresshttp://www.chelsio.com
Marketing InformationChelsio's SM25G-LR 25Gb/s SFP28 long reach transceiver modules are designed for 25 Gigabit Ethernet links over single mode fiber up to 10 km and certified for use with Chelsio's 25 Gigabit Ethernet Unified Wire adapters. The optical module offers a cost-effective and power-efficient network connectivity solution for high-speed data applications.

The Chelsio SM25G-LR optical module is compatible with Chelsio's T6-based Unified Wire adapters. The T6 adapters support PCI Express 3.0 host bus interface and are optimized for storage cloud computing HPC virtualization and other datacenter applications. The sixth-generation T6 ASIC technology from Chelsio provides the highest performance while dramatically lowering host-system CPU and memory overhead with on-board hardware that offloads TCP/IP iSCSI FCoE iWARP RDMA IPsec TLS/SSL DTLS and SMB 3.X crypto processing. As a result the system benefits from higher bandwidth lower latency and reduced power consumption.

Characteristics

Chelsio's SM25G-LR SFP28 transceiver modules are fully compliant with IEEE 802.3ae (10GbE) IEEE 802.3by (25GbE) and IEEE 802.3cc specifications; and adhere to RoHS-6 standards.

The T6 adapters with SM25G-LR transceiver modules enable a unified wire for LAN SAN and cluster traffic. Built upon a combination of high bandwidth and low latency architecture the T6 solution offers a complete set of storage and cluster protocols operating over Ethernet (iSCSI FCoE and iWARP).

T6 solution's port-to-port and adapter-to-adapter failover features are ideal for critical applications that require redundancy and high-availability capabilities. Full Software suite was run with these optical modules and Chelsio recommends using these transceiver modules only with Chelsio adapters to allow the adapter warranty and support structure to remain intact.
Interfaces/Ports Details1 x 25GBase-LR Network
