Mid Size Flat Panel Displays

Single swing arm solution for mid-size flat panel displays. The MWR-VB provides ultimate flexibility with almost 25" of extension and weight capacity up to 125 lbs.

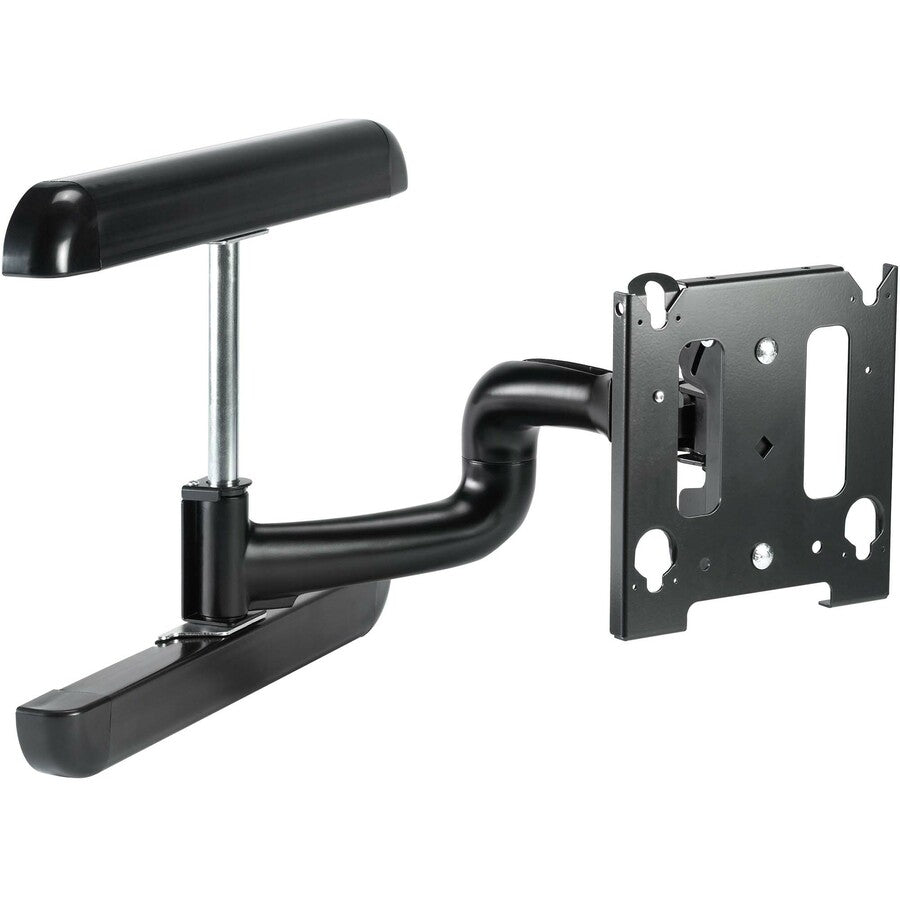

MWR Reaction Single Swing Arm Wall Mount Includes:

• 1 x PNR Wall Mount
• 2 x Cover Plates
• 4 x End Caps
• 1 x Adjustment Wrench
• 12 x Tiewraps
• 1 x Wrench Adjustment
• Bar Adjustment
• 1 x MSB-V with attached Mounting Buttons
• 8 x Phillips Head Cap Screw (M4 X 12mm)
• 8 x Phillips Head Cap Screw M4 X 25mm)
• 4 x Pan Head Screw (M4 X 50mm)
• 8 x Phillips Head Cap Screw (M6 X 12mm)
• 8 x Phillips Head Cap Screw (M5 X 12mm)
• 8 x Phillips Head Cap Screw (M5 X 25mm)
• 8 x Phillips Head Cap Screw (M5 X 30mm)
• 8 x Phillips Head Cap Screw (M5 X 40mm)
• 8 x Phillips Head Cap Screw (M6 X 25mm)
• 8 x Phillips Head Cap Screw (M6 X 30mm)
• 8 x Phillips Head Cap Screw (M6 X 45mm)
• 8 x Nylon Spacer (.750 x .344 x .50)
• 12 x Nylon Spacer (.750 x .187 x .50)
• 4 x Washer Flat M4
• 4 x Shoulder Washer (6mm OD x 4.1 ID x 7mm)
• 4 x Mounting Buttons

• Q-Latch Mounting System simplifies installation
• Integrated lateral shift up to 9"
• G-Force Tilt Technology provides fingertip adjustment from 0 - 15 degrees
• Mounting guides provided for a hassle free installation
• Provides positive latch in home position to keep screen tight to wall
• CableTrac System provides a fast and effective way to route cables
• Depth from Wall: 3-3/8"
• Integrated Lateral Shift: 4-1/2" left/right
• Channel Size Each Arm: 5/8" Wide
